Effon EF02 1D Ring Bluetooth IP65 Barcode Scanner with Zebra SE965

Effon EF02 1D Ring Bluetooth IP65 Barcode Scanner with Zebra SE965 1D scanner

Ring scanner 1D Laser Scanner EF02

Effon EF02 Bluetooth 1D Laser Ring Barcode Scanner is the only industrial IP65 ring scanner suitable for furniture/clothing / logistics ......

Product Type: 1d laser ring scanner
Scan Engine: SE965, supports 1d barcodes
Battery Capacity : Removable 550mAh , switch on / off for battery cover
Industrial Features: IP65, shockproof
Compatibility: Android / IOS / Windows

EF02 1D laser ring barcode scanner with memory connecting with the watchband armband, which is designed for logistics and warehouse management. You can wear it on your finger to free up your hand to handle materials, goods, and packages while scanning, it is very comfortable to wear it in a whole working day and can even improve 25%-30% overall productivity. EF01 ring scanner is a new generation scanner for mobile scanning, picking and sorting application.

With BT 4.0 (BLE) function, the EF02 ring scanner supports Bluetooth HID, SPP (Master/Slave) and BLE connecting, including NFC connection.

Features:

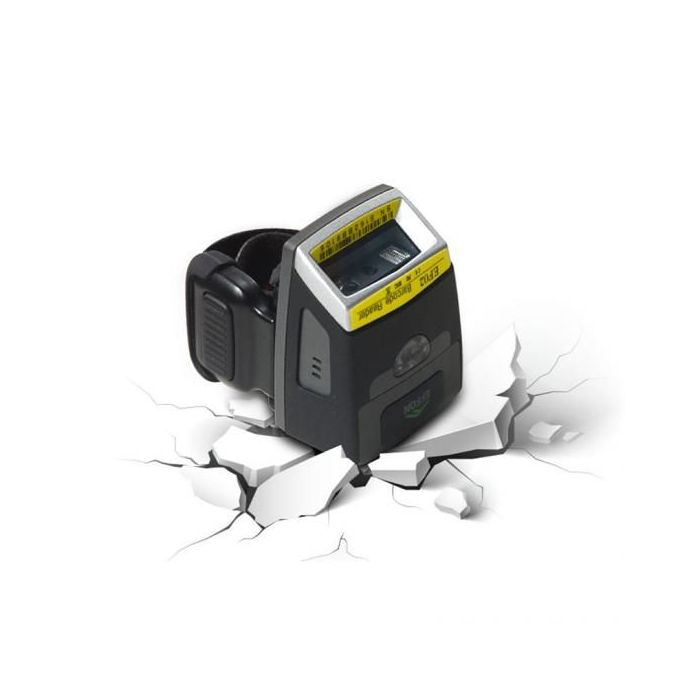

Ruggedness
The rugged design of the EF01 makes any supported mobile device and PC ready to meet the challenges of the most demanding environments. The industrial-grade housing can handle up to 200 drops from 1.5 meters onto concrete. It also withstands at least 15 times Tesla Model3 Rolls

Strong Button

Branding scan button and durable rotation part

Flexible Battery Design
There is a switch off / on for the battery cover, which makes it very convenient to remove the battery.

Battery Capacity
550mAh replaceable battery, supporting more than 11 hours work after full charge; Charging time: about 2 hours.

Optional Charging Cradle
1. Bluetooth adapter & Charging Station

2. Charging Station

Customized one-to-many connectivity
One Bluetooth charging cradle at least allows one PC to connect with at least 5pcs ring scanners

NFC Connection
Just tap for instant pairing: with NFC, workers can simply tap the EF01 on NFC-enabled Android devices. No need to scan a pairing barcode or open Bluetooth settings to identify and select the device.

Customizable Service
Choose from one-finger/two-finger ring or cut resistant glove form factors, as well as resistant glove form factors,
as well as software and hardware redesign options; Standard or Advanced versions available to fit workflow needs.

Technical Parameters

Product name

IP65 Ring Bluetooth Scanner EF02

Dimensions

Length:55.0mm, Width: 39.2mm, Height:51.2mm

Weight

65grams

Electrical

Power: DC5V Typical: 300mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes (Other flash is optional).

Working mode

Bluetooth mode, offline mode and RS232 mode(optional)

Scan mode

Laser

Ambient illumination

Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft
Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Scanner performance

Sensor Type: Laser Diode 650nm
Scanner Angle: ±40°, ±65°,±35°(skew, pitch, Roll)
Scan Rate: 104(±12)scans/sec(bidirectional)
Contrast: ≥25%
Decode Speed:104 scans per second

Battery power

Internal Battery: Rechargeable550mAh Li-ion Battery, Standby 30days, working time after full charge with good decode as below:

Continuous trigger scanning interval	Decoding number	Working time
1S	20000	5.6 hours
5S	7100	9.8 hours
10S	4600	12.8 hours

Charge time: about 2 hours

Barcode Type

1D

UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128,

GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39,

Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code

39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced

Quiet Zone, Discrete 2 of5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix

2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to

UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 , Emulation Mode for

UCC/EAN Composite Codes

Notes : for some special barcodes, it needs setting barcode to turn it on / off

Decoding depth &

Max. Resolution

(1 mil = 0.0254 mm)

Code 39

51mm -162mm (5mil);

Code 128

63mm -127mm (5mil);

PDF417

63mm -160mm (6.6mil);

PDF417

45mm - 228mm (10mil);

100%UPC

50mm -317mm (13mil);

Code 39

50mm - 495mm (20mil);

Data Matrix

38mm - 343mm (20mil);

QR Code

38mm -279mm (20mil)

Communication

Class 3 Bluetooth HID, SPP, BLE(optional) with 30M distance, RS232 cable(optional)

OS

IOS, Android, Windows, Mac

Certificate

CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test (200 times).

Utility Model Patent No.: ZL201420211350.8

Laser safety

IEC60825-1-2007, Class 1

Temperature

Operating: -20°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)

Humidity

5% to 90% (non-condensing)

Accessories

1× EF02

1× 3.7V 15320 Li-ion battery

1× Velcro

1× Silicone Case

1× Charger cable (optional)

Barcode scanner charger & Bluetooth adapter

Product name

Barcode scanner charger & Bluetooth adapter(optional)

Model name

BFP1

Dimensions

72.0mm L × 56.0mm W × 40.3mm H

Weight

50grams

Power

DC:5V/500mA

Charge current

250mA

Interface

1×Type-C (For charge or data transmission):5V DC

2×DC jack(optional): 5V DC

Characteristic

1. It can charge both batteries and machines at the same time.

2. The charger can be multiple connected(optional). (In order to ensure charging efficiency, it is recommended that no more than 5 chargers be connected.)

Adapter Working mod

HID keyboard, Virtual Serial Port, RS-232(optional)

More Information

More Information
Products Model	Effon EF02 1D Ring Bluetooth IP65 Barcode Scanner with Zebra SE965 1D scanner
Barcode scanner	1D scanner
Device type	Wearable
Manufacturer	Effon
