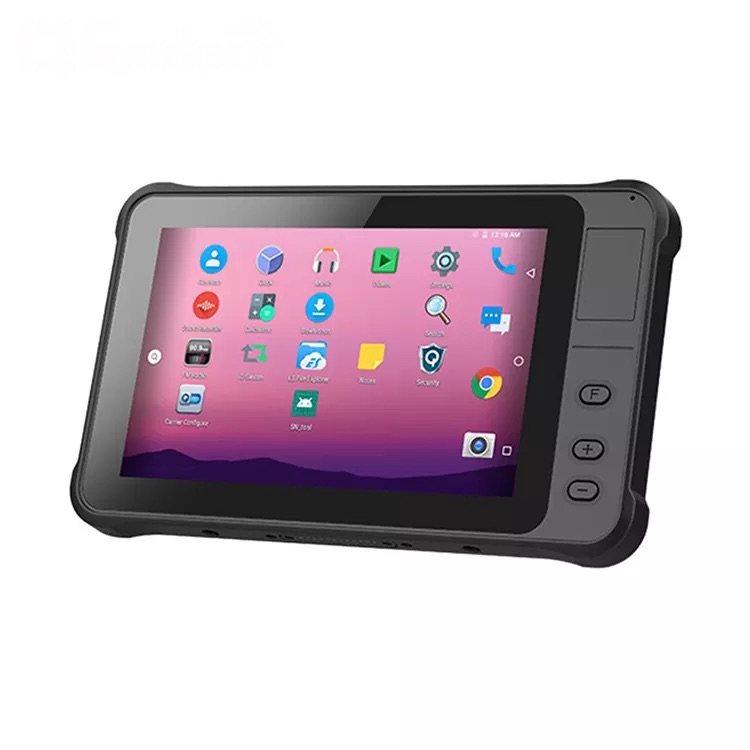

Emdoor EM-Q75 7" screen 4G/WiFi, Android 10 GMS, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC
Emdoor EM-Q75 7" screen 4G/WiFi, Android 10 GMS, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC
|
Dimension
|
217x134x21.4mm
|
|
Weight
|
device unit 680g
|
|
Device Color
|
black
|
|
LCD
|
7 inch IPS 16:10, 800x1280, 1 000nits
|
|
Touch Panel
|
5 point G+G capacitive touch screen Corning Gorilla@ Glass
|
|
Camera
|
Front 5.0MP Rear 13.0MP
|
|
1/0
|
HDMI 1.4a x 1,
|
|
Micro USB 2.0 x 1,
|
|
|
SIM Cardx 1, TF Cardx 1,
|
|
|
12pins Pogo Pinx 1,
|
|
|
Φ3.5mm standard earphone jack x 1,
|
|
|
Φ3.5mmDCjackX1
|
|
|
Power
|
AC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
|
|
CPU
|
Qualcomm(OCTA Core), 2.0GHz
|
|
OS
|
Android 10 GMS
|
|
RAM
|
4GB
|
|
ROM
|
64GB
|
|
Capacity
|
3.7V/ 7500mAh
|
|
Type
|
Built in polymer lithium ion battery
|
|
Endurance
|
7hrs ( 50% volume sounds, 50% brightness,1080P HD video display by default )
|
|
WIFI
|
WiFi 802.11 b/g/n/ac (2 4G+5.8G)
|
|
3G/4G (Optional)
|
CMCC 4M:
|
|
LTE B1/B3/B5/B7/B8/B20/B38/B39/B40/B41 .
|
|
|
WCDMA B1/B2/B5/B8
|
|
|
|
GSM B2/B3/B5/B8
|
|
GNSS
|
Built-in Glonass, Beidou, GPS (Two out of three)
|
|
Operate Temperature
|
-20°C~ 55 °C
|
|
Store Temperature
|
-30°C~ 70°C .
|
|
Humidity
|
95% Non-Condensing
|
|
Rugged Feature
|
IP65 certifhed, MIL- -STD-81 0G certifhed
|
|
Drop Height
|
1.22m
|
|
NFC
|
Built-in
|
|
1D
|
Optional, N4313
|
|
2D
|
Optional, EM80
|
|
UHF
|
Optional, PR9200/M-550 UHF RFID
|
|
ID
|
Optional reading the fngerprint information in the 1st and 2nd ID card
|
|
Fingerprint
|
Optional, Fingerprint collection module for ID card
|
| Products Model | Emdoor EM-Q75 7" screen 4G/WiFi, Android 10 GMS, 4GB+64GB, GPS, IP65 Industrial Rugged Tablet PC |
|---|---|
| Operating system | Android |
| Screen size | 7 inch |
| Manufacturer | Emdoor |
