Generalscan R5521 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE4770/ 600mAh battery *2
Generalscan R5521 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE4770/ 600mAh battery *2
R552X Glove Scanner Series
Apply Ergonomic Fit and Lightweight Material

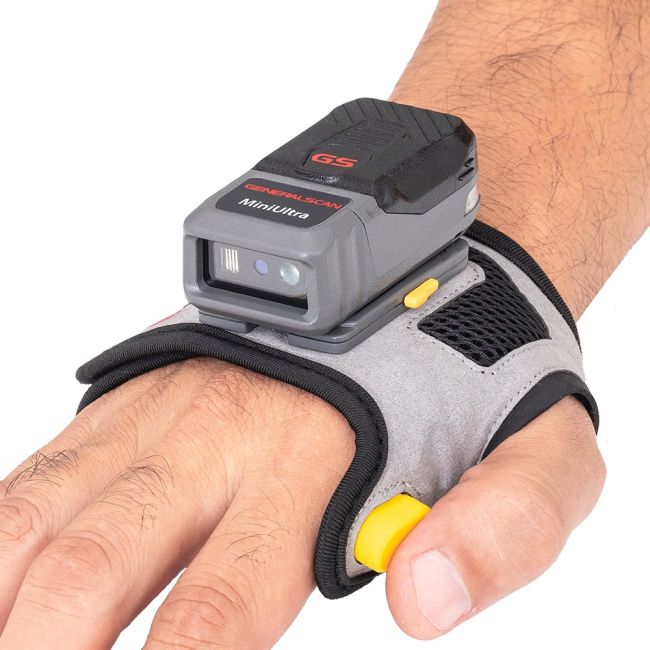

Generalscan Ruglove scanners are designed to fit comfortably on the hand, much like a regular glove. It is available in three sizes and with left and right hand features to accommodate different hand sizes and shapes. Despite being lightweight and flexible, the materials used are also durable to withstand the rigors of industrial or retail environments, combining comfort with the necessary robustness.
R5522 Mid-Range scanner expands the working range even further, to more than 20ft./6m.
With a wide field of view, the R5522 also enables reading of larger bar codes, as well as simultaneous capture of multiple bar codes in milliseconds. Pick list mode enables users to easily select a single bar code to capture on a field of bar codes.
Ease of Putting On and Taking Off
Generalscan Ruglove scanner is designed for ease of use, meaning it can be easily put on and taken off. This is particularly important in jobs where users may need to frequently remove the scanner for breaks or other tasks. Flexibility is key in a glove scanner design. Generalscan Ruglove scanner allows for the natural movement of fingers and the hand, enabling the user to perform tasks without restriction or discomfort.
Specifications for R552X Ruglove Scanner Series
|
R5520 Ruglove Barcode Scanner |
R5521 Ruglove Barcode Scanner |
R5522 Ruglove Barcode Scanner |
R5524 Ruglove Barcode Scanner |
|
|
Dimension |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
70.0mm(L)×36.0mm(W)×26.8mm(D) |
|
Battery Capacity |
600mAh |
600mAh |
600mAh |
600mAh |
|
Weight |
37g(Scanner body) |
37g(Scanner body) |
40.7g(Scanner body) |
37.5g(Scanner body) |
|
Engine |
Zebra SE4710 |
Zebra SE4770 |
SE4750MR |
Zebra SE55 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal 42°, Vertical 28° |
Horizontal 48°, Vertical 30° |
Horizontal 31°, Vertical 23° |
Horizontal 37°, Vertical 21.4° |
|
Charging Time |
100min |
100min |
100min |
100min |
|
Battery Life |
10.25h(scan every 5 seconds) |
9.93h(scan every 5 seconds) |
9h(scan every 5 seconds) |
6.9h(scan every 5 seconds) |
|
Glove Type |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicone: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicon: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
Ruglove-Lycra: one-size-fits-all(adjustable) Ruglove-Silicon: one-size-fits-all(adjustable) Ruglove-MK2(Microfiber): Small(S) Medium(M) Large(L) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.canner9ft./1.5M drops to concrete |
Multiple 4.canner9ft./1.5M drops to concrete |
Multiple 4.canner9ft./1.5M drops to concrete |
Multiple 4.canner9ft./1.5M drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
4mil Code 39 84.0-114.0MM 5mil Code 128 71.0-108.0MM 5mil Code 39 50.8-343.0MM 5mil PDF417 79.0-213.0MM 10mil DataMatrix 74.0-257.0MM 100%UPC-A 46.0-660.0MM 20mil Code39 50.8-762.0MM |
3mil Code 39 76.0-147.0MM 5mil Code 128 58.0-249.0MM 5mil PDF417 76.0-201.0MM 6.67mil PDF417 64.0-257.0MM 10mil DataMatrix 53.0-279.0MM 100%UPC-A 41.0-632.0MM 15mil Code 128 61.0-706.0MM 20mil Code 39 41.0-917.0MM |
5mil Code 128 188.0-406.0MM 5mil PDF417 206.0-333.0MM 7.5mil DataMatrix 211.0-325.0MM 10mil DataMatrix 178.0-432.0MM 13mil UPC-A 58.0-965.0MM 15mil Code 128 102.0-1016.0MM 20mil Code 39 53.0-1372.0MM 100mil Code 39 279.0-4369.0MM 160mil DataMatrix 292.0-3505.0MM 20mil QR Code 71.0-676.0MM |
3mil Code 39 69.0-411.0MM 5mil Code 39 64.0-676.0MM 5mil PDF417 71.0-498.0MM 6.7mil PDF417 66.0-650.0MM 10mil DataMatrix 56.0-688.0MM 100%UPC-A(13mil) 64.0-1800.0MM 15mil Code 128 65.0-2400.0MM 20mil Code 39 100.0-3300.0MM 55mil Code 39 215.0-3900.0MM 100mil Code 39 410.0-4200.0MM 100mil DataMatrix 85.0-7200.0MM |
| Products Model | Generalscan R5521 Ruglove 2D imager Scan Engine Bluetooth Glove Barcode Scanner SE4770/ 600mAh battery *2 |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Bluetooth |
| Manufacturer | Generalscan |
