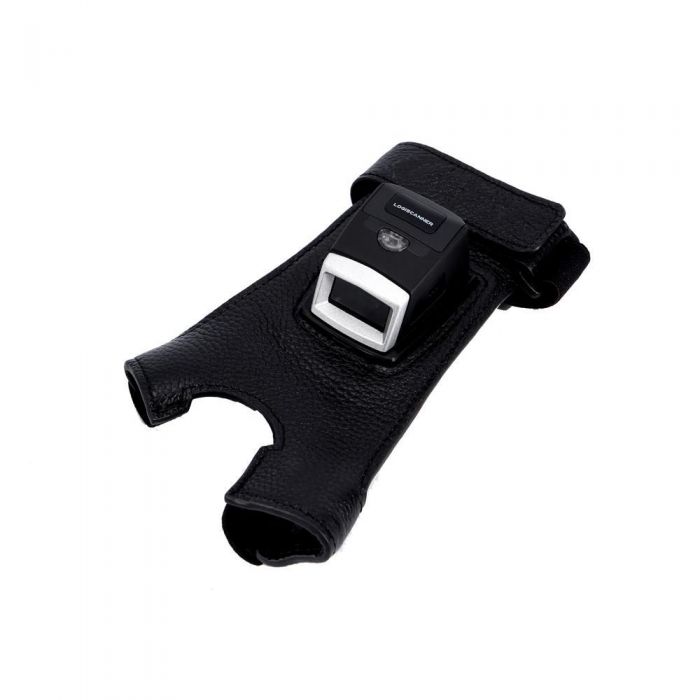

SMP04 2D Laser Glove Scanner with Zebra 4107 scan engine
- Leather glove
- Zebra 4107 scan engine
- Finger trigger glove
- Removable ring scanner
- Built-in 550mAh battery
- Separate charger
SMP04 2D Laser Glove Scanner with zebra scan engine
Finger Trigger Glove Scanner SMP04 With Optional Bluetooth Charging Cradle
SMP04 is the upgrading version of finger trigger glove scanner, more than 10 million scanning button lifespan and comes with a separate charging cradle. The GS02 features and functionality make it mostly suitable for Logistics warehouse / counter picking / automotive industry and so on.
· Less than 40g, very light
· Removable battery supports more than 10 hours work
· PC + TPE material, more rugged
· NFC function can be added, also for Android & IOS & Windows
Product Features:
Excellent Scan Engine
Zebra Scan engine, assures you the most fastest scanning speed, scanning EAN13 / PDF417 / QR codes and so on.
Branding Finger Trigger Button
More than 10 million scanning times lifespan
Removable Industrial Ring Scanner
There is an elastic button for you to remove / install the ring scanner, assures you much convenience to replace it
High Battery Capacity
550mAh replaceable battery, supporting at least 10.4 hours after full charge
Charging Method & Function
1 . Bluetooth Charging Cradle
2 . Charging cradle
Standard Package
Leather Glove & Removable ring scanner
Supporting Offline Upload
In the user manual, just turn on "offline state” to start offline upload.
Compatibility
Three working modes: HID / SPP / USB mode, it can connect with Android & IOS & Windows system.
Optional Mobile Terminal:
Wearable Armband WT01S
Wearable Terminal WT02S
Phone Holder WT05
Wearable Computer WT04
Specifications:
|
Physical characteristics |
|
|
Dimensions: |
180mm x 95mm x 70mm |
|
Weight: |
212g |
|
Voltage\ Current: |
DC5V Typical: 500mA DC5V |
|
Performance characteristics |
|
|
Image: |
640 pixels (H)x 480 pixels (V) |
|
Light Source: |
617 nm LED; illumination |
|
Field of View: |
45° (H) x 35° (V) |
|
Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
|
Battery volume: |
4.2v/2500mAh |
|
Working time: |
Continue to work 18 hours after full charge |
|
Charging time: |
5-6 hours |
|
Wireless technology: |
Bluetooth 4.0 |
|
Operation distance: |
100 meters (open space) |
|
Interfaces Supported: |
USB, RS232 |
|
Symbology Decode Capability |
|
|
1-D: |
UPC-A, UPC-E, UPC-E1, EAN-13(ISBN/ISSN), EAN-8, Code 39(code 32, Trioptic code 39), Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar, Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11, MSI/Plessey, China Post, GS1 DataBar(GS1 DataBar Truncated), GS1 DataBar |
|
2D: |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
|
User Environment |
|
|
Operating Temperature: |
"0°C to 50°C |
|
Storage Temperature: |
"-40°C to 70°C (-40°F to 158°F) |
|
Humidity: |
0% to 95% relative humidity, non-condensing |
|
Shock Specifications: |
Designed to withstand 1.5m(5’) drops |
|
Ambient Light Immunity: |
100.000 Lux. |
|
Certificate: |
CE, Rohs, FCC, 1.2m drop test (500 times), IP42 |
| Products Model | SMP04 2D Laser Glove Scanner with Zebra 4107 scan engine |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Wearable |
| Manufacturer | SMP |
