ACR35 MobileMate audio jack NFC & mag stripe card reader

£62.00
In stock
SKU
ACR35

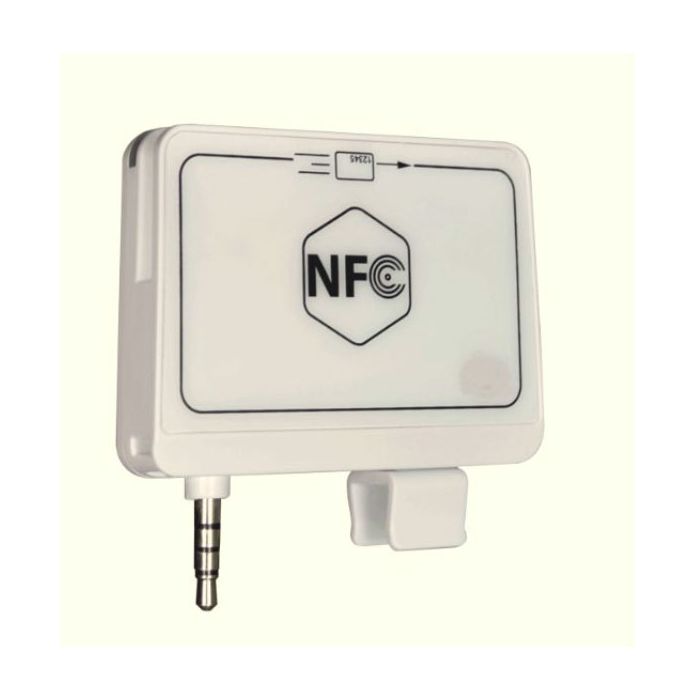

ACS ACR35 NFC MobileMate Audio jack NFC & mag stripe card reader

Overview:

ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.

ACS ACR35 NFC MobileMate Audio jack NFC & mag stripe card reader

Overview:

ACR35 NFC MobileMate Card Reader is the perfect tool that you can use with your mobile device. Combining two card technologies into one, it provides its user the flexibility to use magnetic stripe cards and smart cards without the additional cost.
With a rechargeable Lithium-ion battery and standard 3.5 mm audio jack interface, the ACR35 NFC MobileMate can seamlessly extend the usefulness of any mobile device. It delivers NFC reader functionality and mobility, which allows you to use
NFC and contactless applications, even for mobile readers without built-in NFC functionality.
ACR35 NFC MobileMate uses AES-128 encryption algorithm and DUKPT Key Management system to secure your data.
Portable. Modern. Versatile. Compact. ACR35 NFC MobileaMate is a handy and lightweight card reader that is perfect for users who wish to transact securely while on the go.

Features:

  • 3.5mm Audio Jack Interface
  • Powered by a Lithium-ion battery (rechargeable through PC-linked mode)
  • Smart Card Reader:
  • Built-in antenna for contactless tag access, with reading distance of up to 50mm (depending on tag type)
  • Supports ISO 14443 Part 4 Type A and B cards
  • Supports MIFARE
  • Supports FeliCa
  • Supports ISO 18092 Tags (NFC Tags)*
  • Built-in anti-collision feature
  • NFC Support:
  • Card reader/writer mode
  • Magnetic Stripe Card Reader:
  • Reads up to two tracks of card data (Track 1 / Track 2)
  • Capable of bidirectional reading
  • Supports AES128 encryption algorithm
  • Supports DUKPT Key Management System
  • Supports ISO 7810 / 7811 magnetic cards
  • Supports Hi-Coercivity and Low-Coercivity magnetic cards
  • Support JIS1 and JIS2


Applications:

  • Mobile Banking & Payment
  • e-Healthcare
  • e-Purse & Loyalty


Technical specifications:

Dimensions
60.0mm (L) x 45.0mm (W) x 13.3mm (H)

Interface
3.5mm 4-pole audio jack

Operating Distance
Up to 50mm (depending on the tag type)

Power
Lithium-ion battery (rechargeable through USB)
Supply Voltage 3.2 to 3.7 V DC
Supply Current 85 mA

Operating Temperature
0-50°C

Card Swipe Speed
Max. 10 IPS (inches per second)

Card Swipe Cycles
Min. 500,000

Magnetic Stripe Card Support
ISO7810 / ISO7811 cards
Hi-coercivity and Low-coercivity cards
JIS1 and JIS2 cards

Smart Card Interface Support
ISO 14443 Part 4 Type A and B cards
MIFARE
FeliCa
ISO 18092 Tags (NFC Tags) (except Topaz type)

Compliance/
Certifications
ISO14443, ISO/IEC 18092, CE, FCC, VCCI, RoHS 2, REACH

Operating System Support
Android™ 2.0 and above
iOS 5.0 and above

More Information
Products ModelACR35 MobileMate audio jack NFC & mag stripe card reader
Barcode scannerN/A
Operating systemN/A
Screen sizeN/A
SizeN/A
ManufacturerACS
