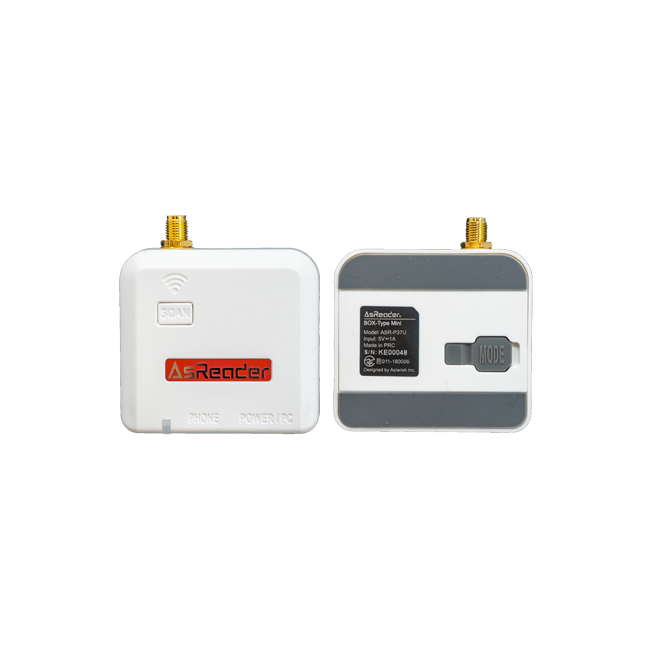

Asreader ASR-P37U DESKTOP-Type UHF RFID Reader/Writer without Antenna for Android, LINUX & Windows
The ASR-P37U serves as an RFID reader/writer when connected to a Windows PC or Android device via USB. It is compatible with any antenna and can be used on a tabletop or mounted on a wall. It features two modes: HID communication, which inputs data directly to the cursor position, and serial communication, which allows writing JAN codes to SGTINs and reading RFID tags with a dedicated SDK.
Asreader ASR-P37U DESKTOP-Type UHF RFID Reader/Writer without Antenna for Android, LINUX & Windows
The ASR-P37U functions as an RFID reader/writer by simply connecting it to your Windows PC or Android device via a USB cable. It is compatible with any suitable antenna and can be used on a tabletop or mounted on a wall using the included fixture.
There are two operating modes available: HID communication and serial communication.
In HID communication mode, you can hold the RFID tag over the PC or Android device, and the data read from the tag will be input directly to the cursor's position on the screen as keyboard input.
In serial communication mode, the RFID writer can not only read RFID tags but also write JAN codes to SGTINs, as long as the application incorporates a dedicated SDK.
Specifications:
| Model | ASR-P37U | |
|---|---|---|
| RFID | Spec | ISO/IEC 18000-63 (Former 18000-6C) / EPCglobal Class 1 Gen 2 |
| Radio frequency | Japan: 920.6 ~ 923.4MHz North America: 917.1 ~ 926.9MHz EU, UK: 865.7 ~ 867.5MHz |
|
| RF output power | Japan: Max 200mW (23dBm) North America: Max 500mW (27dBm) EU, UK: Max 500mW (27dBm) |
|
| External antenna terminal | SMA male | |
| Functions | Read / Write / Lock / Kill | |
| Power Source | USB Type-C port (POWER/PC) Input rating: 5V/0.5A |
|
| Human interface | Trigger button (SCAN) Dip switch (MODE) Beep sound Blue LED Power on: Slow flashing USB connection: Light on Reading RF tags: Fast flashing |
|
| Interface | Communication | USB Type-C port (PHONE) (*1) (USB 2.0) |
| Power and Communication | USB Type-C port (POWER/PC) (*2) (Power input and USB 2.0) |
|
| Appearance | Dimensions (W)x(D)x(H) | 2.0 × 2.2 × 0.6 inches (52 × 56 × 16mm) (*3) |
| Resin material | PC+ABS | |
| Resin color | White | |
| Weight | Approx. 1.4oz (40g) | |
| Environment | Operating | -10 ~ 45˚C, 20 ~ 85%RH |
| Storage | -20 ~ 60˚C, 10 ~ 95%RH | |
| Protection Ratings | IP54 compliant (*3) | |
| Drop resistant | 4.9 feet (1.5m) Twice each on 6-sides and 4-corners (*4) |
|
| Certifications | TELEC | |
| Supported OS | Android, Windows, iOS (*5) | |
| Accessories | USB Type-C to Standard-A cable, Mounting frame | |
*1: For Android device.
*2: For power input and Windows device connection.
*3: The dimensional values do not include the antenna terminal.
*4: These tests were conducted on the device alone.
*5: Only supports the HID mode.
| Products Model | ASR-P37U DESKTOP-Type UHF RFID Reader/Writer without Antenna |
|---|---|
| RFID reader | UHF RFID |
| Device type | USB |
| Manufacturer | Asreader |
