ASR-010D 1D Barcode Scanner w/ LED Line Aimer ASR-010D-V4

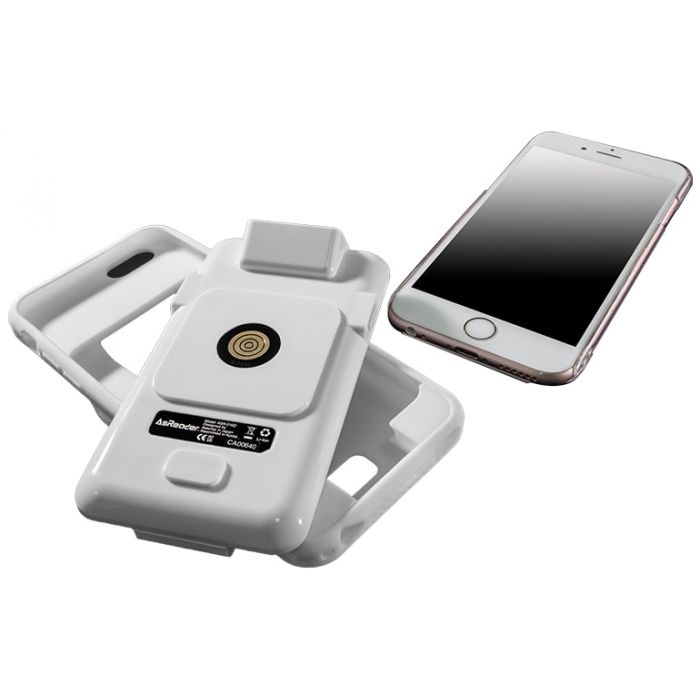

The ASR-010D from the AsReader series is a barcode reader that attaches to iPhone/iPod touch devices. It features a separate structure for the main body and case, compatible with various one-dimensional barcodes like UPC, EAN, JAN, and CODABAR.
ASR-010D 1D Barcode Scanner w/ LED Line Aimer ASR-010D-V4
The ASR-010D is a versatile barcode reader from the AsReader series, specifically designed for seamless attachment to iPhones and iPod touches. Its innovative design features a Lightning connection, ensuring compatibility with various devices while allowing the main body and case to function as separate components for enhanced usability. This powerful barcode scanner supports a wide range of one-dimensional barcode formats, including UPC, EAN, JAN, CODABAR, and ITF. Ideal for businesses seeking an efficient and portable solution for barcode scanning, the ASR-010D combines functionality with convenience, making it an essential tool for retail, inventory management, and logistics. Maximize your productivity with the ASR-010D barcode reader today!
Specifications:
| Model Name | ASR-010D, ASR-010D-V2, ASR-010D-V3, ASR-010D-V4 | |
|---|---|---|
| Barcode | Scan Engine | CCD linear image sensor 1,500Pixel (1D) |
| Minimum Resolution | 0.127mm (5mil) | |
| Reading distance | 70～210mm (2.76"〜8.27")(*1) | |
| Reading angle | Pitch: ±65°, Roll: ±25°, Skew motion: ±50° (*1) | |
| Reading code |
JAN, UPC/EAN, CODE11, CODE39, CODE93, CODE128, ITF(INTERLEAVED 2of5),DISCRETE 2of5, CHINESE 2of5,MATRIX 2of5, CODABAR(NW-7), MSI, GS1 DATABAR OMNIDIRECTIONAL, GS1DATABAR LIMITED, GS1DATABAR EXPANDED |
|
|
Light sources |
RED LED |
|
|
Battery |
Battery Capacity |
Built-in, rechargeable, lithium-ion battery, 3.7V, 700mAh |
|
Continuous operation time |
40,000 scans（*2） |
|
|
Power Source |
Magnetic charging cable（*3） |
|
|
Charging time |
About 2 hours (Built-in battery）(*4) |
|
|
Key input |
2 trigger keys: left, right, or simultaneous |
|
|
Communication |
Interface |
MFi on Lightning (*5) |
|
Appearance |
Dimensions(W)×(D)×(H) |
63.7 × 9.7 × 117.2mm |
|
Weight(with Battery) |
68g (2.3oz) |
|
|
Material |
PC |
|
|
Case color |
White |
|
|
LED |
Non-blinking Blue LED: Connected with device (*6). Blinking Blue LED: Reading Barcode. Non-blinking Red LED: Battery is charging. Faint Red LED: Battery is fully charged |
|
|
Environment |
Operating environment |
-10～45°C (14～113°F), 20～85 % RH（Charge at 0°C (32°F) or more) |
|
Storage environment |
-20～60°C (-4～140°F), 10～95％RH |
|
|
IP Rating |
IP54 compliance |
|
|
Anti-drop |
Drop-tested on all six-sides and all 4 edges, once each, from 1.5m (5ft) (*7) |
|
|
Certificate |
Apple MFi / FCC / CE |
|
|
Requirments |
OS |
iOS14 or later |
|
Bundled items |
Magnetic charging cable / Installation instructions / manual |
|
*1 May depend on barcode type.
*2 Continuous operation time was tested with iPhone's default brightness setting.
*3 Standard iPhone 2A charger is strongly recommended to be used when using Magconn cable.
*4 iPhone and AsReader batteries will charge simultaneously. iPhone and AsReader batteries will be recharged in 3.5 hrs and 2 hrs respectively in simultaneous recharging mode.
*5 SDK is required and available for free download. Please contact us.
*6 Blue LED will turn on after iPhone/iPod is connected. LED will turn off after the reading the first tag.
*7 iPhone screen could be broken, depending on the drop angle.
| Products Model | ASR-010D 1D Barcode Scanner w/ LED Line Aimer ASR-010D-V4 |
|---|---|
| Barcode scanner | 1D scanner |
| Operating system | iOS |
| Manufacturer | Asreader |
