Asreader ASR-020D 2D Barcode Scanner w/ LED Red Dot Aimer ASR-020D-V4
The ASR-020D from the AsReader series is a case-type barcode reader that connects to iPhone/iPod touch devices. It features a separate structure for the main body and case, ensuring compatibility with future Lightning terminals. It supports various one-dimensional and two-dimensional barcodes, including QR Codes, Aztec, RSS, and Composite formats, as well as specific barcodes from the U.S. and U.K.
Asreader ASR-020D 2D Barcode Scanner w/ LED Red Dot Aimer ASR-020D-V4

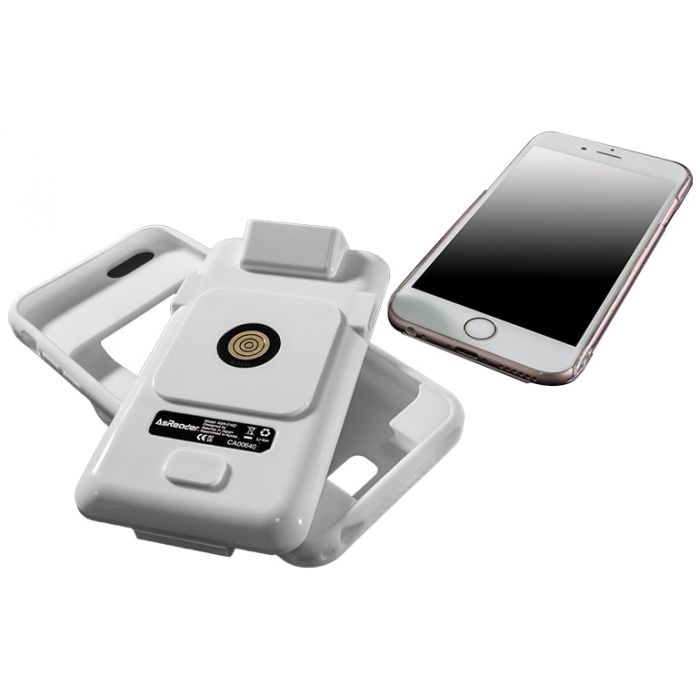

The ASR-020D from the AsReader series is a case-type barcode reader that can be attached to an iPhone or iPod touch. It features a separate structure that divides the main body from the case portion, which allows for compatibility with future devices through a Lightning connection. The reader supports various types of barcodes, including one-dimensional barcodes, two-dimensional barcodes such as QR Codes, Aztec Codes, RSS, and Composite Codes. It is also compatible with barcode formats used in the United States and the United Kingdom.
Specifications:
|
Model Name |
ASR-020D |
ASR-020D-V2/ASR-020D-V3/ASR-020D-V4 |
|
|---|---|---|---|
|
Barcode |
Reading method |
2D CMOS |
|
|
Readable range |
■Barcode density : Reading distance from tip of scanner CODE39 - 4mil : 9 ～ 22cm CODE128 - 5mil : 8 ～ 20cm CODE39 - 5mil : 6 ～ 34cm PDF417 - 5mil : 8 ～ 21cm Datamatrix - 10mil : 8 ～ 25cm 100% UPCA : 5 ～ 65cm Code39 -20mil : 6 ～ 76cm |
||
|
Reading width |
40° (horizontal), 26° (vertical) |
||
|
Reading angle |
Pitch: ±60° Roll: 360° Skew: ±60° (*1) |
||
|
Readable barcodes |
1D: JAN, UPC/EAN, CODE11, CODE39, CODE93, CODE128, ITF(INTERLEAVED 2of5),DISCRETE 2of5, CHINESE 2of5, MATRIX 2of5, CODABAR(NW-7), MSI, GS1 DATABAR OMNIDIRECTIONAL, GS1DATABAR LIMITED, GS1DATABAR EXPENDED 2D: PDF417, MicroPDF417, Datamatrix, QR Code, Micro QR Code, Aztec, RSS, Composite, TLC-39, MaxiCode/Postal: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) |
||
|
Light source |
Red LED |
||
|
Power source |
Battery capacity |
Built-in rechargeable lithium-ion battery (700mAh) |
|
|
Number of scans |
About 34,000 (*2) |
About 28,000 (*3) |
|
|
Charging method |
Magnetic charging cable (*4) |
||
|
Charging time |
Approx. 2 hours (built-in battery)(*5) |
||
|
Key input |
2 trigger key |
||
|
Communication |
Interface |
MFi on Lightning(SDK) (*6) |
MFi on Lightning(SDK or HID) (*7) |
|
Appearance |
Dimensions (W)x(D)x(H) |
63.65 * 9.7 * 117.19 mm (2.51 * 0.38 * 4.61 inch) (*8) |
|
|
Weight (with battery) |
Approx. 70g |
||
|
Material |
PC |
||
|
Casing color |
White |
||
|
LED display |
Blue LED: Connected with device Blinking Blue LED: Reading Red LED: Battery is charging Faint Red LED: Battery is fully charged |
||
|
Environment |
Operating temperature |
-10～45 C, 20～85 % RH (Charge at 0 C or more, however) |
|
|
Storage temperature |
-20～60 C, 10～95 % RH |
||
|
IP rating |
IP54 compliant |
||
|
Anti-drop |
(Six-sided * 4 edge, once each) 1.5 m (59.06 inch) (*9) |
||
|
Certificate |
Apple MFi / FCC / CE / RoHS |
||
|
Requirments |
OS |
iOS14 or later |
|
|
Bundled items |
Magnetic charging cable |
||
※1 Varies depending on barcode type
※2 Number of times when the BEEP sound, vibration and illumination are all set to ON.
※3 Number of times when the BEEP sound, vibration and illumination are all set to ON. The decoder CPU has been changed (dual core → quad core) from ASR-020D. This allows ASR-020D-V2/ASR-020D-V3/ASR-020D-V4 higher reading accuracy. While, the battery retention time is shortened due to increased standby current.
※4 Standard iPhone® 2A charger is recommendd for the magnetic charging cable.
※5 iPhone® and AsReader battery will be recharged simultaneously. iPhone® and AsReader battery will be recharged in 3.5h and 2h respectively in simultaneous recharging mode.
※6 A specialised SDK for communication via Lightning is available for download.
※7 A specialised SDK for communication via Lightning is available for download. SDK is unnecessary when using AsReader in HID mode.
※8 Excluding protrusions
| Products Model | Asreader ASR-020D 2D Barcode Scanner w/ LED Red Dot Aimer ASR-020D-V4 |
|---|---|
| Barcode scanner | 2D scanner |
| Operating system | iOS |
| Manufacturer | Asreader |
