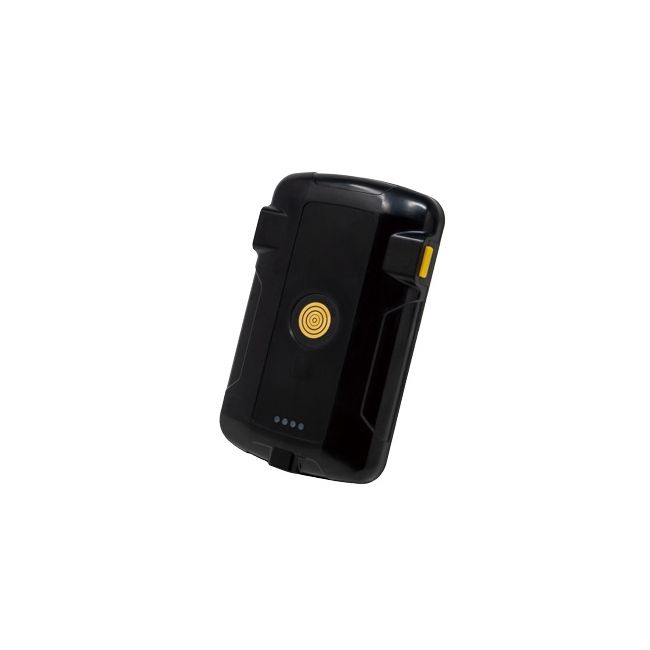

Asreader ASR-L70D AsLock LF RFID Reader
The RFID reader-writer represents a cutting-edge approach to individual identification solutions for livestock, tailored for the demands of modern agricultural practices. This innovative technology facilitates the meticulous management of identification data through specialized ear tags—RF tags precisely engineered for the unique requirements of individual cattle and various other livestock species.
With this sophisticated system in place, producers can provide comprehensive traceability information that instills confidence in consumers regarding the source of their food. This traceability enhances consumer trust and plays a crucial role in ensuring food safety standards are met. Additionally, the system supports producers in effective livestock management by enabling the systematic collection and analysis of vital information, including feeding records, health assessments, and breeding histories. This data-driven approach leads to improved productivity, animal welfare, and overall operational efficiency.
Our RF tags conform to both ISO 18000-2 and ISO 11785 standards, guaranteeing optimal quality and reliability for users. The system also utilizes the FDX (Full Duplex) communication method, which ensures seamless and efficient data transfer between the tags and the reader-writer. This powerful solution equips modern livestock operations with the necessary tools to enhance traceability, optimize management practices, and drive sustainable agricultural development.
Specifications:
| Model | ASR-L70D | |
|---|---|---|
| RFID | Spec | ISO 11784/11785, FDX-B |
| Bandwidth | 134.2 kHz | |
| Reading distance | ～10cm (～4 inches) ※1 | |
| Functions | Read | |
| Power source | Battery capacity | Rechargeable lithium-ion battery, 700mAh |
| Uninterrupted reading times | Appr. 60,000 times ※2 | |
| Charging method | Magnetic charging cable ※3 | |
| Charging time | Appr. 2h (built-in battery) ※4 | |
| Key input | 2 trigger keys | |
| Port | USB-C port for accessories | |
| Communication | Interface | MFi on Lightning (※5) |
| Appearance | Dimensions (W)x(D)x(H) | 68 x 12.5 x 108 mm (2.68 x 0.49 x 4.25 inches) ※6 |
| Weight (with battery) | Appr. 70g (2.5oz) | |
| Material | PC (Polycarbonate) | |
| Case color | Black | |
| Display LED | Battery level; Charging | |
| Environment | Working environment | -10~45°C (14~113°F), 20~85 % RH. Charing requires 0°C~40°C (32~104°F) |
| Storage environment | -20~60°C ( -4~140°F), 10~95 % RH (for 1 month) | |
| IP Rating | IP67 compliant | |
| Drop-tested | To six-sides and four-corners, once each, from 1.5m (5 feet) ※7 | |
| Certifications | TELEC/Apple MFi/FCC/CE/RoHS | |
| Requirments | OS | iOS14 or later |
※1 Varies depending on the type of RF tags, environment and operating circumstances.
※2 Number of times by using our Demo app with the beeping sound and vibration are set to ON.
※3 Standard iPhone® 5V/1A charger is recommended for use with the magnetic charging cable.
※4 iOS device and AsReader battery will be recharged simultaneously if the iOS device is connected to the AsReader.
※5 A royalty-free specialized SDK for communication via the lightning port (AsLOCK) is available for download.
※6 Excluding protrusions
※7 The iOS device's screen may break depending on the drop angle.
| Products Model | ASR-L70D AsLock LF RFID Reader |
|---|---|
| RFID reader | LF |
| Device type | PDA sled |
| Operating system | iOS |
| Manufacturer | Asreader |
