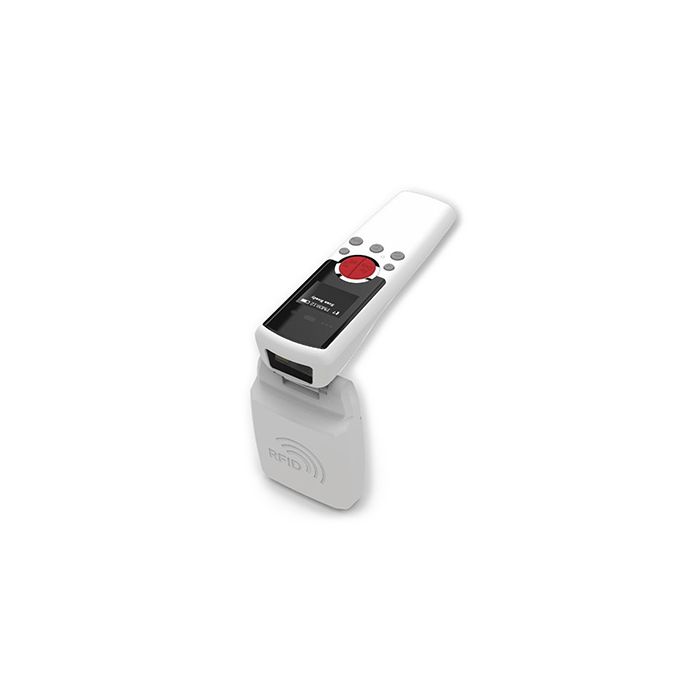

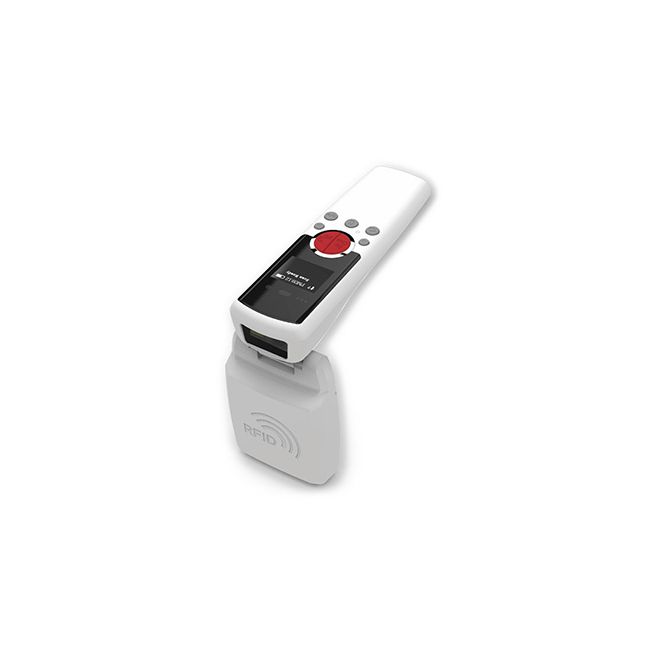

ATID AT388 UHF RFID reader, Bluetooth handheld reader
– UHF EPC Gen2, ISO / IEC 18000-6C
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Foldable Antenna for your usage
– Dropspec 1.5m (5ft)
– IP65
ATID AT388 UHF RFID reader, Bluetooth handheld reader
The AT388 is a handheld UHF RFID reader supporting Windows, Android and iOS (BE only) devices for use in warehousing and retail enviroments enabling the used to read/write RFID tags.
Highlights:
– UHF EPC Gen2, ISO / IEC 18000-6C
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Ergonomic Design
– Foldable Antenna for your usage
– Dropspec 1.5m (5ft)
– IP65
Specifications:
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| Internal Storage | 1MByte Flash Memory |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
50 x 164 x 30 (54)mm |
| Weight | 210g (without Battery) |
| Power | 3,200mAh Li-ion Battery (18650) |
| Display | 1.3 inch OLED Display |
| USB Interface | 1 USB Port / Micro USB |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~6m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Circular Antenna (1 dBi)
Support Frequency (Optional) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non-condensing) |
| Drop Specification | 1.5m |
| Dust & Water Proof | IP65 |
Accessories:
 |
Adaptor (Optional) Support 5V/3A |
|
Hand Strap Hand Strap adds protection against accidental drops |
|
Battery 3,200mAh Li-ion Battery (18650) |
|
USB Cable Micro USB Cable |
|
RJ 9 to USB Cable (Optional) |
|
Gender (Optional) |
| Products Model | ATID AT388 UHF RFID reader, Bluetooth handheld reader |
|---|---|
| RFID reader | UHF RFID |
| Device type | Bluetooth |
| Manufacturer | ATID |
