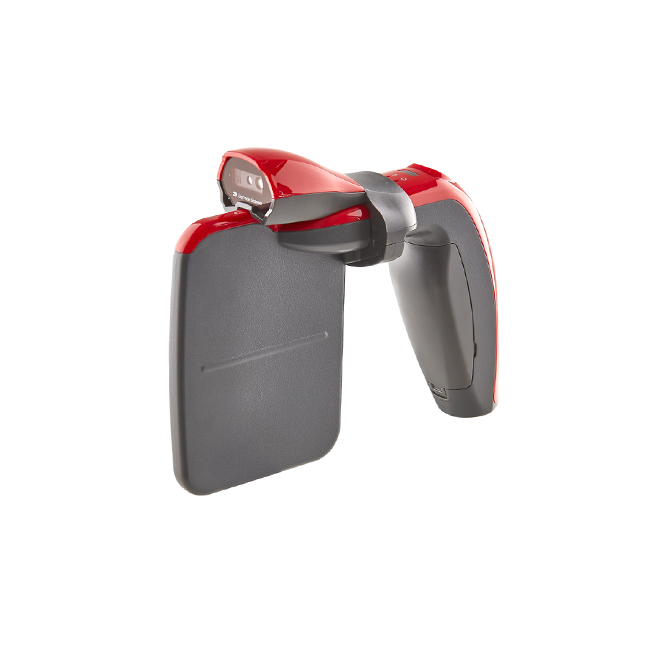

ATID RF-PRISMA UHF RFID reader, gun-type pistol grip Bluetooth reader

Details

ATID RF-PRISMA 2D barcode scanner, UHF RFID reader, gun-type pistol grip Bluetooth reader

The RF-PRISMA s a gun-style pistol grip handheld Bluetooth UHF RFID reader supporting Windows, Android and iOS (BE only) devices for use in warehousing and retail enviroments enabling the used to read/write RFID tags.

– UHF EPC Gen2, ISO / IEC 18000-6C
– BT V2.1 + EDR / BLE V4.1
– Compatible with Windows, Android & iOS Host
– Vivid Red, Curved Design
– Linear Antenna for Longer Reading Range

Specifications:

PERFORMANCE CHARACTERISTICS
Processor	ARM7 Core
Supported Platforms	Windows, Android, iOS (BLE Only)
Internal Storage	1MByte Flash Memory
PHYSICAL CHARACTERISTICS
Dimensions (W x L x H)	171 x 117 x 40 mm
Weight	230g
Power	2,600mAh Li-ion Battery
USB Interface	1 USB Port / Micro USB
Notification	LED Indication, Buzzer
DATA CAPTURE
RFID (UHF)	Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~7m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Linear Antenna (4 dBi) Support Frequency (Optional) US/FCC : 902~928MHz EU/CE : 865~868MHz KR/KC : 917~921MHz JP/TELEC : 916~921MHz(1W) / 916~924MHz(0.25W)
WIRELESS COMMUNICATION
Bluetooth	BT V2.1 + EDR (MFi Certified)
USER ENVIRONMENT
Operating temperature	-10℃ to 45℃
Storage temperature	-30℃ to 60℃
Humidity	5~95% (non-condensing)
Drop Specification	1.2m

Accessories:

	Smartphone Holder Smartphone Holder for attaching Smartphone
	Battery Pack 2,600mAh Li-ion Battery Pack
	Adaptor Support 5V/3A
	USB Cable Micro USB Cable
	Hand Strap Hand Strap adds protection against accidental drops
