Audio jack HF RFID 15693 reader for Android and iOS

Audio jack HF RFID 15693 portable reader for Android and iOS

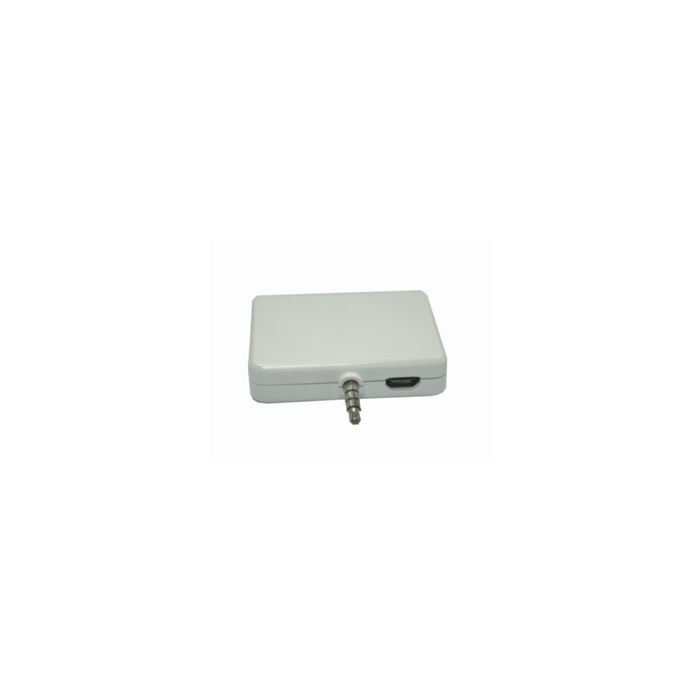

The Audio jack HF RFID 15693 portable reader is a portable mini reader for Android and iOS MobilePOS and tablet PC devices via the 3.5mm headphone jack. The reader has the features: easily plug and use, light, small size, low power consumption, built-in rechargeable battery, convenient to take, suitable for anti-tamper terminal interrogator usage, navigation equipment and other excursions.

 Parameter specifications：

1） Support HF label protocol ISO15693.

2） Support android and other intelligent system platforms.

3）Communication interface: 3.5mm audio interface ( common headphone jack).

4）Read distance: 22mm ( depend on tag size)

5）Work time: continuous 7 hours, query over 3 000 times.

6）Material: ABS+PC engineer plastic.

7）Size: 39mm*30mm*11mm

8）Weight：12g

9）Battery capacity: Lithium battery 130mA, can be recharged.

10）Charge method: USB 5V/0.5A，charge time is about 30 minutes.

11） Work environment temperature: -20℃~60℃

12）Indicator light states:

① normal work: green light maintain light.

② Read tag ID: green light flashes.

③ Read tag block data: green light flashes.

④ Equipment malfunction: light does not shine.

⑤ Low power: green light has been slow blink ( low power alarm, please charge as soon as possible)

⑥ Ultra low power: green light always flash rapidly ( low power can’t use, can’t read card.)

⑦ In charge: long red light.

⑧ Charge electricity finished: long green light .
