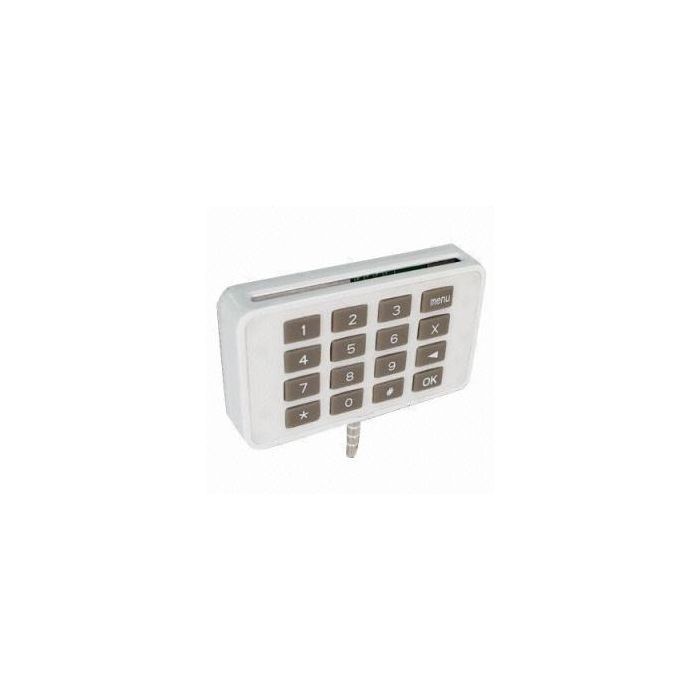

Audio jack smart card reader with PIN pad
The audio jack smart card reader with PIN pad is the perfect mobile POS solution for Android and iOS smartphones for mobile payment applications. Integrate the device SDK software utility into your mobile application for mobile chip and PIN credit card transactions, offering the highest level of security when taking payments via your smartphone or tablet PC device.
Audio jack smart card reader with PIN pad
The audio jack smart card reader with PIN pad is the perfect mobile POS solution for Android and iOS smartphones for mobile payment applications. Integrate the device SDK software utility into your mobile application for mobile chip and PIN credit card transactions, offering the highest level of security when taking payments via your smartphone or tablet PC device.
The device is PCI compliant but must be submitted for certification when the device has been integrated into a payment application and payment gateway provider to conform with full testing requirements.
Features
Specification
Items |
Description |
Standards |
ISO7816 T=0,T=1, EMV4.x L1, L2,PBOC2.0 |
PIN Pad |
1. 16 Keys ( 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, *, #, , , , and Function> ) 2. Purpose: Enter pin code 3. Reader will encrypt pin code before transmitting. 4. Encryption options: None/ DES/3DES/ DUKPT |
Life time of ICC Acceptor |
Approx 200,000 times of insertion |
Power Input |
Operating 3.3V DC, MAX. 13mA and less then 0.1mA when Idle (Work in 3V cards) |
Rechargeable Li-Ion Battery |
3.7V / 350mAh
|
Interface |
3.5 mm audio jack/plug with 4 signal contacts- left earphone, right earphone, ground and microphone |
Operating System & SDK support |
iOS, Android |
Operation Temperature |
-10 ~ 50°c |
Dimension |
67 x 40 x 15 mm |
| Products Model | Audio jack smart card reader with PIN pad with EMV L1 and L2 |
|---|---|
| Manufacturer | SMP |
