Generalscan GS R1120 Thummbutton 1D Laser Scan Engine Thumbutton Barcode Scanner SE965/ 600mAh Battery *1
Generalscan GS R1120 Thummbutton 1D Laser Scan Engine Thumbutton Barcode Scanner SE965/ 600mAh Battery *1

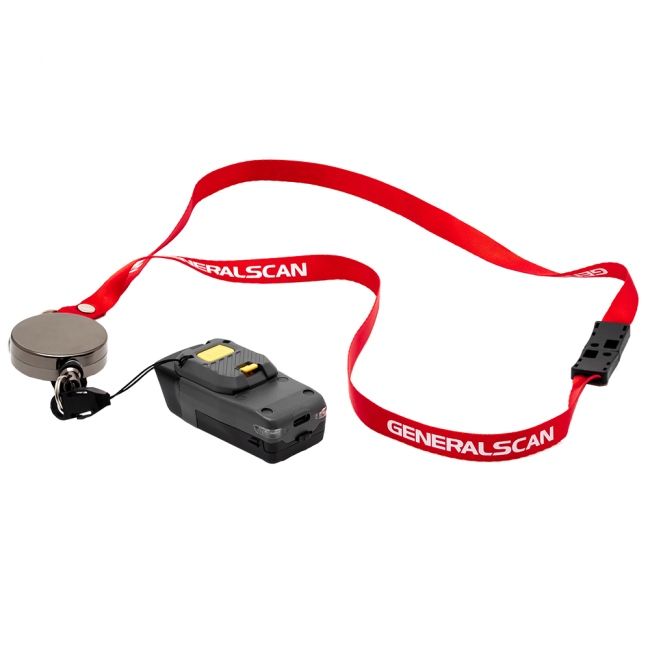

R1120 Thumbutton Scanner
Specifications for R1120 Thumbutton Scanner
|
R1120 Thumbutton Barcode Scanner |
Dimension |
75.1mm(L)×34.7mm(W)×25.2mm(D) |
Battery Capacity |
600mAh |
Weight |
33g(Scanner body) |
Engine |
Zebra SE965HP |
Sensor |
Laser |
Skew, Pitch & Roll |
Skew tolerance: ±40° from normal Pitch tolerance: ±65° from normal Roll tolerance: ±35° from vertical |
Field of view |
47° Wide, 10° Medium, 10° Narrow |
Charging Time |
120min |
Battery Life |
15.4h (scan every 5 seconds) |
Bluetooth Profiles |
HID Keyboard, SPP and Bluetooth low energy (BLE) |
USB Interface |
USB Type-C |
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
Decode Range |
5mil Code128 30.5-195.6MM 5mil Code39 30.5-317.5MM 7.5mil Code39 27.9-469.9MM 10mil Code128 30.5-482.6MM 100% UPCA 40.6-685.8MM 15mil Code128 25.4-749.3MM 20mil Code39 35.6-1320.8MM 55mil Code39 86.4-2540MM 100mil Code39 609.9-5181.6MM |
Products Model | Generalscan GS R1120 Thummbutton 1D Laser Scan Engine Thumbutton Barcode Scanner SE965/ 600mAh Battery *1 |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Generalscan |
