Generalscan R5521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4770/ 600mAh Battery *2

Details

Generalscan R5521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4770/ 600mAh Battery *2

R552X Thumbutton Scanner Series

Whether the barcode is in hand or over 40ft./12.2m away, R5524 can capture it!

R5524 features a green laser aimer that’s up to 7x more visible than red, even in bright sunlight, and Zebra’s PRZM Intelligent Imaging Technology to deliver first-time-every, time decoding. With adjustable illumination and intelligent autofocus, users do not have to sacrifice scanning speed for

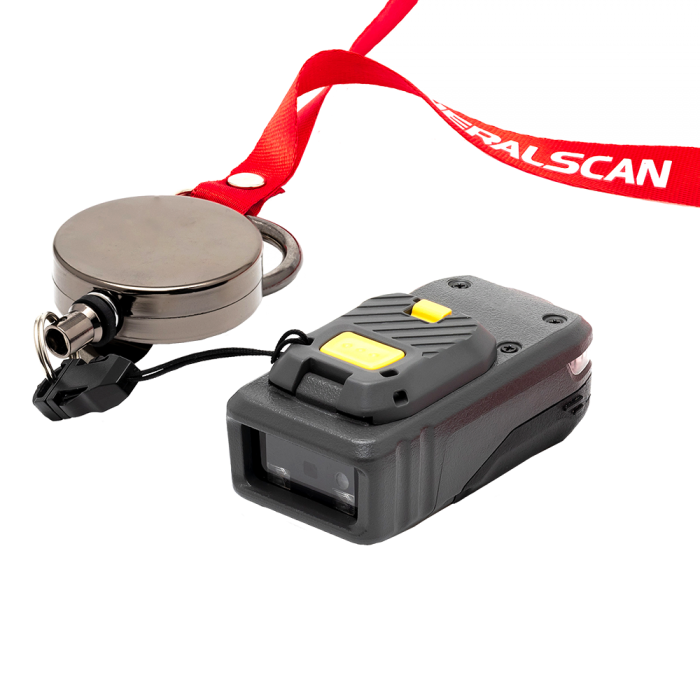

Reduced Risk of Dropping or Misplacing

The lanyard and stainless steel retractor mechanism ensures that the scanner is securely attached and retracted back after use. This significantly reduces the risk of the scanner being dropped or misplaced, which is particularly important in fast-paced work application.The lanyard have safety features to prevent injury or accidents, such as a breakaway connector in case the scanner gets caught or entangled.

R5522 Mid-Range scanner expands the working range even further, to more than 20ft./6m.

With a wide field of view, the R5522 also enables reading of larger bar codes, as well as simultaneous capture of multiple bar codes in milliseconds. Pick list mode enables users to easily select a single bar code to capture on a field of bar codes.

Increased Mobility and Flexibility By Landyard and Retractor

The lanyard and stainless steel retractor allow the scanner to be extended for use and then easily retracted back into its resting position. This feature provides rapid access to the scanner when needed, enhancing workflow efficiency and reduces the risk of the scanner being dropped or misplaced, which is particularly important in fast-paced work settings.

Specifications for R552X Thumbutton Scanner Series

	R5520 Thumbutton Barcode Scanner	R5521 Thumbutton Barcode Scanner	R5522 Thumbutton Barcode Scanner	R5523 Thumbutton Barcode Scanner	R5524 Thumbutton Barcode Scanner
Dimension	70.0mm(L)×36.0mm(W)×26.8mm(D)	70.0mm(L)×36.0mm(W)×26.8mm(D)	70.0mm(L)×36.0mm(W)×26.8mm(D)	70.0mm(L)×36.0mm(W)×26.8mm(D)	70.0mm(L)×36.0mm(W)×26.8mm(D)
Battery Capacity	600mAh	600mAh	600mAh	600mAh	600mAh
Weight	37g(Scanner body)	37g(Scanner body)	40.7g(Scanner body)	38.7g(Scanner body)	37.5g(Scanner body)
Engine	Zebra SE4710	Zebra SE4770	SE4750MR	Honeywell N6803	Zebra SE55
Sensor	2D CMOS Image	2D CMOS Image	2D CMOS Image	2D CMOS Image	2D CMOS Image
Skew, Pitch & Roll	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal	Skew tolerance: ±60° from normal Pitch tolerance: ±60° from normal Roll tolerance: 360° from normal
Field of view	Horizontal 42°, Vertical 28°	Horizontal 48°, Vertical 30°	Horizontal 31°, Vertical 23°	Near: Horizontal 48°, Vertical 21° Far: Horizontal 20°, Vertical 12°	Horizontal 37°, Vertical 21.4°
Charging Time	120min	120min	120min	120min	120min
Battery Life	10.25h(scan every 5 seconds)	9.93h(scan every 5 seconds)	9h(scan every 5 seconds)	8h(scan every 5 seconds)	6.9h(scan every 5 seconds, 10cm reading) 4h(scan every 5 seconds, 1m reading)
Bluetooth Profiles	HID Keyboard, SPP, and Bluetooth low energy(BLE)	HID Keyboard, SPP, and Bluetooth low energy(BLE)	HID Keyboard, SPP, and Bluetooth low energy(BLE)	HID Keyboard, SPP, and Bluetooth low energy(BLE)	HID Keyboard, SPP, and Bluetooth low energy(BLE)
USB Interface	USB Type-C	USB Type-C	USB Type-C	USB Type-C	USB Type-C
USB Profiles	USB HID Keyboard, USB VCP (Virtual Serial Port)	USB HID Keyboard, USB VCP (Virtual Serial Port)	USB HID Keyboard, USB VCP (Virtual Serial Port)	USB HID Keyboard, USB VCP (Virtual Serial Port)	USB HID Keyboard, USB VCP (Virtual Serial Port)
Drop Spec.	Multiple 4.9ft./1.5m drops to concrete	Multiple 4.9ft./1.5m drops to concrete	Multiple 4.9ft./1.5m drops to concrete	Multiple 4.9ft./1.5m drops to concrete	Multiple 4.9ft./1.5m drops to concrete
Tumble Spec.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.	Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute.
Electrostatic Discharge (ESD)	±8kVdc contact discharge; ±15kVdc air discharge	±8kVdc contact discharge; ±15kVdc air discharge	±8kVdc contact discharge; ±15kVdc air discharge	±8kVdc contact discharge; ±15kVdc air discharge	±8kVdc contact discharge; ±15kVdc air discharge
Certification	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC	CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC
Decode Range	4mil Code 39 84.0-114.0MM 5mil Code 128 71.0-108.0MM 5mil Code 39 50.8-343.0MM 5mil PDF417 79.0-213.0MM 10mil DataMatrix 74.0-257.0MM 100%UPC-A 46.0-660.0MM 20mil Code39 50.8-762.0MM	3mil Code 39 76.0-147.0MM 5mil Code 128 58.0-249.0MM 5mil PDF417 76.0-201.0MM 6.67mil PDF417 64.0-257.0MM 10mil DataMatrix 53.0-279.0MM 100%UPC-A 41.0-632.0MM 15mil Code 128 61.0-706.0MM 20mil Code 39 41.0-917.0MM	5mil Code 128 188.0-406.0MM 5mil PDF417 206.0-333.0MM 7.5mil DataMatrix 211.0-325.0MM 10mil DataMatrix 178.0-432.0MM 13mil UPC-A 58.0-965.0MM 15mil Code 128 102.0-1016.0MM 20mil Code 39 53.0-1372.0MM 100mil Code 39 279.0-4369.0MM 160mil DataMatrix 292.0-3505.0MM 20mil QR Code 71.0-676.0MM	5mil Code 39 137 - 396MM 7mil PDF 137 - 415MM 10mil Code 128 90 - 1399MM 10mil QR Code 128 - 412MM 13mil UPC 68 - 1690MM 20mil Code 88 - 2848MM 55mil Code 39 ---- - 5912MM 100mil Code39 ---- - 9849MM

More Information

More Information
Products Model	Generalscan R5521 Thumbutton 2D imager Scan Engine Thumbutton Barcode Scanner SE4770/ 600mAh Battery *2
Barcode scanner	2D scanner
Manufacturer	Generalscan
