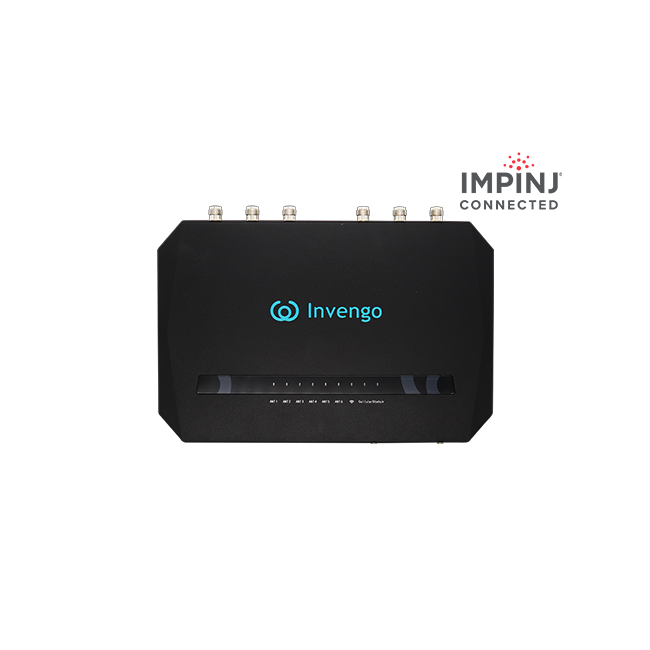

Imvengo XC-RF868 Fixed Reader
$2,824.70 $2,353.92
In stock
SKU
XC-RF868
Invengo's XC-RF868 loT Smart Reader adopts excellent architecture design and powerful reading and writing algorithm. It equips with Impinj R2000 chip and supports 6-channel RF ports. The reader is available to match various specifications of antennas and has excellent reading and writing performance.
Imvengo XC-RF868 Fixed Reader
Invengo's XC-RF868 loT Smart Reader adopts excellent architecture design and powerful reading and writing algorithm. It equips with Impinj R2000 chip and supports 6-channel RF ports. The reader is available to match various specifications of antennas and has excellent reading and writing performance.
Main Features of XC-RF868 Fixed Reader
-
6 antenna ports
-
-85dBm receiving sensitivity
-
Edge computing with built-in operating system
-
High speed reading: up to 1000 labels in 5 seconds
-
Reader management web interface Support PoE+ supply
Specifications of XC-RF868 Fixed Reader
| Hardware and Operating System | Processor | Quad-core Cortex-A53, 1.3GHz |
| Memory | 3GB, 16GB FLASH | |
| Operating | Linux/Android OS | |
| Chip | Impinj R2000 | |
| RFID Parameters | Agreement | EPCglobal UHF Class1 Gen2 |
| Transmit power |
11~33dBm (1dBm step), up to 30dB- m(Under PoE+ charging) |
|
| Frequency range |
CN: 920.625MHz ~ 924.375MHz FCC: 902.75MHz ~ 927.25MHz EU: 865.7MHz ~ 867.5MHz |
|
| Read rate | Maximum 1000 times/second | |
| Multi-label reading | Maximum 1000 sheets/5 seconds | |
| Reading distance | 0~30m | |
| Writing distance | 0~15m | |
| Maximum receiving | -85dBm | |
| sensitivity | ||
| Antenna Impedance | 50ohm | |
| Interface Parameters | Ethernet: | 10/100/1000M Ethernet (RJ45) |
| Antenna | 6 TNC interfaces | |
| USB | 2 USB3.0 TYPE-A, 1 USB3.0 TYPE-C | |
| HDMI | Support | |
| GPIO |
4 isolated inputs and 4 isolated outputs |
|
| Wi-Fi | Support | |
| 4G/5G (optional): | Support | |
| Power supply mode | DC24V power adapter/PoE+ | |
| Physical Parameters | Dimension | 259.7mm × 170.8mm × 32mm |
| Weight | 1.6 kg | |
| Shell material | Die-cast aluminum alloy | |
| Protection level | IP50 | |
| Environmental Parameters | Operating temperature | -25℃ ~ +70℃ |
| Storage humidity | -40℃ ~ +85℃ | |
| Working humidity | 5%RH ~ 95%RH (non-condensing) |
| Products Model | XC-RF868 Fixed Reader |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Invengo |
