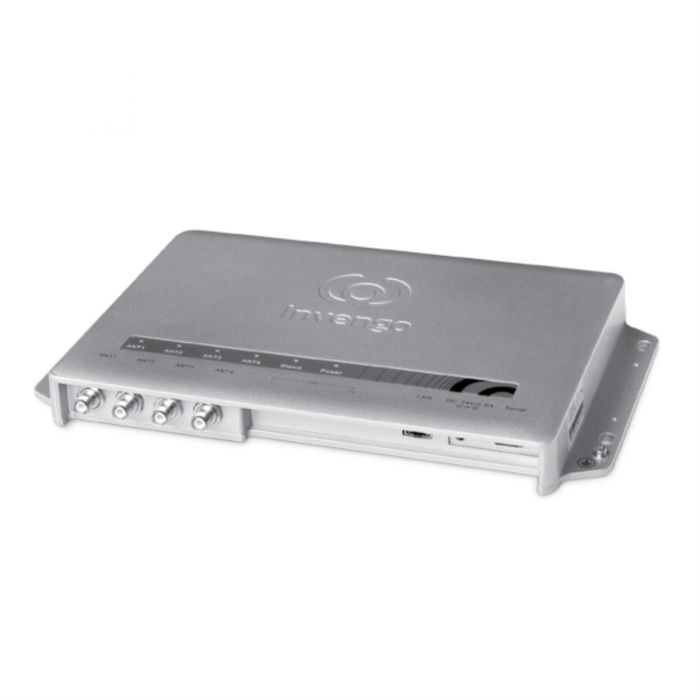

Invengo XC-RF807 Fixed Reader
Invengo's XC-RF807 RAN RFID (UHF) fixed reader is a high performance, wide band device supporting the lSO 18000-63and ISO 18000-61 specifications(EPCglobal Class 1 Gen 2 protocol). The Dual CPU design, coupled with a Linux operating system, handles the most complex business requirements of our customers. Great reading performance, rugged design, and optional Power over Ethernet combine to make this a solid solution.
Main Features of XC-RF807 Fixed Reader
Four RP-TNC RF Antenna Ports
Excellent multi-tag reading performance
TCP/IP and RS-232 Communication
GPIO Capability
API: Java, .NET, C++
PoE: IEEE 802.3at
IP 54 Protection
Specifications of XC-RF807 Fixed Reader
| Physical Parameters | Dimensions |
360 mm x 220 mm x 39 mm (14.17 in x 8.66 in x 1.54 in) |
| Weight | 2.5 kg (5.5 lb) | |
| Case Material | Aluminum Alloy | |
| Environmental | Operating Temperature | -20˚C to 70˚C (-4˚F to 158˚F) |
| Storage Temperature | Power adaptor -0˚C to 40˚C | |
| Humidity Range |
(32˚F to 104˚F) -30˚C to 75˚C (-22˚F to 167˚F) 5% to 95%, non-condensing |
|
| Power Source | Adapter(not included) |
AC Input 100-240V, 50-60Hz; DC Output 24V±5%/2.5A |
| DC Power Supply | 24V-30V (24V/2.5A recommended) | |
| Power over Ethernet | IEEE802.3at | |
| Power Consumption | 5W to 24W | |
| UHF RFID | Supported Protocols |
EPC Global UHF Class 1 Gen2, ISO 18000-61&18000-63 |
| Frequency |
840 to 960 MHz (Support Global Frequency) |
|
| Communication Interface | RS-232 |
Default baud rate 115200kps, 8 data bits, no parity, 1 stop bit, no flow control |
| RJ45 | Default IP 192.168.0.210 | |
| Performance Parameter | GPIO |
4 Photoelectric Isolation Input (5 V, <20 mA); 4 Relay Control |
| Tag Data Rate | (Relevant to Configurations) | |
| RF Output Power |
40 kbps to 400 kbps 11 dBm to 33 dBm (step of 1 dBm) |
|
| Product Certification | CMIIT ID | 2012DP2304 |
| FCC ID | TQ4XC-RF807 | |
| CE ID | ES120229146E |
| Products Model | Invengo XC-RF807 Fixed Reader |
|---|---|
| RFID reader | UHF RFID |
| Manufacturer | Invengo |
