Linea Pro 6 1D Barcode Scanner, Mag Stripe

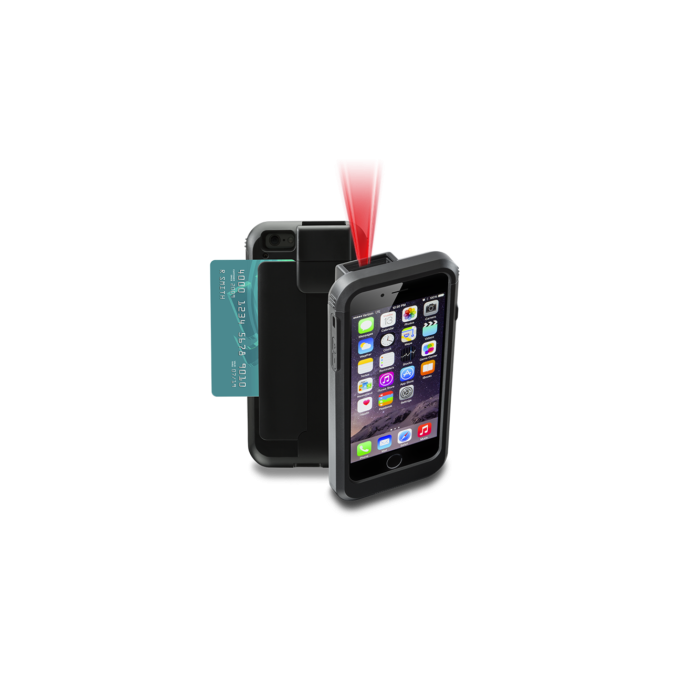

Linea Pro 6 1D barcode scanner with credit card swipe for Apple iPhone 6

Smart Mobile POS is offering the latest Linea Pro 6 is designed for the iPhone 6 for mobile barcode and POS applications. The Linea Pro 6 is a combination barcode scanner/credit card swipe reader with options of Bluetooth and RFID reader. The iPhone 6 attaches via the connector at the bottom of the Linea Pro for direct communication and acts as a backup power source for the iPhone 6 as well as powering the barcode reader the smartphone is housed in the case. The Linea Pro 6 is the perfect all in one solution for adding barcode and RFID functionality to the iPhone 6.

*iPhone 6 is not included

 Modes of operation: Active (turn on Linea Pro 6) / Active with Scanning / Stand By (after 5sec without operation mode)

Specification:

Power supply: Internal voltage 3.3V & 5V

Battery: Rechargeable Li-Ion Battery 3.7V / 1300 mAh, charging from USB port or DATECS Single/Gang Charger

Power Consumption: Deep sleep ∼ 20 μA

MCU: 32-bit ARM™ Cortex™ - M3 based Microcontroller

Communication Interface: USB Interface - between Linea Pro 6 and iPhone6®

USB Synchronization between Apple iPhone6® PC

Buttons: Scan and Status Buttons

Magnetic Stripe Reader:               3-track bidirectional reading capabilities

Type: ISO 7816-1/2/3 compatible & RAW mode

Secure Encrypting MSR Module: PCI PTS 3.x SRED compliant

DUKPT and Fixed Key Management

3DES-112, AES-128, AES-256 encryption algorithms

RFID Card Reader (option)

• MiFARE Mini
• MiFARE Classic 1K / 4K
• MiFARE Ultralight / Ultralight-C
• MiFARE Plus 2K / 4K
• ISO 14 443
• ISO 15 693
• DESFire card
• FeliCa

Bluetooth Communication (option):

Bluetooth 2.0

Class 2

Distance - up to 10 m

Serial Port Profile

Barcode Reader (option)

1D • MDL-1000 Laser Scanning Engine

2D • EM3070 High Performance 2D Imager Scanner

2D • EA-30 High Performance 2D Imager Scanner

Supported Barcode Types

UCC/EAN 128, EAN 13, UPC A, Code 128, Code 39, 2 of 5 Industrial, Micro QR code, QR code, RSS-Expanded, EAN 8, UPC E/E1, GS1, RSS 14, 2 of 5 Interleaved, Data Matrix, PDF417, MSI/Plessey, ISBN, IATA, Code 93, Codebar, S-code, RSS Limited, Maxi Code, UK/Plessey, ISSN, ISMN, Code 11, Telepen, Matrix 2 to 5, Micro PDF417, Aztec Code

LEDs       4 LEDs for battery status

Audio Indicator Buzzer

Weight, g             120 with Battery and 2D Barcode Reader EA30 (without iPod5 / iPhone5)

Dimensions (LxWxH), mm: 142 x 69 x (22 with 1D Barcode Reader) / (27 with 2D Barcode Reader)

Environment

Operating: 0°C to +40°C / 35 to 85% RH

Storage: -5°C to +50°C / 10 to 90% RH

Cables (option) Standard USB A to mini USB B cable (0.9 m)

Compatibility     Apple iPhone 6
