Linea Pro 7 2D Barcode scanner, Mag Stripe, BT

£454.80 £379.00
In stock
SKU
LP7MSBT2D-IPHONE7

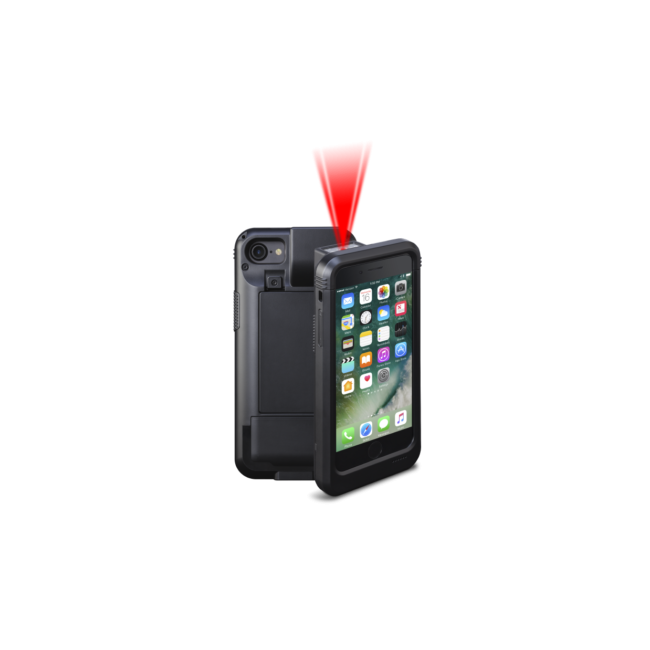

Linea Pro 7 2D barcode scanner with credit card swipe and Bluetooth for Apple iPhone 7

Smart Mobile POS is offering the latest Linea Pro 7 is designed for the Apple iPhone 7 for mobile barcode and POS applications. The Linea Pro 7 is a combination barcode scanner/credit card swipe reader with options of Bluetooth and RFID reader. The iPhone 7 attaches via the connector at the bottom of the Linea Pro for direct communication and acts as a backup power source for the iPhone 7 as well as powering the barcode reader the smartphone is housed in the case. The Linea Pro 7 is the perfect all in one solution for adding barcode and RFID functionality to the iPhone 7. The LineaPro 7 includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery.



Keyboard and Buttons
Two Scan buttons
Battery status button
Reset device button


Magnetic Card Reader
Triple track bi-directional


Encrypting Magnetic Card Reader
Triple track bi-directional (optional)
AES-256, DUKPT for AES-128 and 3DES


Contactless Card Reader (optional)
Supports:
ISO/IEC 14443 Type-A/MIFARE
- MIFARE MINI
- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K
- MIFARE ULTRALIGHT, ULTRALIGHT-C
- MIFARE PLUS 2K/4K
- MIFARE DESFire
- and other
ISO/IEC 14443 Type-B
- supports most of the cards
ISO/IEC 15693
- supports most of the cards
JIS X 6319-4
- compatible with FeliCa
ISO/IEC 18000-3 mode 3
- NFC


1D Barcode Reader
1D Opticon MDL1000* - Laser Barcode Scan Engine (optional)


Supported Symbology 1D
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Postal code: Chinese Post, Korean Postal Authority code
Composite codes, MicroPDF417, PDF417


2D Barcode Reader
2D Newland EM3096 CMOS Imager 752 x 480 pixels (optional)
2D Opticon MDI-4100* CMOS Imager 640 x 480 pixels (optional)
2D Honeywell N660x series CMOS Imager 844 x 640 pixels (optional)
2D Motorola SE4710/PL3307 CMOS Imager 1280 x 800 pixels (optional)


Supported 1D and 2D Symbology
BARCODE 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code


Connectivity
Apple 9 pin connector
Pass-through sync through mini USB type C
Bluetooth 2.0 Class 2 (option)
- SPP - Serial Port Profile


Device Compatibility
iPhone 7


LED Indication
4 LEDs for battery status


Audio Features
Electro-Magnetic Buzzer


Power Supply
DC 5V through mini USB type C
DC 5V through single or 5 station charger


Battery
Rechargeable Li-Ion Battery 3.7V / 2100mAh
Precise battery management by Fuel Gauge microcontroller for remaining battery capacity


Reliability
1 000 000 magnetic card swipes


Dimension W x D x H
77 x 157 x 27 mm


Weight
148 g without iPhone


Operational temperature range
-10 °C to +40 °C / 5 to 90% RH


Storage temperature range
-20 °C to +50 °C / 5 to 90% RH


Compatible Accessories
Single charger (GT1)
5 stations charger (GT5)
Rugged protective holster (allows customer color customization)
More Information
Products ModelLinea Pro 7 2D Barcode scanner, Mag Stripe, BT
Barcode scanner2D scanner
ManufacturerDatecs
