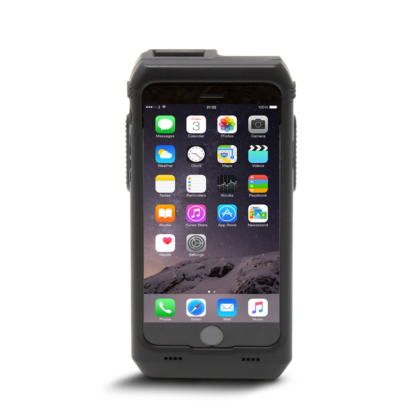

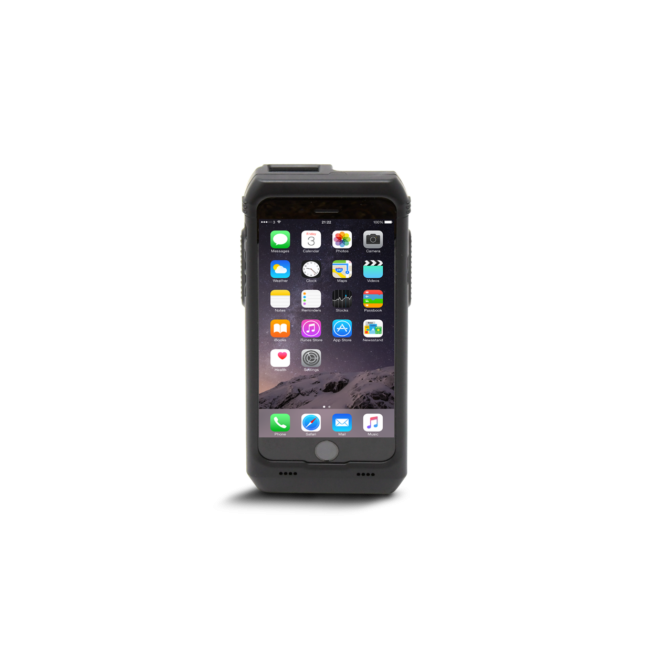

Linea Pro 7i Industrial Barcode Scanner Sled Zebra SE4750SR - iPhone 7

Linea Pro 7i 2D Industrial 2D barcode scanner sled Zebra SE4750SR scanner (standard range) for iPhone 7

The Linea Pro 7i industrial barcode scanner is designed for the Apple iPhone 7 for mobile barcode and POS applications. The Linea Pro 7i is a form-fitted high performance barcode scanner designed to work with iPhone 7 providing an enterprise grade device that delivers quick, reliable scans. The hot-swappable battery feature will keep your enterprise mobilized around the clock. Designed to survive industrial conditions, the Linea Pro 7i meets IP66 requirements.

The Linea Pro 7i is a combination barcode scanner/credit card swipe reader with options of Bluetooth and RFID reader. The iPhone 7 attaches via the connector at the bottom of the Linea Pro 7i for direct communication and acts as a backup power source for the iPhone 7 as well as powering the barcode reader which is housed in the case. The Linea Pro 7i is the perfect ruggedised all in one solution for adding barcode and RFID functionality to the iPhone 7. The LineaPro 7i includes a 1D or 2D barcode scanner, optional functions like 3-track magnetic card reader or secure MCR, RFID card reader, Bluetooth and a rechargeable battery.

Specifications

Keyboard and Buttons Two Scan buttonsBattery status buttonReset device button

Magnetic Card Reader Triple track bi-directional

Encrypting Magnetic Card Reader Triple track bi-directional (optional)AES-256, DUKPT for AES-128 and 3DES

Contactless Card Reader (optional) Supports: ISO/IEC 14443 Type-A/MIFARE- MIFARE MINI- MIFARE CLASSIC-1K, MIFARE CLASSIC-4K- MIFARE ULTRALIGHT, ULTRALIGHT-C- MIFARE PLUS 2K/4K- MIFARE DESFire- and otherISO/IEC 14443 Type-B- supports most of the cardsISO/IEC 15693- supports most of the cardsJIS X 6319-4- compatible with FeliCaISO/IEC 18000-3 mode 3- NFC

1D Barcode Reader 1D Opticon MDL1000* - Laser Barcode Scan Engine (optional)

Supported Symbology 1D JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128(EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/PlesseyPostal code: Chinese Post, Korean Postal Authority codeComposite codes, MicroPDF417, PDF417

2D Barcode Reader 2D Newland EM3096 CMOS Imager 752 x 480 pixels (optional)2D Opticon MDI-4100* CMOS Imager 640 x 480 pixels (optional)2D Honeywell N660x series CMOS Imager 844 x 640 pixels (optional)2D Motorola SE4710/PL3307 CMOS Imager 1280 x 800 pixels (optional)

Supported 1D and 2D Symbology BARCODE 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/ Plessey, S-Code, Telepen, Tri-Optic, UK/ Plessey POSTAL CODE: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET 2D CODE: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code

Connectivity Apple 9 pin connectorPass-through sync through mini USB type CBluetooth 2.0 Class 2 (option)- SPP - Serial Port Profile

Device Compatibility iPhone 7, iPhone 8

LED Indication 4 LEDs for battery status

Audio Features Electro-Magnetic Buzzer

Power Supply DC 5V through mini USB type CDC 5V through single or 5 station charger

Battery Rechargeable Li-Ion Battery 3.7V / 2100mAhPrecise battery management by Fuel Gauge microcontroller for remaining battery capacity

Reliability 1 000 000 magnetic card swipes

Dimension W x D x H 77 x 157 x 27 mm

Weight 148 g without iPhone

Operational temperature range -10 °C to +40 °C / 5 to 90% RH

Storage temperature range -20 °C to +50 °C / 5 to 90% RH

Compatible Accessories Single charger (GT1)

5 stations charger (GT5)

Rugged protective holster (allows customer color customization)
