Orca 50 Android 12.0, 4G IP64 WiFi, BT, 2D barcode, UHF RFID handheld data terminal

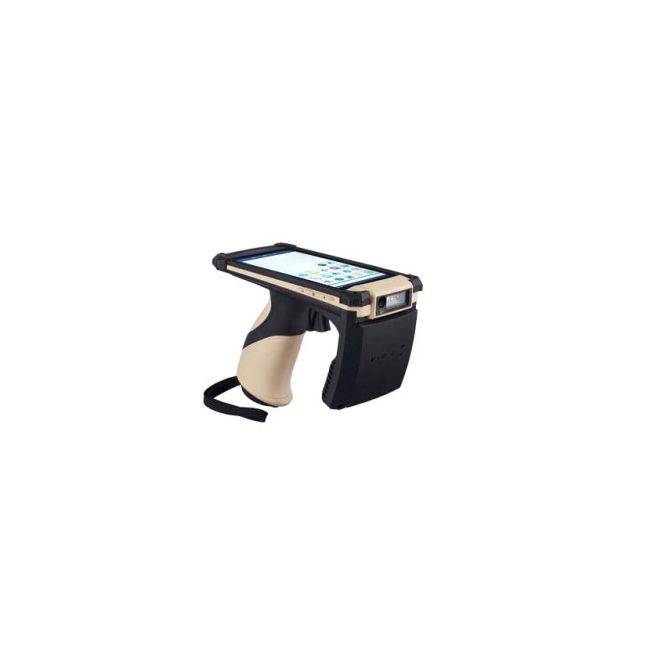

The Orca 50 is a pistol style handheld data terminal. Being rugged and versatile, the Orca 50 is designed to meet the scanning needs in transportation & logistics, and warehousing. Under the full protection of IP64 standards and 2 m drop resistance, it effectively captures data from even the harshest environments.

High Performance Computing Platform
Heavy duty applications such as massive data collection,3D real-time display can be operated smoothly.

Android 12.0
Android 12.0 system is installed,optimized version is continuously updated.

Top Class Materials
CNC aluminum, nylon(Bayer) and 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding.The soft material around the handle offers comfort.

Industrial Grade Components
Industrial and military-grade components ensure stability and endurance in harsh environments.

Ultra Long Operating Time
Pistol style hot-swapping battery system makes backup battery more convenient to be restored,so that the operating time is unlimited.A standard product package has two 6,000mAh batteries included.

High End UHF RFID Engine
The M-2600 module which is designed by RodinBell is based on impinj Indy R2000 chip,offers the best performance and excellent multi-tag identification ability in the industry.

Outstanding Industrial Design
The idea was inspired by orca,and each single detail has been well refined.The appearance is compact,elegant and balanced,which makes the product eye-catching and impressive.

Excellent Mechanical Protection
The safety drop height is 2m/6.56ft,IP64 protection grade can resist dusts and splashes effectively



Mechanical Parameters



Materials                       CNC aluminum + nylon (Bayer)

Dimensions                   Profile  160*82*129mm

                                        Grip   111*38*47mm

Weight                           640g (including battery/standard version)



System Characteristics

Operating System: Android 12.0

CPU: Quad-core Cortex-A17 / 1.8GHz

GPU: ARM Mail- T764 / High performance 3D engine

RAM: 2G LPDDR3

           4G LPDDR3 (Optional)

ROM: 32G EMMC 5.0

           64G EMMC 5.0(Optional)

LCD: 5.0 inches / 1280*720 / IPS / 180°view angle



Touch Screen: 1.1mm thickness tempered glass / 10-dot touch / can be operated with gloves

PSAM                              PSAM*1 / TI TCA5013(Optional)

Buttons

Power / Volume*2           3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles

Function keys                  3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles

Scan Trigger                     OMRON button / Operating force 1.27N / Operating life 10,000,000 cycles

Power                              6000mAh chargeable Li-polymer battery

Card Slots                      Micro SIM card slot / PSAM card slot*2

USB Interface                Micro USB / MOLEX connector / Operating life 10,000 cycles

Audio                               Large speaker stereo system

Vibrator                          Button style/ 10mm diameter

Charge Indicator           Bicolor LED



Wireless Communications

WiFi                                IEEE802.11b/g/n

Bluetooth                       Bluetooth 4.0

3G                                   Huawei MU 609 / Vehicle grade (Optional)

4G                                   Huawei MU 909s / / Vehicle grade (Optional)



Application Environment

Operating Temp           -20°C -/+ 60°C

Storage Temp                -40°C -/+ 70°C

Humidity                       5%RH – 95%RH (Non condensing)

Protection Grade          IP64

Safety Drop Height      2m / 6.56ft



Data Collections

1D Barcode (Optional)



Engine                            Motorola  EM1350



Support                          UPC/EA Symbol SE955N / Code128 / Code39 / Code93 / Code11/ Interleaved 2 of 5 / Discrete 2 of 5 / Chinese 2 of 5 / Codabar / MSI / RSS etc.



2D Barcode (Optional)



Engine                            Honeywell  N3680

Support                          Data matrix / QR Code / PDF417 / US Planet / UK Postal etc.



UHF RFID

Engine                             RodinBell M-2600 module based on impinj Indy R2000 chip

Buzzer                           12*9.5mm / 2300 ± 300Hz

Protocol                         EPC Global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B

Work Frequency            840-960MHz

Output Power                0 – 33dBm



Peak Inventory Speed    ＞500 tags/s

UHF Antenna                3dBi circularly polarized antenna



Read Distance                6 – 7m (Tested tag : impinj E41b)

Camera( Optional)     13 megapixels / automatic focus / flashlight

GPS                               GPS & GLONASS
