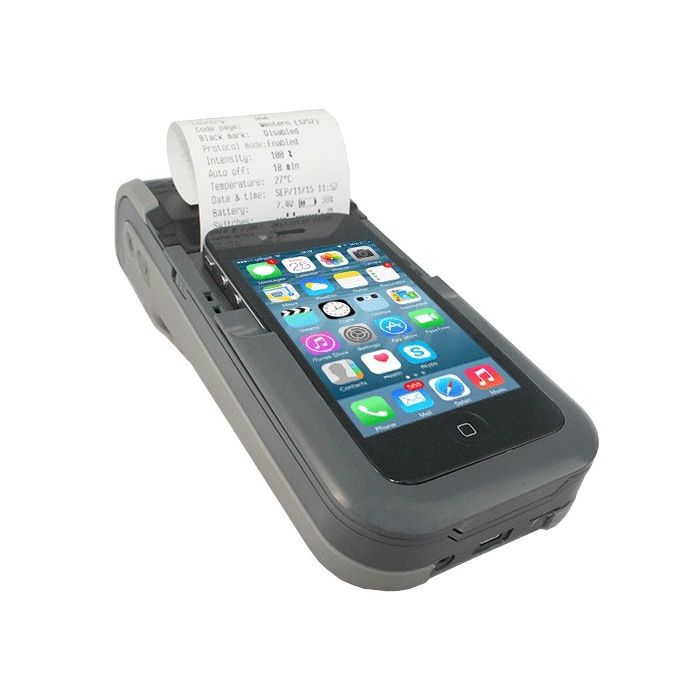

PP60 2" Printer + 1D Scanner + Mag Stripe + BT for iPOD Touch 4

PP60 2" printer with 1D barcode scanner, Bluetooth and magnetic stripe reader for iPOD Touch 4
• Printing method: Line thermal dot printing
• Printing speed: max 60 mm/s (480 dots/sec) at Full charged battery
• Print Width: 48 mm / 384 dots per line
• Resolution: 203 dpi (8 x 8 dots/mm)
• Dot pitch: Horizontal – 0.125 mm (8 dots/mm), Vertical – 0.125 mm (8 dots/mm)
• Resident Fonts: Font А: 12 х 24 dots (32 char. per line), Font B: 9 х 16 dots (42 char. per line)
• Loadable Fonts: Font C: 12 х 24 dots (32 char. per line), Font D: 9 х 16 dots (42 char. per line)
• Logo Registration: 1 Black & White BMP format ( 1-bit per pixel), Size: 384 x 248
• Input Buffer: 128 KB (131072 bytes)
• Thermal paper; 58mm +0/-1mm Φ 40-45mm diameter, thickness 60 μm

Barcode types
• 1D: UCC/EAN 128, EAN 13, EAN 8, UPC A, UPC E, UPC E1, Code 11, Code 39, Code 93, Code 128, GS1, Matrix 2 to 5, Code 11,2 of 5 industrial, 2 of 5 interleaved, Codebar, MSI/Plessey, UK/Plessey, IATA, ISBN, ISMN, ISSN, S-code, Telepen, RSS 14, RSS Limited, RSS- Expanded
• 2D: PDF417, microPDF417, Data Matrix, QR code, Aztec code, Maxi code, Micro QR code

Communications
• Serial: RS232 C – max. 115200 bps,
• USB: USB 2.0 full speed – Host & Device
• Bluetooth® – Optional

Readers
• Magnetic Card Reader – 3-track head, ISO7811 (optional)
• 1D Barcode Scanner MDL1000 - 1D Laser Scan Engine
• 2D Barcode Scanner MDI 2300 or EA-15 (optional) - 2D Auto-focus Imager Scan Engine

Emulation
• ESC/POS
• Black Mark Mode

Power supply
• Battery capacity: Per Charge (~20,000 lines)
• Adapter: type 10AD-E, AC 100 – 240 V@1.3 A 50/60 Hz / DC 9 V@1A

Environment
Operating temp. +0°C to +40°C @ 35 to 85 % RH
Storage temp. -20°C to +60°C @ 10 to 90% RH

• Reliability (MTBF): 50 km (printing rate 25% max)


Cables
• RS 232 interface cable;
• Standard mini USB A to B cable (optional)

Support PDA device
• IPOD Touch 4
• IPhone 3G/3GS/4
• Blackberry 8300/8900/9700 series


Size / weight / power
• W x L x H - 80 x 198 x 57 mm
• Weight - 330 gr.
• Power - Rechargeable Li-ion battery (7,4 V / 1150 mAh)
