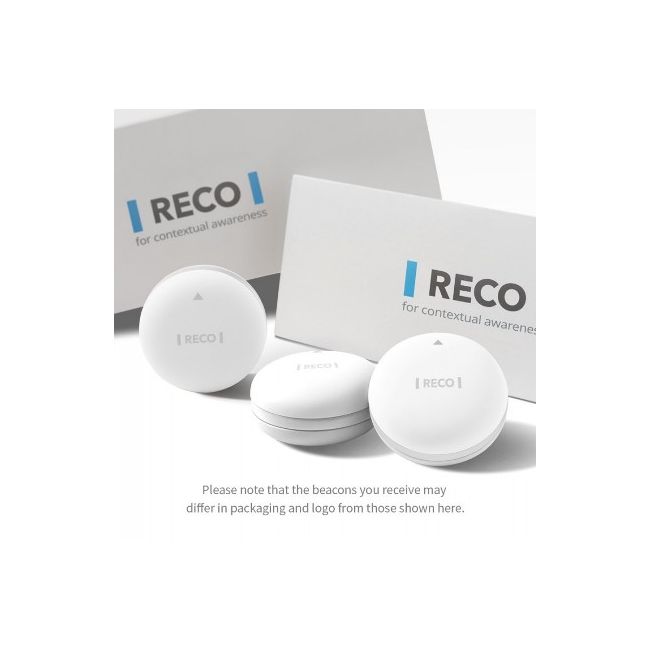

RECO Beacon starter kit (3 devices)
Eddystone & iBeacon Ready
RECO BEACON
Member Center with exclusive developer resources
- SDK (even beginners can develop easily with)
- Configuration App to modify beacon values (iBeacon/Eddystone)
* Eddystone profile is currently configurable with iOS only; Android is being developed and will be released soon.
Get Back to Living with RECO Beacon!
Bluetooth Low Energy
RECO Beacon uses the Bluetooth Low Energy protocol, which takes very little power. BLE is easy on your phone’s battery, too.
Trigger Planned Experiences
A signal from RECO Beacon can be designed to trigger anything you want. Create a virtual experience to complement the physical experience of your space and let RECO tie the two together.
RECO is technology that gets out of the way and let's you get back to living real life.
Specifications:
iBeacon, Eddystone, and International Certifications
RECO Beacon Technical Specifications
| Dimensions |
45mm x 20mm (Diameter x Height)
1.77” x 0.78” |
| Weight (with battery) |
11.6g (0.4oz) |
| Processor |
32-bit ARM® Cortex®-M0 |
| Battery |
CR2450 Lithium Coin Battery (3v, 620mAh);
Lasts up to 2 years (with tx power of 500ms) |
| Housing |
Casing: White, ABS Plastic
Installation: 3M adhesive
Branding: Customizable upon request
Thermal Resistance: 93°C (200°F)
Shock Resistance: 4.5
Operating Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Water resistant (not waterproof) |
| Wireless Technology |
Bluetooth 4.0 (i.e. BLE or Bluetooth® Smart)
Chipset: Nordic nrf51822 |
| Signal |
Range: 1m ~ 70m (3.2ft ~ 230ft) |
| Configuration |
UUID, Major, Minor, interval (10ms~2s), tx power (-16dbm ~ +4dbm), battery level
iBeacon and Eddystone profile |
| Supported Profiles |
iBeacon
Eddystone-URL
Eddystone-UID
(Eddystone-TLM is an intervened profile)
Configurable only with iOS; Android release expected soon |
| Certifications |
KC, FCC, CE, TELEC (SIG in progress) |
