Riotec DC-9267L 2D MicroUSB Wearable barcode scanner for Android

Riotec DC-9267L 2D MicroUSB Wearable Mini barcode scanner for Android

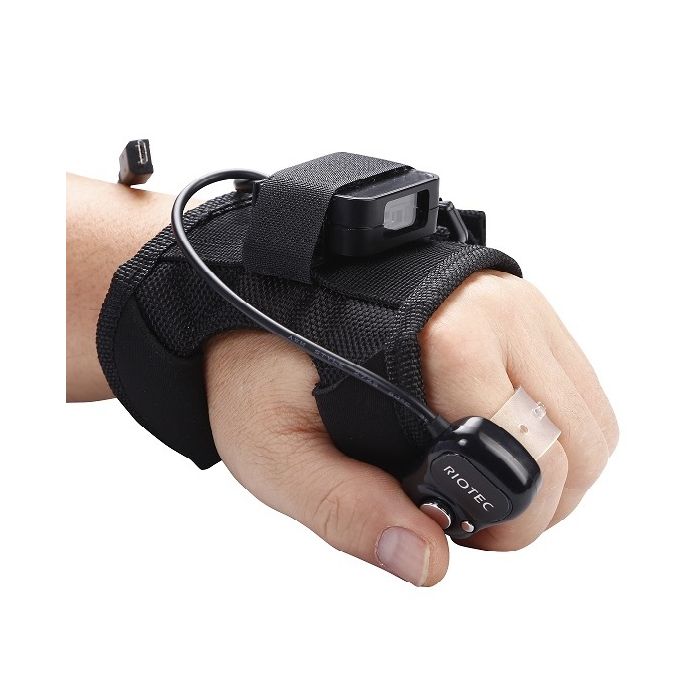

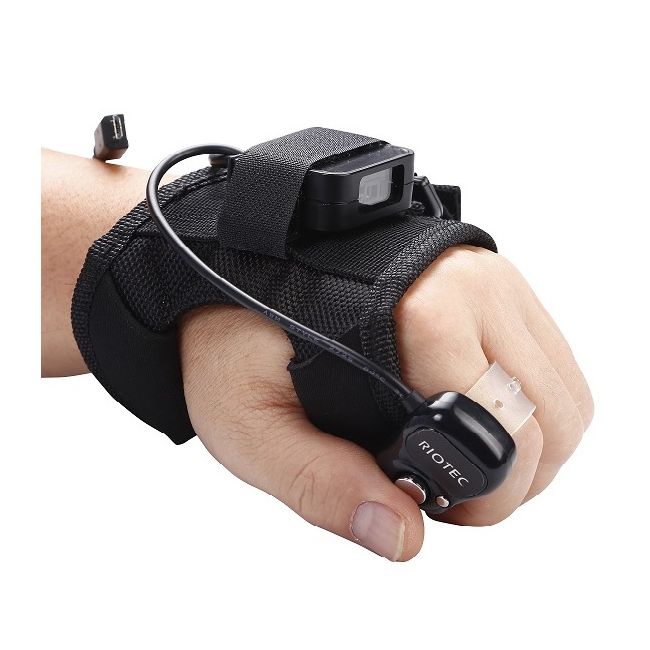

The Riotec DC-9267L 2D MicroUSB Wearable Mini barcode scanner is a modern, mini barcode scanner. The RIOTEC DC-9267L is connected to the unit via a MiniUSB port has been designed with users in mind.

RIOTEC DC-9267L is an intelligent and ergonomic, handheld barcode reader will have applications in retail, couriers & logistics, picking and warehouse enviroments. .

2D Barcode Scanner and MiniUSB connector ensures proper communication and is compatible with mobile devices (tablets / smartphones)

Product Description

• 2D Mini Mobile barcode scanners are designed for Android OTG devices especially.
  Plug & Play, No need additional driver required
• Design frees operator's hands to move packages, products or materials, helping to improve efficiency and productivity.
• Lightweight, ergonomically designed for easy operation



 2D ENGINE

Performance Characteristics

• Light source:                             625±10 nm LED
• Depth of field                            1D (20 mil Code 39)：320 mm
• Best resolution:                         2D (PDF417) ≥ 6mil
• 1D (CODE39)≥ 5mil
• Scan Angle:                              Tilt: 360° / Pitch ±50° / Skew ±50°
• Interface:                                  Micro USB ( USB_HID ,USB Serial <by request> )
• Print contrast:                            ≧30%

• Symbologies:                            Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Industrial 2 of 5, MSI, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, PDF417, QR Code, Micro QR code, Data Matrix



Electrical Characteristics

• Input voltage:                       Smart Phone / Tablet Power
• Current – operating:              230 mA
• Physical Characteristics:
• Dimension (L * W * H):         59 X 20 X 12 mm (Holder, without strap)
• Colour of housing:                 Black
• Weight:                                 52 g



Environment

• Temperature-operation:              0°C to 50°C
• Temperature-storage:                   -10°C to 60°C
• Humidity-operation:                       5% to 95% relative humidity, non-condensing



Decode Zone (There are +/- 1 cm tolerance)

• 5 mil Code 39                         60mm ~ 120mm
• 13 mil UPC-A                          45mm ~ 250mm
• 20 mil Code 39                       70mm ~ 320mm
• 6.67 mil PDF417                      40mm ~ 160mm
• 10 mil DataMatrix                    40mm ~ 160mm
• 20 mil QR Code                        40mm ~ 275mm
