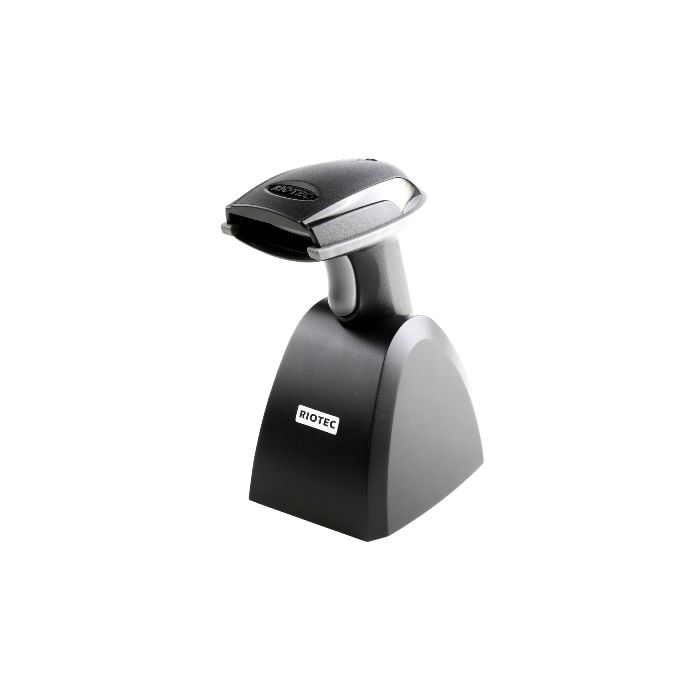

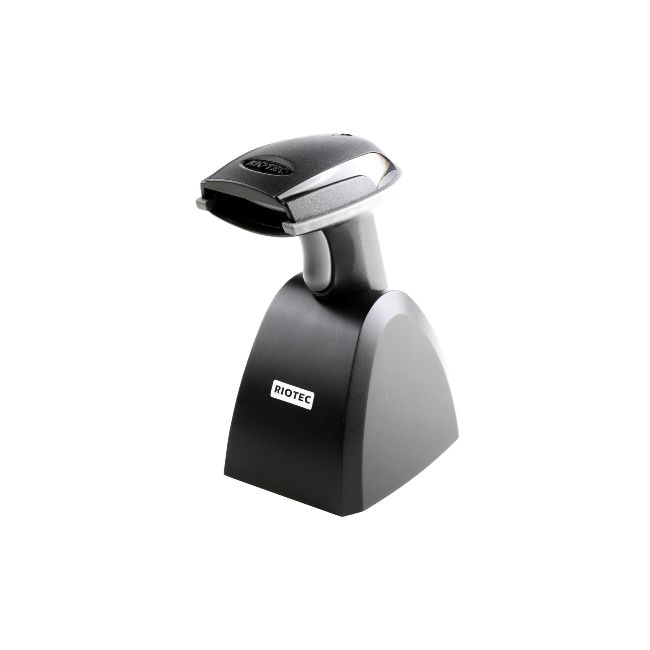

Riotec iLS6300BU 1D Bluetooth barcode scanner

1D Wireless Laser Barcode Scanner

Features

˙ Use patented laser engine with "No Moving parts Inside Technology"
˙ Scan rate: 100 scans /sec
˙ Supports Apple iOS, Android, Windows devices through Wireless
˙ 2.4GHz wireless radio range: Wireless Class 1 (100m, in open area)
˙ iLS6300BM/BQ (with memory inside) support data
     transmission mode & data storage mode (batch mode)
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Cradle functions as 2.4G wireless receiver & charging stand
˙ Support interface: USB (Serial)/ USB(HID)

Scanners Specifications：

Model Name

iLS6300BU
(without memory inside)

iLS6300BQ
(with 1MB memory inside)

Description

2.4 GHz Wireless Laser Barcode Scanner

Engine

RIOTEC 1D laser engine

Performance Characteristics

˙

Light Source

650 nm Laser Diode

˙

Depth of Field

500 mm (based on 40 mils)

˙

Scan Speed

100 scans/sec

˙

Best Resolution

0.1 mm (4 mils) - Code 39

˙

Print Contrast

45% or more

˙

Scan Angle

38°

˙

Indicators

green/red LED & beeper

˙

Interface

USB (Serial)/ USB(HID)

˙

Symbologies

UPC/EAN/JAN, Code11, Code 39, Code 93,Code 128, Coda bar,                          Interleave 25, Industrial 25, ISBN, MSI

˙

Auto-sensing

Up to 180 mm (iLS6320B, iLS6320BU, iLS6320BM, iLS6320BQ only)

Electrical Characteristics

˙

Input voltage

5 VDC ± 0.5 V

˙

Current - operating

250 mA max

˙

Radio Range

100M (2.4GHz Wireless, in open area)

˙

RF Frequency

2.4GHz

˙

Communication

SPP (Serial Port Profile) with cradle/
HID (HID profile) with smart phone or tablet 2.4GHz Wireless

˙

Battery Type

AA NiMH rechargeable battery  1.2V x 2 (2.4V 2300mAH)

˙

Scans per charge

more than 20,000 scans when fully charged

˙

Charge Time

4 ~ 5 hours

˙

Current Charging

500 mA Max.

˙

Memory capacity

No Memory

1MB
(can save 65,000 EAN 13 barcode)

Physical Characteristics

˙

Dimension

90 X 60 X 165 mm (L * W * H)

˙

Weight

 165 g +/- 5 g  (for scanner), 225 g +/- 5 g  (for cradle)

User Environment

˙

Temperature-operation

    0℃ to 50℃

˙

Temperature-storage

-10℃ to 60℃

˙

Humidity-operation

10% to 85% relative humidity, non-condensing

˙

Humidity-storage

5% to 95% relative humidity, non-condensing

˙

Ambient Light

Fluorescent Light 300 lux to Sun Light 30000 lux

˙

Shock

1.2 m drop onto concrete

Decode Zone (Based on Symbol’s Standard Code 39 PCS=0.9 label and 600 lux environment. There are +/- 1 cm tolerance)

˙

  4 mils

40 ~   70 mm

˙

  5 mils

45 ~ 120 mm

˙

13 mils

30 ~ 250 mm

˙

20 mils

40 ~ 320 mm

˙

40 mils

65 ~ 500 mm
