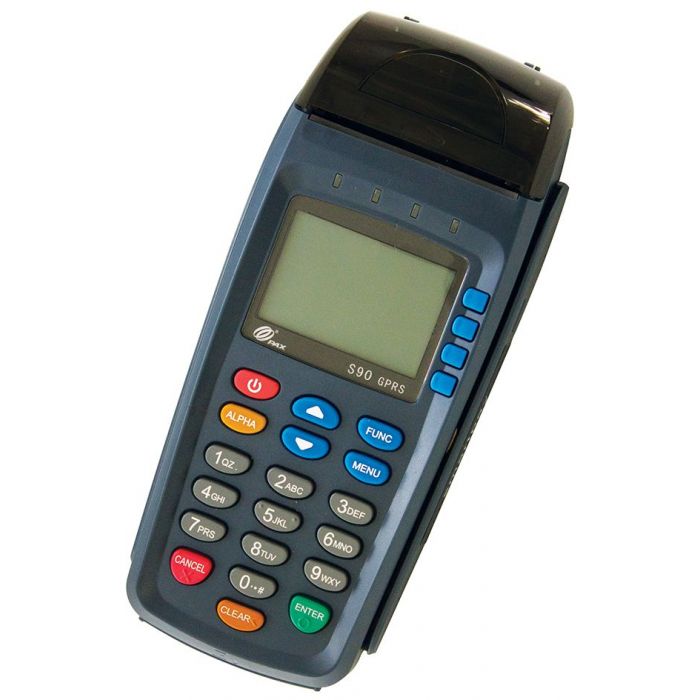

Smart Mobile POS is partnering with PAX Technology to launch the PAX S90 mobile POS terminal which has been designed to offer superior wireless performance, embedded in a ruggedised yet stylish form factor. With a large memory and a high capacity Li-ion rechargeable battery, the S90 is one of the most popular mobile terminals with merchants today.
The S90 comes with PCI PTS 3.x certification, optional built-in contactless, and delivers secure transactions using an ARM11 processor to support DUKPT, Master/Session and 3DES.
Features:
PCI PTS 3.x approved
High speed ARM 11 processor
Large memory capacity
EMV, Magstrip and Contactless / NFC
Optional 1D barcode scanner
USB connectivity
Large capacity battery
GPRS, CDMA, 3G
Specification:
Smart Mobile POS is partnering with PAX Technology to launch the PAX S90 mobile POS terminal which has been designed to offer superior wireless performance, embedded in a ruggedised yet stylish form factor. With a large memory and a high capacity Li-ion rechargeable battery, the S90 is one of the most popular mobile terminals with merchants today.
The S90 comes with PCI PTS 3.x certification, optional built-in contactless, and delivers secure transactions using an ARM11 processor to support DUKPT, Master/Session and 3DES.
Features:
PCI PTS 3.x approved
High speed ARM 11 processor
Large memory capacity
EMV, Magstrip and Contactless / NFC
Optional 1D barcode scanner
USB connectivity
Large capacity battery
GPRS, CDMA, 3G
Specification:
Processor
32-bit ARM11
Memory
192MB (128MB Flash, 64MB DDR)
Display
128 x 64 pixel LCD,
White backlit
Keypad
10 numeric / letter & 8 function keys
4 ATM keys, 1 Power ON / OFF key
Printer
Thermal printer, speed: 18 lines per second
Paper roll width / diameter: 58mm / 40mm
Magnetic Card Reader
Track 1 / 2 / 3, bi-directional
Smart Card Reader
EMV L1 & L2 certified
Contactless card Reader (optional)
MasterCard PayPass & Visa payWave
American Express ExpressPay
Discover DPAS
ISO / IEC 14443 Type A / B,
Mifare®, Felica, NFC
4 RF Indicators
Barcode Reader (optional)
1D barcode scanner
Card Slots
2 SAMs
1 SIM
Communication
GPRS / CDMA / 3G ( WCDMA / EVDO)
Modem (optional):
Sync. (HDLC up to 9600bps)
Async. (V.92, up to 56Kbps)
Peripheral Ports
1 x RS232, 1x Mini USB (OTG)
1 x Line (optional), 1 x power charge
Security
PCI PTS 3.x approved
DUKPT, Master / Session, DES, 3DES
ANSI / ISO9564 format 0, 1, 3
PIN ciphered key algorithm
ANSI X9.9 / X9.19 MAC algorithm
Battery
Li-ion battery, 1800mAh, 7.4V
Environmental
0°C to 50°C (32°F to 122°F) operating temperature
-20°C to 70° C (-4°F to 158°F) storage temperature
10% to 93% relative humidity, non-condensing
Voltage
Input: 100~240VAC, 50Hz / 60Hz, 1.0A
Output: 9VDC, 1A
Physical
Length: 199mm
Width: 87mm
Height: 61.5mm
Weight
504g with battery
Accessories (optional)
Holder, Charging Dock,
Car Charger
Certifications:
PCI PTS 3.x
EMV L1 & L2
EMV Contactless L1
MasterCard PayPass
Visa payWave
American Express ExpressPay
Discover DPAS
| Products Model | S90 3G mobile payment terminal with NFC contactless |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | ACS |
