Sewoo LK-P20 2" Printer + USB + BT + RS232 + MS + Smart Card

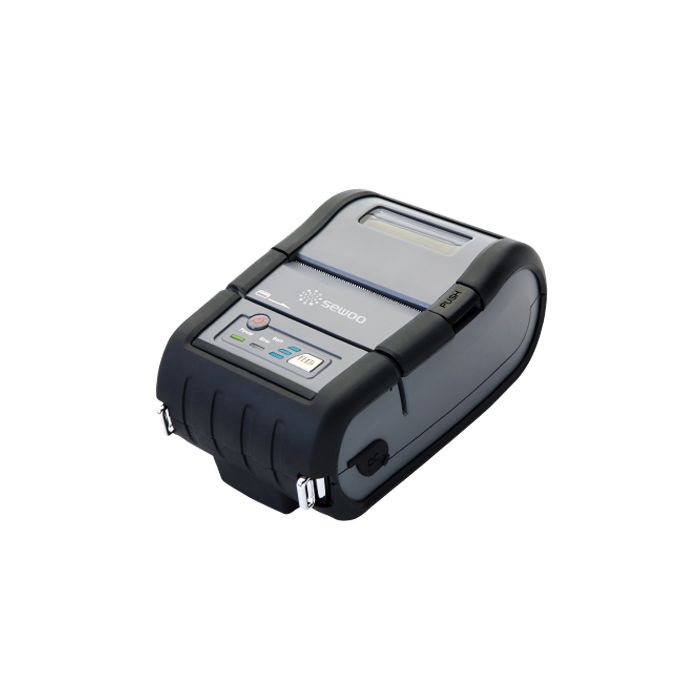

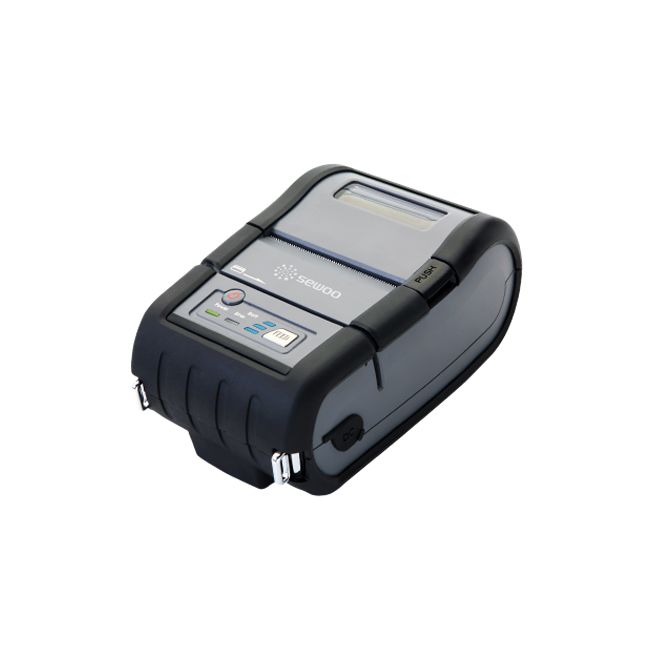

Sewoo LK-P20 2" rugged receipt printer with serial, USB, Bluetooth, mag stripe, smart card reader
- The Sewoo LK-P20 is a 2” mobile receipt printer designed with durability in mind. With a print speed of up to 80 mm per second, this rugged mobile receipt printer is ideal for POS applications. The LK-P20 mobile receipt printer comes with a full suite of drivers, including Win CE/Mobile, Symbian and Blackberry, as well as optional features such as magnetic stripe reader or smart card reader.
Features and Benefits
- SDK's available for a wide range of mobile OS, including iOS, Android, Blackberry, Symbian and Windows Mobile
- Durable and robust
- Standard RS232C and USB connectivity
- Optional Bluetooth or WiFi
- Compact and lightweight (only 450g including battery)
- Longer life battery (2 hours charging time and 17 hours stand-by)
- A range of optional accessories, including leather case, shoulder strap, cradle and in-vehicle charger
Sewoo LK-P20 2" rugged receipt printer with serial, USB, Bluetooth, mag stripe, smart card reader
- The Sewoo LK-P20 is a 2” mobile receipt printer designed with durability in mind. With a print speed of up to 80 mm per second, this rugged mobile receipt printer is ideal for POS applications. The LK-P20 mobile receipt printer comes with a full suite of drivers, including Win CE/Mobile, Symbian and Blackberry, as well as optional features such as magnetic stripe reader or smart card reader.
Features and Benefits
- SDK's available for a wide range of mobile OS, including iOS, Android, Blackberry, Symbian and Windows Mobile
- Durable and robust
- Standard RS232C and USB connectivity
- Optional Bluetooth or WiFi
- Compact and lightweight (only 450g including battery)
- Longer life battery (2 hours charging time and 17 hours stand-by)
- A range of optional accessories, including leather case, shoulder strap, cradle and in-vehicle charger
-
LK-P20
IDEAL SOLUTION FOR PORTABLE PRINTING
• Receipt only
• Durable and robust with rugged design
• Magnetic stripe reader & smart card reader(Option)
• Drop resistance : 1.8M onto concrete(with case)
• IP42, IP54(with case) certified
• Standard interface RS-232C, U5B and optional Bluetooth or Wi-Fi(802.11 b/g) available
• Prints at 80mm per second
• Fast AC/DC charger and long life battery : 2.5Hrs charging time, 20Hrs stand- by
PRINTING
• METHOD : Direct Thermal
• SPEED : 80mm/sec
• RESOLUTION : 203 DPI
DOT
• PITCH : 8 Dot/mm, 0.125 Pitch
CHARACTER PER LINE
• Font A(12x24) : 32 columns
• Font B(9x17) : 42 columns
CHARACTER SET
• EXPENDED GRAPHIC : 128 *18 page(1 space page)
BARDCODE
• 1D : EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E, Codabar, Code93, Code128
• 2D : PDF417, QR Code, Maxicode
PAPER
• TYPE : Thermal Receipt
• WIDTH : 58mm
• THICKNESS : 0.06~0.09 mm
• ROLL DIAMETER : Max. Ø 48mm
• ROLL CORE INNER DIAMETER : 12.5mm ± 0.5mm
• STANDARD : Serial(RS-232C), USB
• OPTION : Wi-Fi(802.11b/g), Bluetooth Class2
BATTERY CHARGER
• External Charger(Output 8.4VDC/0.8A)
BATTERY
• 7.4V / 1800mAh Li-ion, 2.5 Hrs Charging Time, 20 Hrs Stand-by
SENSOR
• STARNDARD : Paper End, Cover Open
RELIABILITY
• TPH LIFE : 50km
• PULSE ACTIVATION : 50,000,000 pulse or more(12.5% Print Ratio)
TEMPERATURE
• OPERATING TEMPERATURE : -10 ~ 50℃
• STORAGE TEMPERATURE : -20 ~ 60℃
HUMIDITY
• OPERATING HUMIDITY : 35 ~ 80%
• STORAGE HUMIDITY : 10 ~ 90%
DROP RESISTANCE
• 1.8M onto concrete(with case)
IP
• IP42, IP54(with case) certified
CERTIFICATION
• KCC, CE, FCC, UL/cUL
EMULATION
• ESC/POS Command compatible
DRIVER
• Windows Driver(2012, 8, 7, 2008, VISTA, 2003, XP, 32bit & 64bit),
Window CE & Mobile Driver & SDK(CE 4.2~, Mobile 5.0~),
Linux Driver, Mac Driver, OPOS Driver, JavaPOS Driver, iOS SDK, Android(2.1~) SDK, Blackberry SDK, Symbian
DIMENSION
• W x D x H(mm) : 96×139×62 (mm)
• W x D x H(inch) : 3.77×5.47×2.44 (inch)
WEIGHT
• 450g (with battery)
• MSR, IC Card Reader
Products Model | Sewoo LK-P20 2" Printer + USB + BT + RS232 + MS + Smart Card |
---|---|
Manufacturer | Sewoo |
