The SMP WT04 Android Ruggedized Wearable Computer paired with the SMP02 2D Glove Barcode Scanner offers a robust, hands-free solution for efficient barcode scanning in tough environments. Ideal for warehouses and logistics, this durable system ensures fast, accurate data collection and seamless integration into your workflow.

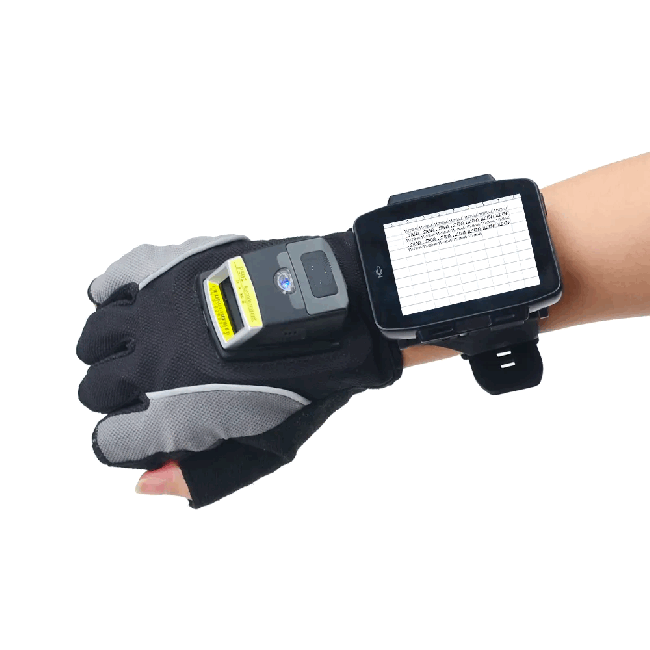

SMP WT04 Android Ruggedised Wearable Computer + SMP02 2D glove barcode scanner
The SMP WT04 Android Ruggedized Wearable Computer combined with the SMP02 2D Glove Barcode Scanner is a powerful, hands-free solution designed for tough environments like warehouses, logistics, and manufacturing. This wearable computer offers seamless Android-based functionality, while the 2D glove barcode scanner ensures efficient and accurate barcode scanning, even in challenging conditions. With its rugged design and advanced performance, this system enhances productivity and streamlines operations for businesses requiring durable, high-performance mobile computing solutions.
Hands-free operation Performing a scanning operation is easier than lifting a finger, literally.
With this new rugged wearable, not only work efficiency is improved, but the user comfort experience is also greatly enhanced
Professional and full-scale data acquisition
♦ 4.0 inch TFT-LCD WVGA (480×800) color screen, supports multiple finger touch, gloves touch.
♦ 3.5mm Audio port, 9PinMagnetic pogo pin(With USB and charging functions,Support wired scanner)
♦ Rechargeable 3.8V 2850 mAh, Charging time No more than 4 hours.
♦ Supports 4G and 3G cellular radio, and 802.11a /b/g/n WiFi, and Bluetooth.
♦ 8MP camera with LED flash and auto-focus function; Support camera scanning.
♦ The U2 is drop tested with 1.5m and the sealing is tested with IP65 standard.
♦ 1D and 2D scan engines are available with wired and wireless options.
♦ Performing a scanning operation is easier than lifting a finger, literally. With this new rugged wearable, work efficiency is improved, and the user comfort experience is also greatly enhanced.
♦ Supports 4G and 3G cellular radio, and 802.11a /b/g/n WiFi, and Bluetooth.
|
Basic Characteristics |
|
|
OS |
Android 10 |
|
CPU |
Quad-Core 1.2GHz |
|
Display |
4.0 inch TFT-LCD WVGA (480×800) color screen |
|
Panel |
Support Multiple finger touch, glove touch. |
|
Internal storage |
RAM: 1GB/2GB ROM:8GB/16GB |
|
Dimensions |
118mm×91mm×33mm |
|
Weight |
273g(Included battery and wristband) |
|
Buttons |
Context Button, Home Button, Back Button,2 User definable buttons(F1, F2) , Button,power button |
|
Main Battery |
Rechargeable 3.8V 2850 mAh |
|
Charging time |
No more than 4 hours |
|
RTC Battery |
Real-time clock battery |
|
Radio Communication |
||
|
Wifi |
802.11 a/b/g/n wireless communication |
|
|
Bluetooth |
Bluetooth 4.0 HS low energy |
|
|
Chinese version |
4G |
TDD-LTE: Band 38/39/40/41 FDD-LTE: Band 1/3 |
|
3G |
UMTS(WCDMA)/HSPA+/DC-HSDPA:850/900/2100MHz |
|
|
2G |
GSM/EDGE:850/900/1800MHz |
|
|
International Version |
4G |
TDD-LTE:Band1/2/3/4/5/7/8/20/28A/28B |
|
3G |
UMTS(WCDMA)/HSPA+/DC- HSDPA:850/900/1900/2100MHz |
|
|
2G |
GSM/EDGE:850/900/1800/1900MHz |
|
|
Expansion and Peripherals |
|
|
Camera |
8MP camera with LED flash and auto-focus function; Support camera scanning |
|
GPS |
GPS, A-GPS, BDS |
|
Slot |
Micro SD/TF, Micro SIM |
|
Interfaces |
3.5mm Audio port, 9PinMagnetic pogo pin(With USB and charging functions, Support wired scanner) |
|
Audio |
Loudspeaker, Microphone |
|
Standard Accessories |
Power adaptor, USB-Magnetic pogo pin data cable, Instructions, Wristband |
|
Optional Accessories |
Battery charger, ring scanner |
|
User Environment |
|
|
Operating Temperature |
-10℃~ 50℃ |
|
Storage Temperature |
-20℃~ 70℃ |
|
Humidity |
5%RH- 95%RH (non-condensing) |
|
Drop Durability |
1.5m |
|
IP |
IP65 |
SMP02 2D barcode Bluetooth glove scanner specification:
|
Product name
|
Industrial Glove Barcode Reader
|
|||
|
Model name
|
MS02
|
|||
|
Dimensions
|
57.0×42.0×24.4 mm (L×W×H)
95×140mm（Glove size） |
|||
|
Weight
|
84.8grams（Without Sling/gloves）
|
|||
|
Material
|
Polycarbonate housing with overmold( PC+TPU)
|
|||
|
Battery
power |
Capacity
|
550mAh
|
||
|
Standby
|
> 30 days
|
|||
|
Charge time
|
2 hours
|
|||
|
Duration
|
Continuous trigger
scanning interval |
Decoding
number |
Working
time |
|
|
1S
|
16800
|
4.7hours
|
||
|
5S
|
6400
|
8.9hours
|
||
|
10S
|
3700
|
10.3hours
|
||
|
Scan Engine
|
SE2707
|
SE965
|
N1
|
|
|
Barcode
Type |
1D
|
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13,
Bookland EAN, ISSN EAN,Code 128, GS1-128 (formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Reduced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Code |
||
|
2D
|
PDF417, MicroPDF417, Code 128 Emulation, Data
Matrix,Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Posta |
|||
|
Environmental
parameters |
Drop
resistance |
Pass 200 times 1.5m drop test
|
||
|
temperature
|
Operating: -5°C to 50°C
|
|||
|
Storage: -20°C to 60°C
|
|
|||
|
Humidity
|
5% to 90% (non-condensing)
|
|||
|
Electrical
|
Power: DC5V/1A;Operating
Current Typical: 300mA |
|||
|
CPU
|
32bit ARM CPU
|
|||
|
Data storage
|
100KB for offline mode: 6000
15 bytes barcodes |
|||
|
Working mode
|
b luetooth mode, offline mode and RS232
mode(optional) |
|||
|
Communication
|
Blue tooth HID, SPP, BLE(optional) with
30M distance, Support NFC pairing, RS232 cable(optional) |
|||
|
OS
|
IOS, Android, Windows, Mac
|
|||
|
Scan mode
|
Manual mode, Continuous, Host, Sense
mode |
|||
|
Ambient
illumination |
0~107,639 lux
|
|||
|
Scanner
performance |
Sensor Type
|
640 (horizontal) × 400 (vertical)
pixels |
||
|
|
Light
|
610nm LED(Aiming LED),
660nm red LED(Illumination) |
||
|
|
Scanner Angle
|
±60°,±60°,±360°
(skew, pitch, Roll) |
||
|
|
Field of View
|
Horizontal: 42° ,
Vertical: 28° |
||
|
|
Contrast
|
≥20%
|
||
|
Decoding depth &
Max. Resolution (1 mil = 0.0254 mm) |
Code 39
|
51mm -162mm (5mil);
|
||
|
Code 128
|
63mm -127mm (5mil);
|
|||
|
PDF417
|
63mm -160mm (6.6mil);
|
|||
|
PDF417
|
45mm - 228mm (10mil);
|
|||
|
100%UPC
|
50mm -317mm (13mil);
|
|||
|
Code 39
|
50mm - 495mm (20mil);
|
|||
|
Data Matrix
|
38mm - 343mm (20mil);
|
|||
|
QR Code
|
38mm -279mm (20mil).
|
|||
|
Certificate
|
CE, Rohs, FCC, IP65, IEC, EC/
EN60950, EC/EN62471 |
|||
| Products Model | SMP WT04 Android Ruggedised Wearable Computer + SMP02 2D glove barcode scanner |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | Wearable |
| Manufacturer | SMP |
