Orca 50 Android 12.0, 4G IP64 WiFi, BT, 2D barcode, UHF RFID handheld data terminal

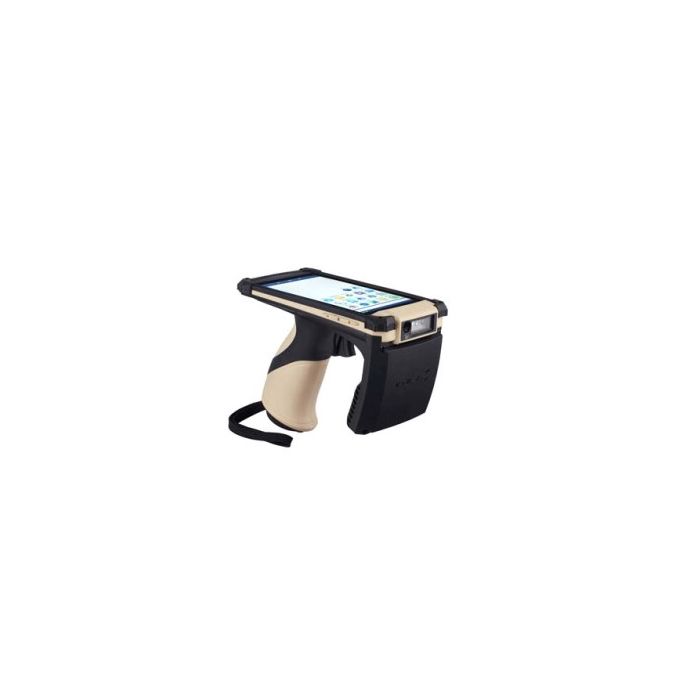

The Orca 50 is a pistol style handheld data terminal. Being rugged and versatile, the Orca 50 is designed to meet the scanning needs in transportation & logistics, and warehousing. Under the full protection of IP64 standards and 2 m drop resistance, it effectively captures data from even the harshest environments.
High Performance Computing Platform
Heavy duty applications such as massive data collection,3D real-time display can be operated smoothly.
Android 12.0
Android 12.0 system is installed,optimized version is continuously updated.
Top Class Materials
CNC aluminum, nylon(Bayer) and 1.1mm thickness tempered glass offer excellent strength + heat dissipation + electromagnetic shielding.The soft material around the handle offers comfort.
Industrial Grade Components
Industrial and military-grade components ensure stability and endurance in harsh environments.
Ultra Long Operating Time
Pistol style hot-swapping battery system makes backup battery more convenient to be restored,so that the operating time is unlimited.A standard product package has two 6,000mAh batteries included.
High End UHF RFID Engine
The M-2600 module which is designed by RodinBell is based on impinj Indy R2000 chip,offers the best performance and excellent multi-tag identification ability in the industry.
Outstanding Industrial Design
The idea was inspired by orca,and each single detail has been well refined.The appearance is compact,elegant and balanced,which makes the product eye-catching and impressive.
Excellent Mechanical Protection
The safety drop height is 2m/6.56ft,IP64 protection grade can resist dusts and splashes effectively
Mechanical Parameters
Materials CNC aluminum + nylon (Bayer)
Dimensions Profile 160*82*129mm
Grip 111*38*47mm
Weight 640g (including battery/standard version)
System Characteristics
Operating System: Android 12.0
CPU: Quad-core Cortex-A17 / 1.8GHz
GPU: ARM Mail- T764 / High performance 3D engine
RAM: 2G LPDDR3
4G LPDDR3 (Optional)
ROM: 32G EMMC 5.0
64G EMMC 5.0(Optional)
LCD: 5.0 inches / 1280*720 / IPS / 180°view angle
Touch Screen: 1.1mm thickness tempered glass / 10-dot touch / can be operated with gloves
PSAM PSAM*1 / TI TCA5013(Optional)
Buttons
Power / Volume*2 3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles
Function keys 3ALPS buttons / Operating force 2.2N / Operating life 600,000 cycles
Scan Trigger OMRON button / Operating force 1.27N / Operating life 10,000,000 cycles
Power 6000mAh chargeable Li-polymer battery
Card Slots Micro SIM card slot / PSAM card slot*2
USB Interface Micro USB / MOLEX connector / Operating life 10,000 cycles
Audio Large speaker stereo system
Vibrator Button style/ 10mm diameter
Charge Indicator Bicolor LED
Wireless Communications
WiFi IEEE802.11b/g/n
Bluetooth Bluetooth 4.0
3G Huawei MU 609 / Vehicle grade (Optional)
4G Huawei MU 909s / / Vehicle grade (Optional)
Application Environment
Operating Temp -20°C -/+ 60°C
Storage Temp -40°C -/+ 70°C
Humidity 5%RH – 95%RH (Non condensing)
Protection Grade IP64
Safety Drop Height 2m / 6.56ft
Data Collections
1D Barcode (Optional)
Engine Motorola EM1350
Support UPC/EA Symbol SE955N / Code128 / Code39 / Code93 / Code11/ Interleaved 2 of 5 / Discrete 2 of 5 / Chinese 2 of 5 / Codabar / MSI / RSS etc.
2D Barcode (Optional)
Engine Honeywell N3680
Support Data matrix / QR Code / PDF417 / US Planet / UK Postal etc.
UHF RFID
Engine RodinBell M-2600 module based on impinj Indy R2000 chip
Buzzer 12*9.5mm / 2300 ± 300Hz
Protocol EPC Global UHF Class 1 Gen 2 / ISO 18000-6C / ISO 18000-6B
Work Frequency 840-960MHz
Output Power 0 – 33dBm
Peak Inventory Speed ＞500 tags/s
UHF Antenna 3dBi circularly polarized antenna
Read Distance 6 – 7m (Tested tag : impinj E41b)
Camera( Optional) 13 megapixels / automatic focus / flashlight
GPS GPS & GLONASS
| Products Model | Orca 50 Android 12.0, 4G IP64 WiFi, BT, 2D barcode, UHF RFID term |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Operating system | Android |
| Manufacturer | Rodinbell |
