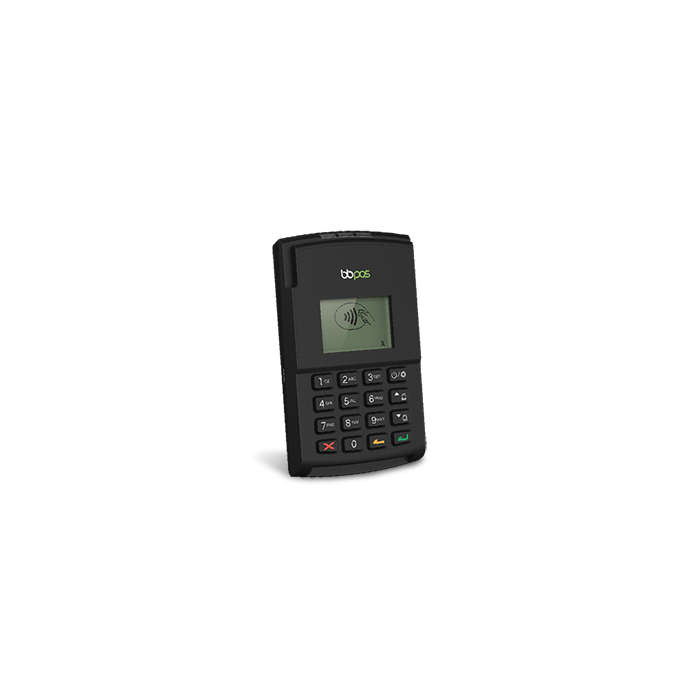

WisePad 2 Bluetooth + WiFi + 3G Enabled + Magstripe EMV + NFC
$283.92 $236.60
In stock
SKU
WPC23
WisePad™ 2 Bluetooth® ,WiFi and 3G enabled magstripe EMV and NFC Card Reader
WisePad™ 2 builds on the success of the original WisePad™ adding NFC capability and multi-connectivity. Now you can truly meet customers wherever they need you to be, with the same leading mPOS security you can trust.
Standalone
WisePad™ 2 is a PCI PTS, EMV L1, L2 and EMV Contactless L1 compliant mPOS device which enables payments via NFC, chip-based, or magnetic stripe cards. Using a micro USB or Bluetooth® connection, WisePad™ 2 can act as a peripheral to your point-of-sale or, using WiFi or GPRS, WisePad™ 2 serves as a standalone mPOS device.
WisePad™ 2 Bluetooth® ,WiFi and 3G enabled magstripe EMV and NFC Card Reader
WisePad™ 2 builds on the success of the original WisePad™ adding NFC capability and multi-connectivity. Now you can truly meet customers wherever they need you to be, with the same leading mPOS security you can trust.
Standalone
WisePad™ 2 is a PCI PTS, EMV L1, L2 and EMV Contactless L1 compliant mPOS device which enables payments via NFC, chip-based, or magnetic stripe cards. Using a micro USB or Bluetooth® connection, WisePad™ 2 can act as a peripheral to your point-of-sale or, using WiFi or GPRS, WisePad™ 2 serves as a standalone mPOS device.
Widely Compatible
“Anytime, anywhere” payment acceptance just became faster, more convenient, and more efficient – WisePad™ 2 takes mPOS capabilities to the next level.
Triple Track Magstripe, EMV and NFC Card Reader with Secure PIN Pad
WisePad™ 2 Specifications
Functions
- EMV chip card reader (ISO7816 compliant class A, B, C card)
- Triple track magnetic stripe card reader
- NFC card reader (EMV contactless, ISO 14443A/B)
- Secure PIN pad
- Over-the-air firmware update
- Over-the-air key update
- Over-the-air terminal configuration
Display
128 x 64 dots, Backlit dot-matrix LCD display
Buttons
10 numerical buttons, enter, cancel & clear buttons, power/setting button, up & down buttons
Communication Interface
mPOS mode – Bluetooth® 2.1, Micro USB
Standalone mode – WiFi, GPRS (optional) / 3G (optional)
Connectivity
Dual SAM cards OR single SAM card & single SIM card if with GPRS/3G
Power & Battery
Lithium polymer rechargeable battery 750mAh, 3.7V
Charging
Via Micro USB or charging contacts (charging cradle optional) 2-3 hours for fully charged
Indicator
LED status indicator
Light Indicator
Two Blue light on: Ask consumer to insert/swipe
Four Dedicated LEDs: Follow EMV contactless standard
Buzzer
Piezo buzzer
Key Management
DUKPT, MK/SK
Encryption Algorithm
TDES
Firmware Update
Supported by over-the-air and USB, store in serial flash
Bluetooth Distance
Around 10m
Swipe Speed
15cm – 100cm/sec
Battery Life
Above 600 EMV transactions, or above 2200 magnetic card swipe transactions, or above 650 EMV contactless transactions, or 12 hrs BLE broadcasting for one fully charge
Support Operation Systems
- Android 2.1 or above
- iOS 6.0 or above
- Windows Phone 8 or above
- Microsoft Windows
Operating Temperature
0℃ – 45℃
Operating Humidity
Maximum 95%
Storage Temperature
-20℃ – 55℃
Storage Humidity
Maximum 95%
Certifications*
- PCI PTS v4.1 with SRED
- EMV Contact L1 & L2
- EMV Contactless L1
- VISA payWave
- MasterCard PayPass
- AMEX ExpressPay
- Discover Contactless D-PAS
- VISA Ready
- MasterCard TQM
- MasterCard Mobile POS
- Discover Network ZIP
- PBOC 3.0 L1 & L2
- QPBOC 3.0 L1 & L2
- FCC, CE, RoHS
- UnionPay QuickPass
- Apple MFi
Dimensions & Weight
| Products Model | WisePad 2 Bluetooth + WiFi + 3G Enabled + Magstripe EMV + NFC |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | BBPOS |
