Asreader ASR-022D 2D Barcode Scanner w/ LASER Crosshair Aimer for iOS
The ASR-022D from the AsReader series is a case-type barcode reader designed for the iPhone/iPod touch. It features a separate structure for the main unit and the case, ensuring compatibility with future terminals. It supports various one-dimensional and two-dimensional barcodes, including QR Code, Aztec, RSS, and Composite, as well as codes from the US and UK.
Asreader ASR-022D 2D Barcode Scanner w/ LASER Crosshair Aimer for iOS

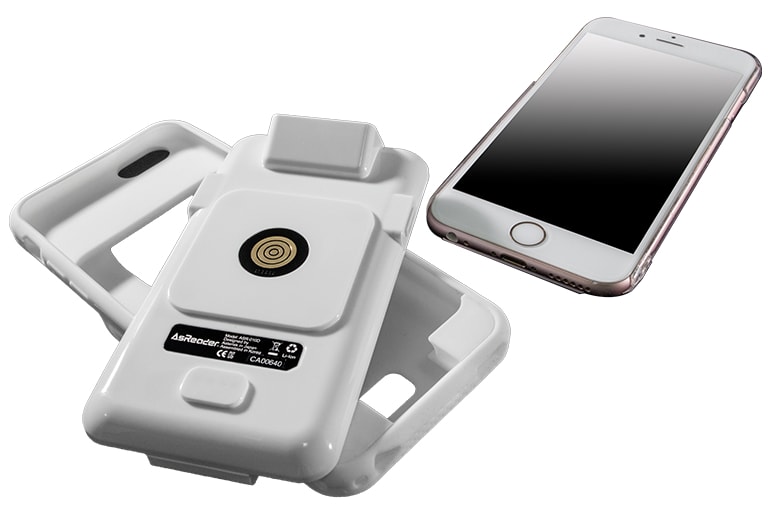

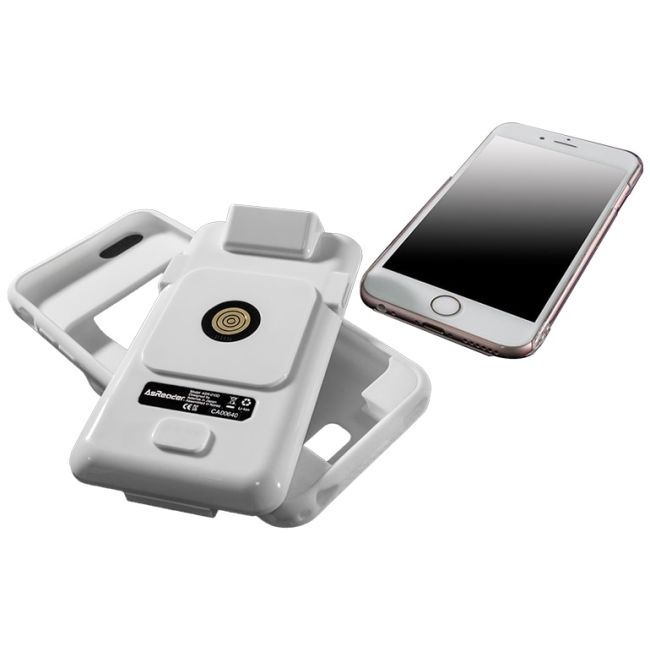

The ASR-022D is a barcode reader from the AsReader series that can be attached to an iPhone or iPod touch. To enhance compatibility with future devices, it features a separate design that distinguishes the body from the case section, utilizing a Lightning connection.
This barcode reader supports a wide range of one-dimensional barcodes as well as two-dimensional barcodes, including QR Codes, Aztec codes, RSS codes, and Composite codes. It is also compatible with specific barcodes used in the United States and the United Kingdom.
Specifications:
|
Model Name |
ASR-022D,ASR-022D-V4 |
|
|---|---|---|
|
Barcode |
Reading method |
CMOS Sensor |
|
Readable range |
■Barcode density : Reading distance from tip of scanner 100% U.P.C. : 46 mm ‒ 419 mm CODE 39 - 5 mil : 64 mm ‒ 163 mm CODE 39 - 10 mil : 28 mm ‒ 338 mm PDF417 - 6.7 mil : 46 mm ‒ 185 mm Data Matrix - 10 mil : 53 mm ‒ 203 mm |
|
|
Reading width |
42.4° (horizontal), 33° (vertical) |
|
|
Reading angle |
Pitch: ±45° Roll: 360° Skew: ±60° (*1) |
|
|
Readable barcodes |
■1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5,Code 2 of 5, Matrix 2 of 5, MSI, Telepen, Trioptic, China Post ■2D Stacked: PDF417, MicroPDF417, GS1 Composite ■2D Matrix: Aztec Code, Data Matrix, QR Code, Micro QR Code, MaxiCode, Han Xin Code ■Postal: Intelligent Mail Barcode, Postal-4i, Australian Post, British Post, Canadian Post, Japanese Post,Netherlands (KIX) Post, Postnet, Planet Code |
|
|
Light source |
Illumination: White LED ; Aimer: Laser (Class 2) |
|
|
Power source |
Battery capacity |
Built-in rechargeable lithium-ion battery (700mAh) |
|
Number of scans |
Approx. 34,000 (*2) |
|
|
Charging method |
Magnetic charging cable (*3) |
|
|
Charging time |
Approx. 2 hours (built-in battery)(*4) |
|
|
Key input |
2 trigger key |
|
|
Communication |
Interface |
MFi on Lightning® (*5) |
|
Appearance |
Dimensions (W)x(D)x(H) |
63.7 * 9.7 * 117.2 mm (2.51 * 0.38 * 4.61 inch) (*6) |
|
Weight (with battery） |
Approx. 70g |
|
|
Material |
PC |
|
|
Casing color |
White |
|
|
LED display |
Blue LED: Connected with device / Blinking Blue LED: Reading / Red LED: Battery is being charged / Faint Red LED: Battery is fully charged |
|
|
Environment |
Operating temperature |
-10～45 C, 20～85 % RH (Charge at 0 C o r more, however) |
|
Storage temperature |
-20～60 C, 10～95 % RH |
|
|
IP Rating |
IP54 compliant |
|
|
Anti-drop |
(Six-sided * 4 e dge, o nce each) 1.5 m ( 59.06 inch) (*7) |
|
|
Certificate |
Apple MFi / FCC / CE / RoHS |
|
|
Requirments |
OS |
iOS14 or later |
|
Apple MFi / FCC / CE / RoHS |
Magnetic charging cable |
|
※1 Varies depending on barcode type
※2 Number of times by using our demo app when the BEEP sound, vibration and illumination are all set to ON.
※3 Standard iPhone® 2A charger is recommended for the magnetic charging cable.
※4 iPhone® and AsReader battery will be recharged simultaneously.
※5 A specialised SDK for communication via Lightning is available for download.
※6 Excluding protrusions
※7 The iPhone® screen may break depending on the drop angle.
| Products Model | Asreader ASR-022D 2D Barcode Scanner w/ LED Red Dot Aimer ASR-022D-V4 for iOS |
|---|---|
| Barcode scanner | 2D scanner |
| Device type | PDA sled |
| Operating system | iOS |
| Manufacturer | Asreader |
