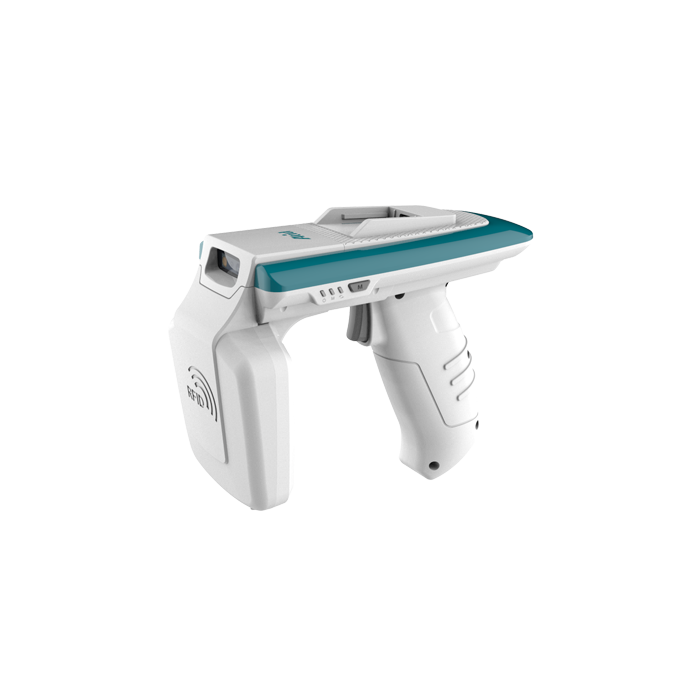

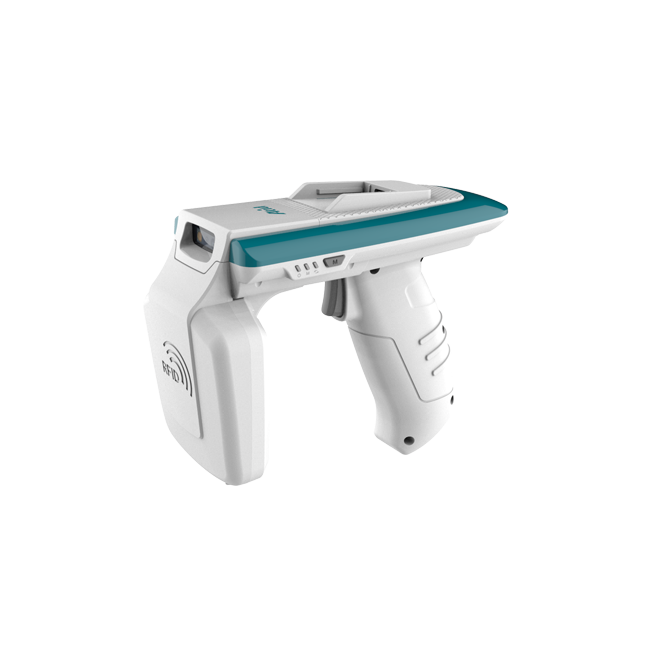

ATID XC-ATS100 RAIN UHF RFID Sled Reader with 2D barcode reader for iOS, Android and Windows smartphones
Main Features of XC-ATS100 RAIN RFID Sled Reader
ARM7 Core Processor
Onboard 8Mb Flash memory
RAIN RFID (UHF) Reader
1D or 2D Imager Barcode Scanner
Bluetooth 4.1 Classic (HID/SPP), BLE (Option)
IP65 RAIN RFID reader
Specifications of XC-ATS100 RAIN RFID Sled Reader
| PERFORMANCE CHARACTERISTICS | |
| Processor | ARM7 Core |
| Supported Platforms | Windows, Android, iOS (BLE Only) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions (W x L x H) |
76.1 x 173.7 x 139.8 mm (without QUARD LOCK |
| Weight | 420g (with Battery) |
| Power | 5,200mAh Li-ion Battery |
| USB Interface | 1 USB Port / USB Type-C |
| Notification | LED Indication, Buzzer, Vibrator |
| DATA CAPTURE | |
| RFID (UHF) | Protocol : EPC GEN2, ISO/IEC 18000-6C Reading Range : ~6m (Depending on environment and tag type) Writing Range : ~0.5m (Depending on environment and tag type) RF Output : 1W (30dBm, MAX) Antenna : Circular Patch Antenna / 1 dBi
Support Frequency (Optional) |
| Barcode | 2D Engine (Support to read 1D & 2D Barcode) |
| WIRELESS COMMUNICATION | |
| Bluetooth | BT V2.1 + EDR / BLE V4.1 |
| USER ENVIRONMENT | |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -30℃ to 70℃ |
| Humidity | 5~95% (non – condensing) |
| Drop Specification | 1.5m |
| Dust & Water Proof | IP65 |
| Products Model | ATID XC-ATS100 RAIN UHF RFID Sled Reader with 2D barcode reader |
|---|---|
| Barcode scanner | 2D scanner |
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Manufacturer | ATID |
