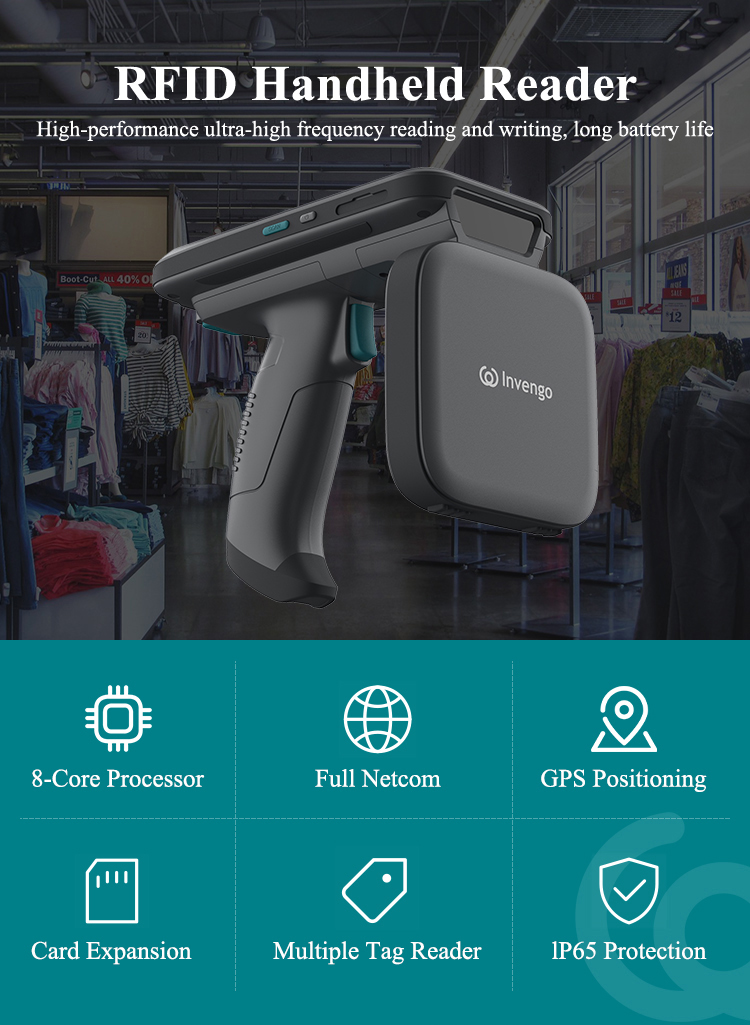

Invengo XC2908 long range Android WIFI wireless UHF RFID portable reader is a portable reader with strong performance. It has unique RFID technologies (self-developed UHF module + quadrifilar helix antenna + multi-label algorithm). It equips with lmpinj R2000 chip. The dual batteries are able to switch power intelligently, which can provide ultra-long working time and guarantee stable UHF working capability. The reader has the characteristics of high gain and long-distance antenna recognition.
Main Features of XC2908 Handheld Reader
Self-developed UHF module, quadrifilar helix antenna, multi-label algorithm
Dual battery, 250+ hours long standby time
Excellent multi-label, remote reading and writing ability(600 times/s)
Reading distance up to 20mt
Supports various types of labels(optional bar code or QR code modules)
Specifications of XC2908 Handheld Reader
Physical | Dimensions (L x W x H) | 170 x 78 x 150mm ± 2mm |
Weight | 710g | |
Display Screen |
5.5-inch IPS HD full screen, 720 x 1440 resolution |
|
Touch Screen |
Corning Gorilla 3rd generation industrial grade multi-touch capacitive screen, Support operation with gloves or wet hands |
|
Keypad | 1 power button, 2 scan keys, | |
2 volume buttons | ||
Audio | Earpiece, speaker, microphone | |
External Port | Type-C, OTG | |
Expansion Slot |
1 SIM card slot, 1 card slot supports SIM or TF card (Nano) |
|
Sensor | Gravity, distance, light | |
Performance | CPU |
MT6765 eight-core 64-bit processor, 2.3GHz |
OS | Android10.0 | |
RAM+ROM |
3GB+32GB 4GB+64GB(Optional) 6GB+128GB(Optional) |
|
Internal Expansion | 128GB Micro SD | |
Drop Spec. | 1.3m | |
Protection | IP65 | |
Certification | 3C,UN38.3,FCC | |
Battery | Battery Capacity |
Amount:10000mAh, dual battery and intelligent power supplying Main battery:5000mAh Battery of Handle:5000mAh |
Adapter | AC110V to 240V, DC5V/3A | |
Working Hour | > 10h (Depending on usage) | |
Charging Duration | 3h to 4h | |
Standby Time | > 250h | |

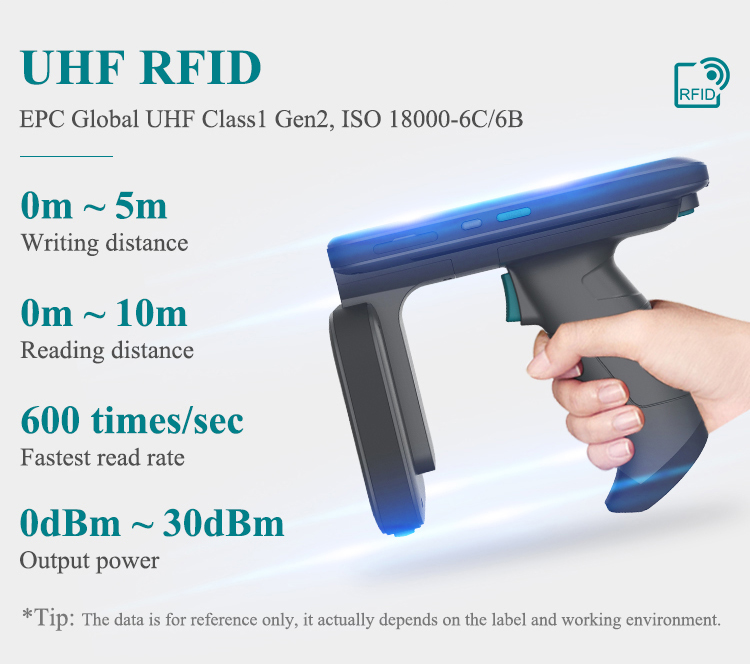

RAIN RFID (UHF) | Chip | Impinj R2000 |
Protocol |
EPC Global UHF Class1 Gen2, ISO 18000-6C |
|
Frequency | 840MHz to 960MHz | |
Region of Appliacation | Universal | |
RF Output | 0 to 30 dBm | |
Reading Range |
Reading distance can reach 20m in a outside surrounding |
|
Writing Range |
0 to 5m (Depending on the environment and tag type) |
|
Maximum Read Rate | 600 time/s | |

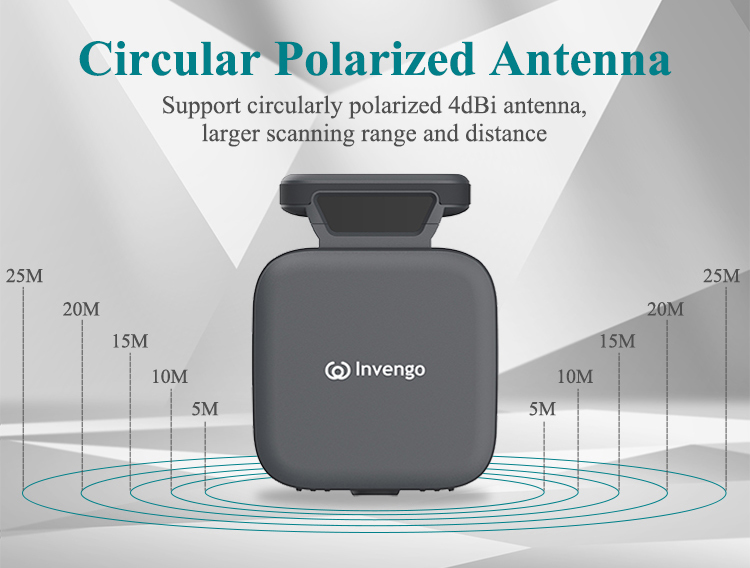

Type of Antenna | Circular | |
Network and Wireless | WWAN | 4G |
WLAN | IEEE802.11a/b/g/n/ac, 2.4GHz and 5GHz | |
Bluetooth | V5.0 | |
GNSS | GPS, A-GPS, BeiDou, GLONASS | |
Environmental | Operating Temp. | -20°C to 50°C |
Storage Temp. | -40°C to 70°C | |
Humidity | 5% to 95% RH | |
Supporting | Barcode Module (optional) | Zebra: SE4710/SE4750, Honeywell:N6603,N1 |
Camera |
Front camera 5 million pixels, The rear camera has 13 million pixels with flash and autofocus |
|
Accessories |
Adapter, USB cable, Screen protection film |
|
Develop Environment |
Invengo software developing kit. Support Java. |
Products Model | Invengo XC2908 long range Android WIFI wireless UHF RFID portable reader |
---|---|
Barcode scanner | 2D scanner |
RFID reader | UHF RFID |
Device type | Pistol grip |
Operating system | Android |
Manufacturer | Invengo |
