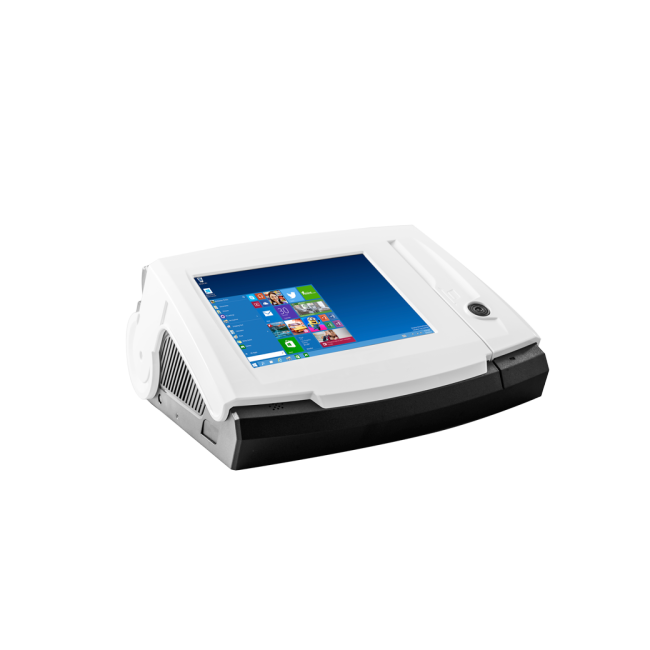

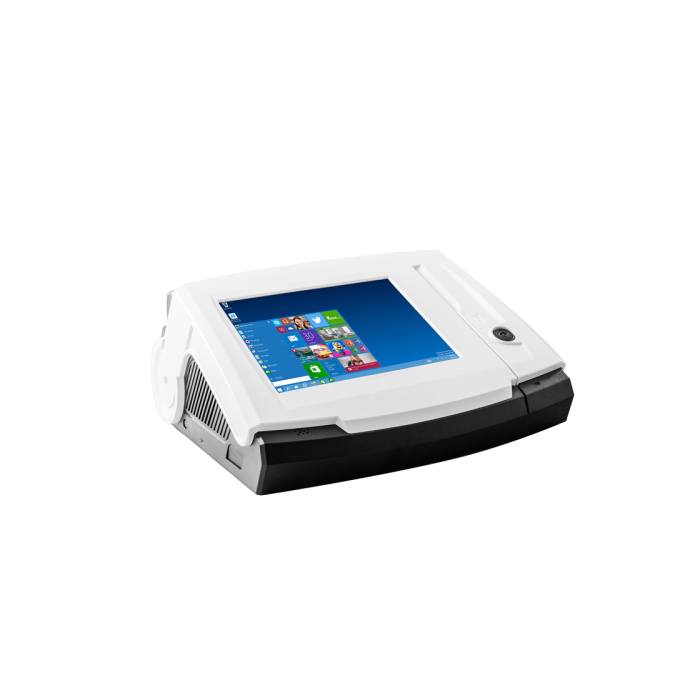

Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal
B960 / Ivy Bridge / i7 / i5 / i3 / J1900
D525
System
CPU Support
Intel® Atom™ Dual Core D525 1.8Ghz CPU Intel® Pentium® Processor B960 Intel® Ivy Bridge Intel® Core™ i7 / i5 / i3 / Dual Cores CPU Intel® Celeron®Processor Bay-Trail J1900 ( 2M Cache , up to 2.42GHz)
Memory
Support up to 4GB DDR3 / 8G DDR3
Core Logic
Intel NM10 / HM76 / BayTrail
Net Work
Network 10/100/1000 Base-T Fast Ethernet
Power Supply
24V Power Adaptor (D525 ) / 12V Power Adaptor (B960/ Ivy Bridge / i7 / i5 / i3 / J1900 )
Color
Dark Grey / White
System weight
4.5 kgs
Dimension (WxHxD) mm
358 x 167.5 x 345 mm
O/S
Windows XP / XPE , WEPOS , POS Ready 2009 , Windows 7 (Windows 8 , Windows 10 Ivy Bridge and Baytrail platform only)
Storage
HDD
1 x 2.5″ SATA HDD
SSD
SSD SATA Interface Max.1TB
eMMC
N/A
Micro SD
N/A
I/O Ports
Serial Ports
3 x external COM ( w/ +5V, +12V selectable )
USB Ports
5 x external USB Ports
mPCIe
1 x internal
Ethernet
1 x 10/100/1000 Mbps (RJ45)
PS/2
1 x PS / 2 Keyboard / Mouse port
VGA
1 x DB-15 VGA Interface
Parallel Port
1 x DB25
Audio
1 x 2W speaker (Optional)
Cash Drawer
1 x RJ11
DC-IN
24V DC-IN(D525); 12V DC-IN(J1900. Core i3, i5, i7)
Power Switch
1 x Power Switch
Display
LCD
9.7″ TFT LCD Panel
Max. Resolutiion
1024 x 768
Brightness
350 nits
Touch Screen
5 wires resistive touch panel
HDMI
N/A
Environmental
Operating Condition
0°C ~ 40°C, 20%RH ~ 90%RH
Storage Condition
-20°C ~ 60°C, 10%RH ~ 90%RH
Peripheral Options
Printer
80mm easy loading thermal printer with auto cutter Printing Speed: 200mm / sec.RS232 (default) / Epson Commands Compatible
Customer Display
VFD Type, 20 columns x 2 lines, each column 5×7 dotsRS232 (Default) Multi-language / Epson Commands
MSR
ISO Track 1/2/3 USB (default), JIS-I or II
i-button
Read only, USB interface
Wireless LAN
Mini PCIe Wireless LAN Module 802.11 b/g/n
RFID
ISO 14443A, UrtraLight,Mifare@PRO, DESfire
Fingerprint
Yes
Scanner
External
Safety standards
CCC / CE / FCC
More Information Products Model Dynamic POS 9.7" Intel Celeron J1900 160GB Windows All-in-one POS Terminal Operating system Windows Screen size 9.7 inch Manufacturer PosLab
