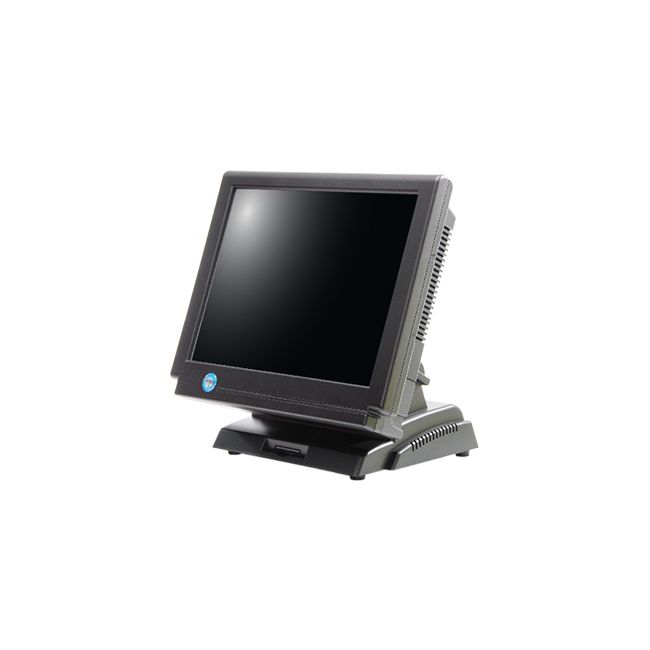

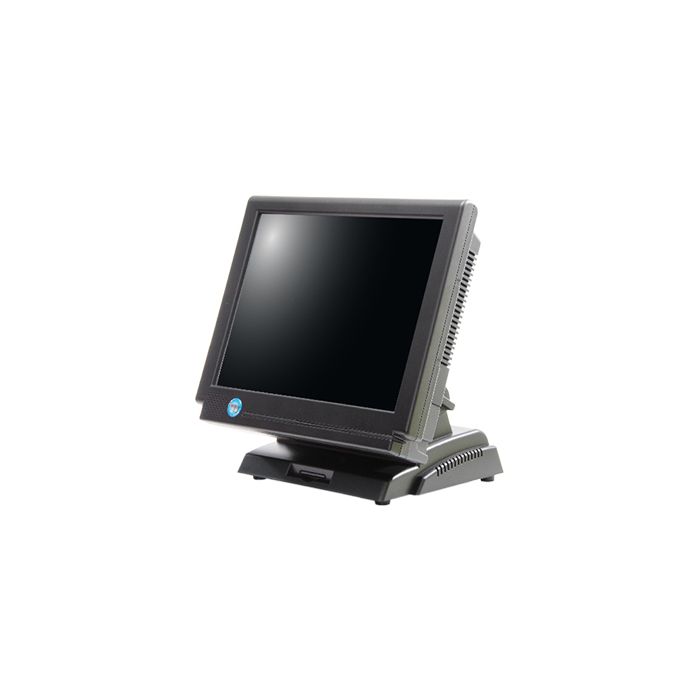

WAVEPOS-50 15" Windows All-in-one POS Terminal Solution
US$674.39 US$561.99
In stock
SKU
WAVEPOS50
Poslabs WAVEPOS-50 15" LCD, Intel ATOM D525 Duo Core 1.8GHz, 2GB RAM, 320GB HDD, Windows All-in-one POS Terminal Solution
Mobile POS Tech is partnering with PosLab to introduce the latest Poslabs WAVEPOS-50 15", Intel ATOM D525 Duo Core 1.8GHz, 2GB RAM, 320GB HDD, Windows All-in-one POS Terminal Solution as the entry level system in the WAVEPOS-50 range. The WAVEPOS-50 series provides a flexible platform with optional integrated, MSR reader, RFID, 2nd LCD monitor I-Button and VFD functionality in a compact format. The WAVEPOS-50 terminal is powered by Windows offering a fully featured operating system supporting custom POS applications.
Poslabs WAVEPOS-50 15" LCD, Intel ATOM D525 Duo Core 1.8GHz, 2GB RAM, 320GB HDD, Windows All-in-one POS Terminal Solution
Mobile POS Tech is partnering with PosLab to introduce the latest Poslabs WAVEPOS-50 15", Intel ATOM D525 Duo Core 1.8GHz, 2GB RAM, 320GB HDD, Windows All-in-one POS Terminal Solution as the entry level system in the WAVEPOS-50 range. The WAVEPOS-50 series provides a flexible platform with optional integrated, MSR reader, RFID, 2nd LCD monitor I-Button and VFD functionality in a compact format. The WAVEPOS-50 terminal is powered by Windows offering a fully featured operating system supporting custom POS applications.
All-in-one POS Terminal Solution
Intel Duo Core Processors
Compact design
Flexible Installation with Expandability
Cost effective solution
Versatile Combination
Industrial circuit and components designed
Specifications:
System :
| CPU Support | Intel ATOM Dual Core D525 1.8Ghz CPU Intel® Pentium® Processor B960 Intel IVY Bridge Intel® Core i5 / i3 / Dual Cores CPU Intel® Celeron®Processor Bay-Trail J1900 ( 2M Cache , up to 2.42GHz) |
|---|---|
| Memory | Support up to 4GB DDR3(D525) Support up to 8GB DDR3(Baytrail and HM76) |
| Core Logic | Intel NM10 / HM76/ BayTrail |
| Network | 10/100/1000 Base-T Fast Ethernet |
| Power Supply | 12 V Power Adaptor |
| System weight | 8.5 kgs |
| Dimension (WxHxD) |
320 x350 x 250mm |
| O/S Compliat | Windows XP/XPE, WEPOS, POSReady 2009, Win 7, Win8 (Ivy Bridge and Baytrail platform only) |
Storage :
| HDD |
1 x 2.5" SATA HDD |
|---|---|
| SSD |
SSD interface Max.512GB |
I/O Ports :
| USB | 7 ports, 3 internal (one reserved for touch screen) and 4 external. |
|---|---|
| Serial Ports |
6 x COM ( w/ +5V, +12V selectable ), 2 internal and 4 external. |
| PS/2 |
1 x PS/2 keyboard port |
| LAN |
1 x 10/100/1000 Mbps (RJ45) |
| VGA |
1 x DB-15 VGA Interface |
| Parallel | 1xDB25 |
| Audio |
AC'97 Codec Audio |
| Cash Drawer |
1xRJ11 |
| DC-IN |
12V DC-IN |
| Power Switch | 1 x Power Switch |
Display :
| LCD |
15”TFT LCD Panel |
|---|---|
| Max. Resolutiion |
1024x768 |
| Brightness |
250 nits |
| Touch Screen | 5 Wire resistive touch panel |
Peripheral Options :
| Printer |
TP-260 |
|---|---|
| Customer Display | VFD Type: 20 columns x 2 lines, each column 5x7 dots LCD Type: 8" or 10" LCD |
| MSR |
JIS-I or II, ISO Track 1/2/3 USB (default) |
| i-button |
Read only, USB interface |
| Color |
Dark Grey |
| Fingerprint |
Fingerprint module (USB HID interface) |
| RFID | ISO 14443A, UrtraLight, Mifare@PRO, DESfire |
Features:
| Total Solution | Multi-Adjustable Angles | |
| Variety For Customer Display | CF Card Extension | |
| Wires Resistive Touch |
| Products Model | WAVEPOS-50 15" Windows All-in-one POS Terminal Solution |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | PosLab |
