Generalscan GS R1520 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner FE260S/ 600mAh Battery *1
R152X Flexgrip Scanner Series

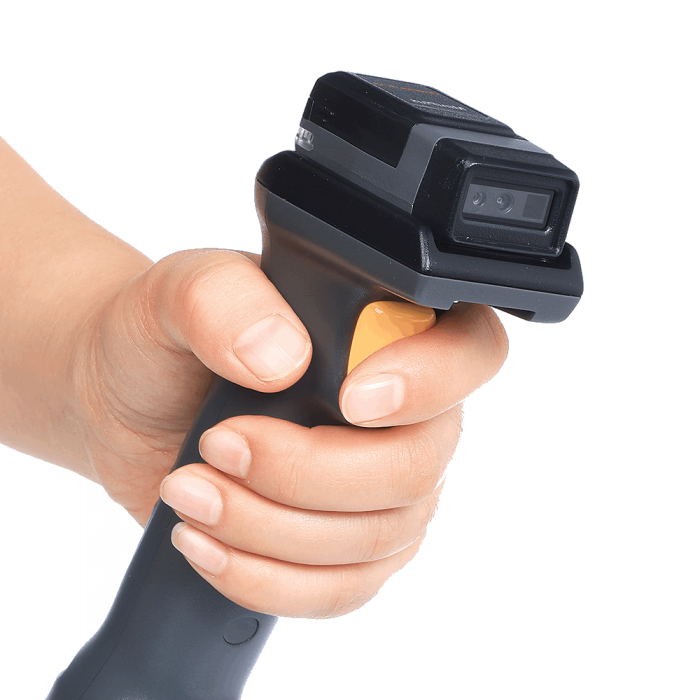

Generalscan Flexgrip adapts for maximum user preference and comfort
Flexgrip permits scanners to switch freely among different wearing styles, allowing users to choose the most traditional and convenient option for their specific needs, reducing fatigue, increasing comfort, especially during long shifts.
Specifications for R152X Flexgrip Scanner Series
|
|
R1521 Flexgrip Barcode Scanner |
R1522 Flexgrip Barcode Scanner |
|
Dimension |
74.8mm(L)×34.7mm(W)×25.3mm(D) 2.94in.(L)×1.37in.(W)×1.0in.(D) |
74.8mm(L)×34.7mm(W)×25.3mm(D)2.94in.(L)×1.37in.(W)×1.0in.(D) |
|
Battery Capacity |
600mAh |
600mAh |
|
Weight |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
|
Engine |
GS GEA101 |
Honeywell N4680 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±55° from normal Pitch tolerance: ±55° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±50° from normal Pitch tolerance: ±50° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal:±43°；Vertical:±32° |
Horizontal:±20°；Vertical:±15° |
|
Charging Time |
120min |
120min |
|
Battery Life |
18h(scan every 5 seconds) |
12.8h(scan every 5 seconds) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
13mil EAN-13 50-325mm 5mil Code39 55-135mm 13mil Code128 50-330mm 15mil QR 30-190mm 10mil Data Matrix 40-130mm 6.67mil PDF417 50-135mm |
5mil Code39 45-180mm 10mil Code39 36-360mm 20mil Code39 71-747mm 5mil Code128 56-158mm 10mil Code128 33-321mm 20mil Code128 53-598mm 100% UPCA 46-390mm 7mil PDF417 55-163mm 10mil PDF417 42-247mm 20mil PDF417 81-490mm 7mil QR 70-125mm 10mil QR/Data Matrix 40-182mm 20mil QR 36-367mm |
| Products Model | Generalscan GS R1520 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner FE260S/ 600mAh Battery *1 |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Generalscan |
