Generalscan GS R1522 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner N4680/ 600mAh Battery *1
$330.72 $275.60
In stock
SKU
R1522-R02+GHR201-S
Generalscan GS R1522 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner N4680/ 600mAh Battery *1
Generalscan GS R1522 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner N4680/ 600mAh Battery *1

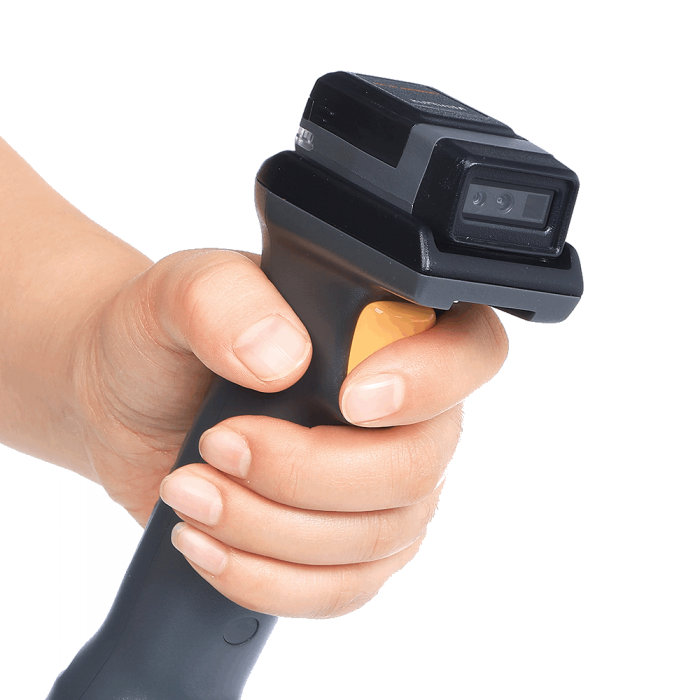

R152X Flexgrip Scanner Series
Generalscan Flexgrip adapts for maximum user preference and comfort
Flexgrip permits scanners to switch freely among different wearing styles, allowing users to choose the most traditional and convenient option for their specific needs, reducing fatigue, increasing comfort, especially during long shifts.
Global shutter enhances image clarity, making them ideal for fast barcode scanning
With global shutter, scanners capture the entire image simultaneously, reducing motion artifacts and improving image quality in fast-paced environments.This technology is particularly advantageous in industrial, logistics, or retail settings with dynamic scanning requirements.
With global shutter, scanners capture the entire image simultaneously, reducing motion artifacts and improving image quality in fast-paced environments.This technology is particularly advantageous in industrial, logistics, or retail settings with dynamic scanning requirements.
White LED illumination offers advantages in capturing high-quality images for barcode scanning
The white LED illumination enhances visibility and contrast, allowing the scanner to accurately read barcodes in various lighting conditions. This is particularly useful in environments where consistent and reliable barcode scanning is crucial, such as retail or healthcare applications. The white LED illumination also contributes to energy efficiency and can improve the overall performance of the scanner in terms of speed and precision.
Increase Productivity and Reduce the Need for Multiple Devices
By allowing the user to choose the most efficient wearing style for their task, Flexgrip scanners can improve operational efficiency. Workers can perform their tasks more quickly and comfortably, which can increase overall productivity. Instead of requiring different scanners for various tasks or user preferences, one device with multiple wearing options can cater to a broader range of needs. This consolidation can lead to cost savings and simplified device management.
Specifications for R152X Flexgrip Scanner Series
|
|
R1521 Flexgrip Barcode Scanner |
R1522 Flexgrip Barcode Scanner |
|
Dimension |
74.8mm(L)×34.7mm(W)×25.3mm(D) 2.94in.(L)×1.37in.(W)×1.0in.(D) |
74.8mm(L)×34.7mm(W)×25.3mm(D)2.94in.(L)×1.37in.(W)×1.0in.(D) |
|
Battery Capacity |
600mAh |
600mAh |
|
Weight |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
With standard battery ：48g /1.69oz With extended battery：50g /1.76oz |
|
Engine |
GS GEA101 |
Honeywell N4680 |
|
Sensor |
2D CMOS Image |
2D CMOS Image |
|
Skew, Pitch & Roll |
Skew tolerance: ±55° from normal Pitch tolerance: ±55° from normal Roll tolerance: 360° from normal |
Skew tolerance: ±50° from normal Pitch tolerance: ±50° from normal Roll tolerance: 360° from normal |
|
Field of view |
Horizontal:±43°；Vertical:±32° |
Horizontal:±20°；Vertical:±15° |
|
Charging Time |
120min |
120min |
|
Battery Life |
18h(scan every 5 seconds) |
12.8h(scan every 5 seconds) |
|
Bluetooth Profiles |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
HID Keyboard, SPP, and Bluetooth low energy(BLE) |
|
USB Interface |
USB Type-C |
USB Type-C |
|
USB Profiles |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
USB HID Keyboard, USB VCP (Virtual Serial Port) |
|
Drop Spec. |
Multiple 4.9ft./1.5m drops to concrete |
Multiple 4.9ft./1.5m drops to concrete |
|
Tumble Spec. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
Scanner body withstands 20,000 times from 3.3ft./1M with frequency of 10 times per minute. |
|
Electrostatic Discharge (ESD) |
±8kVdc contact discharge; ±15kVdc air discharge |
±8kVdc contact discharge; ±15kVdc air discharge |
|
Certification |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
CE, FCC, KC, TELEC, RoHS, ANATEL, NOM, EAC |
|
Decode Range |
13mil EAN-13 50-325mm 5mil Code39 55-135mm 13mil Code128 50-330mm 15mil QR 30-190mm 10mil Data Matrix 40-130mm 6.67mil PDF417 50-135mm |
5mil Code39 45-180mm 10mil Code39 36-360mm 20mil Code39 71-747mm 5mil Code128 56-158mm 10mil Code128 33-321mm 20mil Code128 53-598mm 100% UPCA 46-390mm 7mil PDF417 55-163mm 10mil PDF417 42-247mm 20mil PDF417 81-490mm 7mil QR 70-125mm 10mil QR/Data Matrix 40-182mm 20mil QR 36-367mm |
| Products Model | Generalscan GS R1522 2D imager Scan Engine Flexgrip-Wireless Barcode Scanner N4680/ 600mAh Battery *1 |
|---|---|
| Barcode scanner | 2D scanner |
| Manufacturer | Generalscan |
