iDC9608AW 1D (OPTICON MDL-2001- 1D Laser engine) Pocket wearable
$294.84 $245.70
In stock
SKU
iDC9608AW

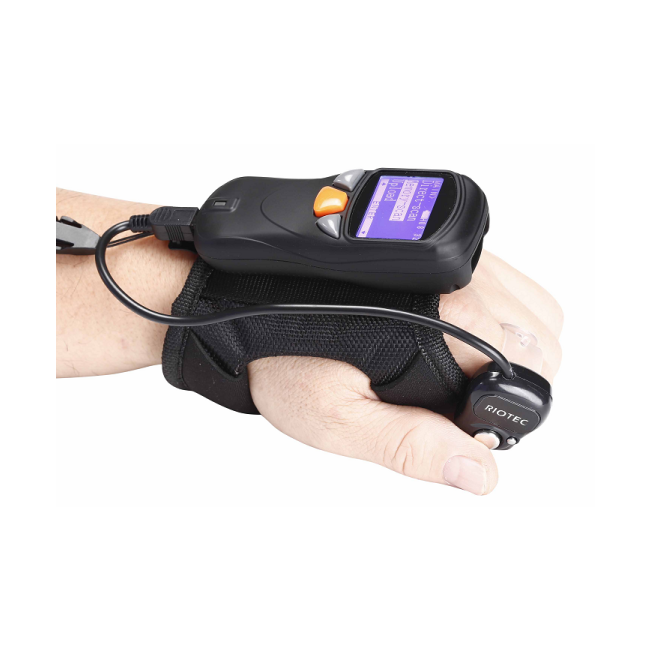

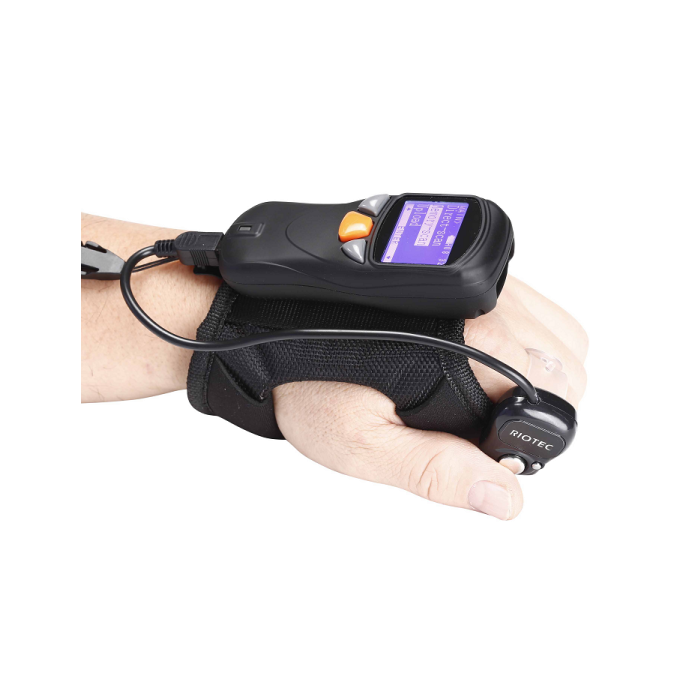

iDC9608AW 1D (OPTICON MDL-2001- 1D) Pocket wearable scanner for Android / iOS device with holder & trigger switch
Product Description
Different from others, we design the hand-free glove for pocket
barcode scanner use. You can use pocket scanner directly or
with hand-free glove.
Through Bluetooth, iDC9608AW can work with Android/iOS/
Windows device well.
In addition, we adopts Bluetooth Class 1 module and its transmission
distance can reach 100m in open area.
˙ Pocket-size design: 100 x 43 x 27mm
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch, its left button can raise & lower on-screen keyboard (press for 4 seconds)
˙ Charging: via USB cable
iDC9608AW 1D (OPTICON MDL-2001- 1D) Pocket wearable scanner for Android / iOS device with holder & trigger switch
Product Description
Different from others, we design the hand-free glove for pocket
barcode scanner use. You can use pocket scanner directly or
with hand-free glove.
Through Bluetooth, iDC9608AW can work with Android/iOS/
Windows device well.
In addition, we adopts Bluetooth Class 1 module and its transmission
distance can reach 100m in open area.
˙ Pocket-size design: 100 x 43 x 27mm
˙ Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch, its left button can raise & lower on-screen keyboard (press for 4 seconds)
˙ Charging: via USB cable
Product Character
|
Scanner(Data Collector) Specifications： |
|||
|
Model Name |
iDC9607AW |
||
|
Description |
2.4 GHz Wireless Barcode Scanner |
||
|
Engine |
Ultra-long range CCD engine |
||
|
Performance Characteristics |
|||
|
˙ |
Light Source |
610nm~640nm Red LED |
|
|
˙ |
LCD Panel |
|
Dots: 128 x 64 |
|
˙ |
Depth of Field (There are +/- 1cm tolerance ) |
|
Code 39 (5mil): 65mm~175mm EAN-13 (13mil): 55mm ~ 605mm |
|
˙ |
Scan Speed |
|
300 scans/sec |
|
˙ |
Best Resolution |
|
4 mil |
|
˙ |
Print Contrast |
|
≧30% |
|
˙ |
Scan Angle |
|
Pitch ±60° @ 0° Roll and 0° Skew |
|
Indicators |
|
green/red LED & beeper |
|
|
˙ |
Charge |
|
Mini USB port |
|
˙ |
Symbologies |
|
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, GS1 Databar, Code 39, |
|
˙ |
Interface |
|
through BT |
|
Electrical Characteristics |
|||
|
˙ |
Input voltage |
5 V/DC ± 5% |
|
|
˙ |
Current - operating |
180 mA |
|
|
˙ |
Radio Range |
|
BT Class 1 (100m, in open area) |
|
˙ |
RF Frequency |
|
2.4GHz |
|
˙ |
Communication |
|
HID profile, SPP profile |
|
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
|
˙ |
Scans per charge |
|
more than 25,000 scans when fully charged |
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
˙ |
Current Charging |
|
500 mA Max. |
|
˙ |
Power cable |
Mini USB cable |
|
|
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
|
Physical Characteristics |
|||
|
˙ |
Dimension |
Scanner 100 X 43 X 27 mm (L * W * H) |
|
|
˙ |
Weight |
Scanner 72 g +/- 5 g, Glove + Holder + Ring Trigger Cable 56g +/- 2g |
|
|
User Environment |
|||
|
˙ |
Temperature-operation |
0°C to 50°C |
|
|
˙ |
Temperature-storage |
-10°C to 60°C |
|
|
˙ |
Humidity-operation |
5% to 95% relative humidity, non-condensing |
|
| Products Model | iDC9608AW 1D (OPTICON MDL-2001- 1D Laser engine) Pocket wearable |
|---|---|
| Barcode scanner | 1D scanner |
| Manufacturer | Riotec |
