iDC9607AW 1D (ultra long range CCD) Pocket wearable scanner

iDC9607AW 1D (ultra long range CCD) Pocket wearable scanner for Android / iOS device with holder & trigger switch Product Description

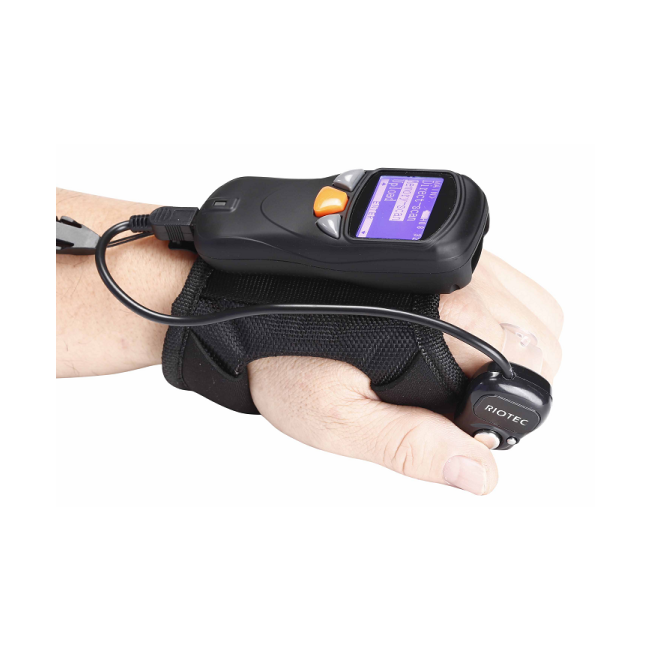

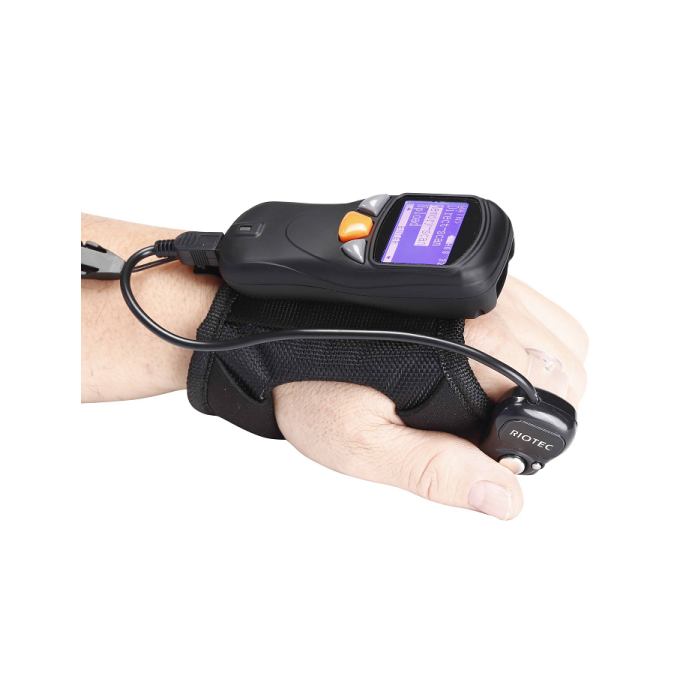

Different from others, we design the hand-free glove for pocket
barcode scanner use. You can use pocket scanner directly or
with hand-free glove.
Through Bluetooth, iDC9607AW can work with Android/iOS/
Windows device well.
In addition, we adopts Bluetooth Class 1 module and its transmission
distance can reach 100m in open area.

˙ Pocket-size design: 100 x 43 x 27mm
˙  Equipped with 1MB memory which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC960X series connect to iPhone/ iPad/ iPod Touch, its left button can raise & lower on-screen keyboard (press for 4 seconds)
˙ Charging: via USB cable





Product Character

Scanner(Data Collector) Specifications：


Model Name



iDC9607AW


Description



2.4 GHz Wireless Barcode Scanner


Engine



Ultra-long range CCD engine

Performance Characteristics

˙

Light Source



610nm~640nm Red LED

˙

LCD Panel
(with back Light)

　

Dots: 128 x 64
Viewing Area: 32 x 25 mm

˙

Depth of Field

(There are +/- 1cm tolerance )

　

  Code 39 (5mil): 65mm~175mm

EAN-13 (13mil): 55mm ~ 605mm

˙

Scan Speed

　

300 scans/sec

˙

Best Resolution

　

4 mil

˙

Print Contrast

　

≧30%

˙

Scan Angle

　

     Pitch ±60° @ 0° Roll and 0° Skew
     Roll ±30° @ Pitch and  0° Skew
Skew ±60° @ Roll and  0° Pitch


Indicators

　

green/red LED & beeper

˙

Charge

　

Mini USB port

˙

Symbologies

　

EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,

 Code 128, Code 93, ITF-6,
ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,

GS1 Databar, Code 39,
Code 11, MSI

˙

Interface

　

through BT

Electrical Characteristics

˙

Input voltage



5 V/DC ± 5%

˙

Current - operating



180 mA

˙

Radio Range

　

BT Class 1 (100m, in open area)

˙

RF Frequency

　

2.4GHz

˙

Communication

　

HID profile, SPP profile

˙

Battery Type

　

3.7V 900mAh Li-Ion battery

˙

Scans per charge

　

more than 25,000 scans when fully charged

˙

Charge Time

　

4 ~ 5 hours

˙

Current Charging

　

500 mA Max.

˙

Power cable



Mini USB cable

˙

Memory capacity

　

1MB (can save 65,000 sets more EAN 13 barcode)

Physical Characteristics

˙

Dimension



Scanner 100 X 43 X 27 mm  (L * W * H)

˙

Weight



Scanner 72 g +/- 5 g,  Glove + Holder + Ring Trigger Cable  56g +/- 2g

User Environment

˙

Temperature-operation



0°C to 50°C

˙

Temperature-storage



-10°C to 60°C

˙

Humidity-operation



5% to 95% relative humidity, non-condensing
