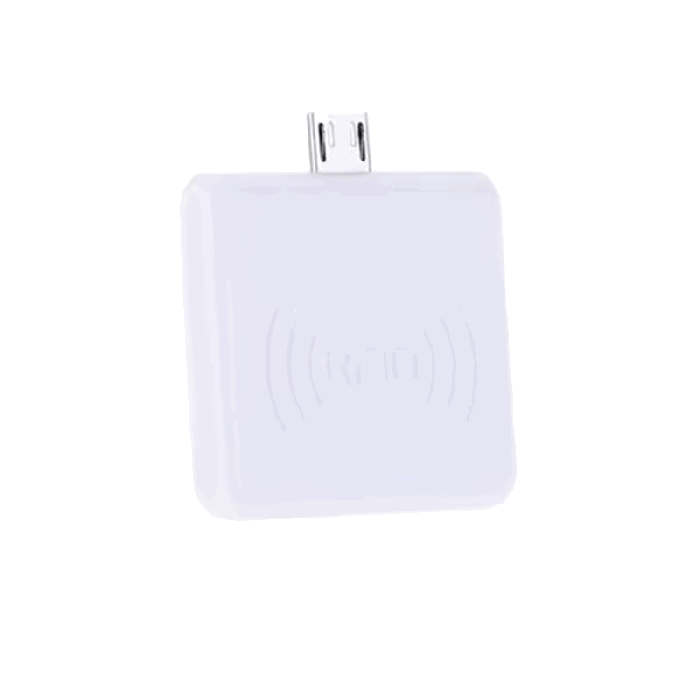

R65U Long Range 860-960MHZ UHF RFID mobile USB Writer with OTG Function
R65U Long Range 860-960MHZ UHF RFID mobile USB Writer with OTG Function
This product is an RFID reader that can directly collect data from RFID card via Mobile phone. This reader does not need any driver or other media. The frequency is 125KHZ/ 13.56MHz/860-960MHZ, using a microelectronics RF receiver module and embedded micro controller, combined with an efficient decoding algorithm and advanced data processing technology.
|
Item |
Parameters |
|
Model |
R65U(rfid uhf reader android) |
|
Frequency |
860-960MHZ |
|
Support cards |
H3,U7/U8/U9 |
|
Product Size |
35mm×35mm×7mm |
|
Packing Size |
71mm*71mm*19mm |
|
Color |
Black and White |
|
Interface |
USB |
|
Power Supply |
DC 5V |
|
Operating Distance |
0mm-80mm |
|
Service Temperature |
-10℃ ~ +70℃ |
|
Store Temperature |
-20℃ ~ +80℃ |
|
Working humidity |
<90% |
|
Read time |
<200ms |
|
Weight |
20G |
|
Gross Weight |
50G |
|
Material of reader |
ABS+PC |
|
Operating System |
Android(Test Brand: Samsung,Sony) |
| Products Model | R65U Long Range 860-960MHZ UHF RFID mobile USB Writer with OTG Function |
|---|---|
| RFID reader | UHF RFID |
| Device type | USB |
| Manufacturer | SMP |
