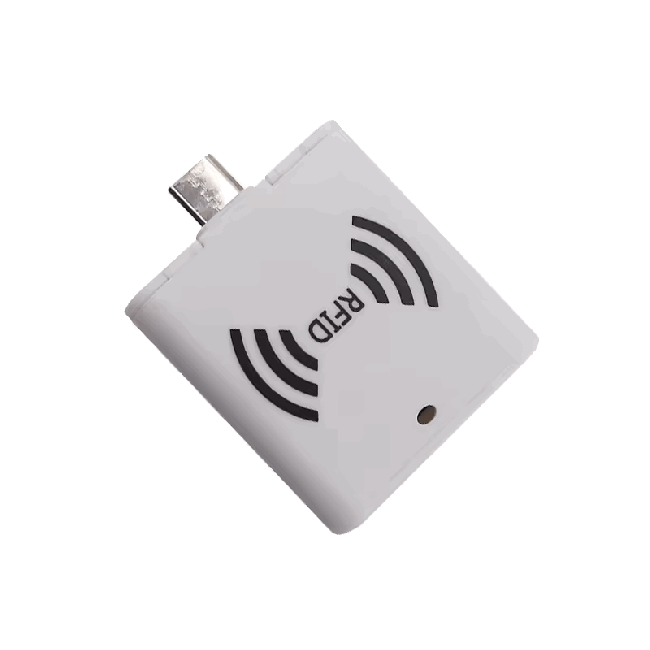

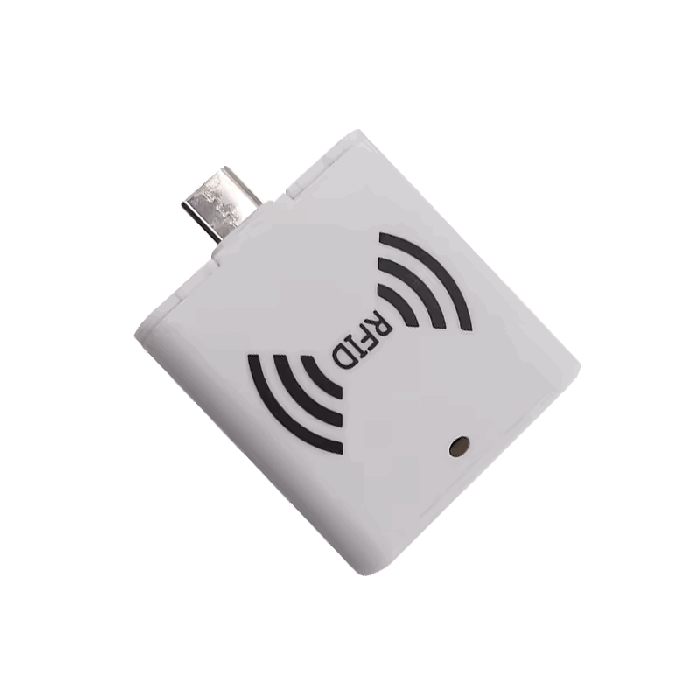

RF-902 900MHz UHF Reader Writer RFID USB Interface for Android Smartphone
RF-902 OTG reader is a small portable reader that can easily connect with an Android mobile phone by Mini USB or Type C interface, it can be 125KHz or 13.56MHz read-only or UHF reader write, it’s popular used in E-payment, library management, asset tracking, E-ticket checking, logistics, outdoor events, etc application.
Features
1. It can be 125KHz or 13.56MHz read-only, or UHF (902~928MHz) read write
2. Interface can be MINI USB or TYPE-C
3. Easily upload UID number to mobile phone
4. Small size, easily carrying
5. UHF read writer supports Android mobile phones, we offer an Android APP, to read up to 150CM depending on the tag
Specification
|
900MHz Smartphone Support UHF Reader Writer RFID USB Interface |
|
|
Frequency |
125KHz / 13.56MHz /UHF(902~928MHz) |
|
RF Output |
Max 25dBm |
|
Communication Interface |
MINI USB /TYPE-C |
|
Application Software |
Android SDK and APP |
|
Read distance |
2-7cm for 125KHz /13.56MHz; 20-150CM for UHF (depends on tag and environment) |
|
Working Mode for 125KHz /13.56MHz |
Read-only |
|
Working Mode for UHF |
Read/Write/Kill Tag/Lock Tag |
|
UHF Protocol |
EPC GEN2 ISO18000-6C |
|
Dimension |
MINI USB 35*35*8mm /Type-C 40*40*12mm |
|
Package size |
70*70*18mm |
|
Weight |
12g for reader, 40g (including box) |
|
Power Supply |
MINI USB / TYPE-C 5VDC |
|
Humidity |
5% ~95% |
|
Working Temperature |
-10 ~ +60 degree |
|
Storage Temperature |
-40 ~ +90 degree |
|
Application |
Library management, asset tracking, office file tracking, retail shop, outdoor/Exhibition E-ticket checking, Personal management etc |
MINI USB or TYPE-C Interface available
Easily connect to mobile phone
Supports different frequencies--125KHz or 13.56MHz or UHF (902~928MHz)
Small size--portable using outdoor
Free Android APP for read/write/lock/kill tag
Individual Strong Box For Each Reader
| Products Model | RF-902 900MHz UHF Reader Writer RFID USB Interface for Android Smartphone |
|---|---|
| Barcode scanner | 1D scanner |
| RFID reader | UHF RFID |
| Device type | USB |
| Manufacturer | SMP |
