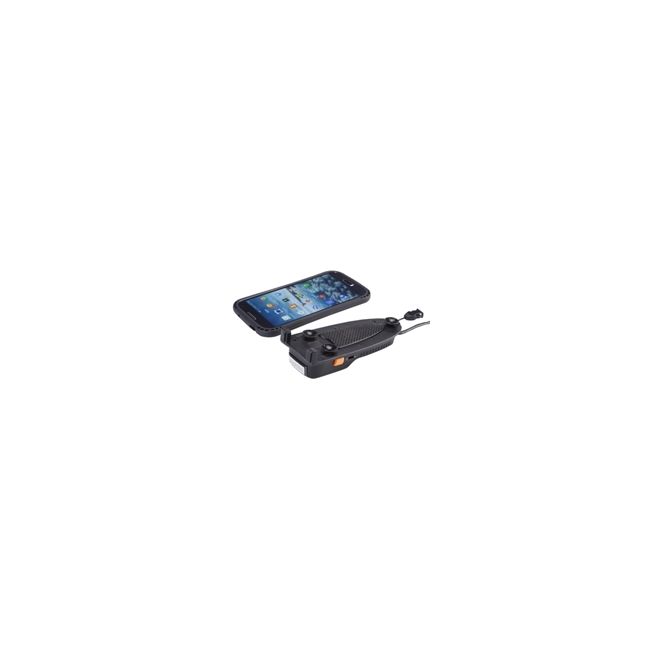

Riotec iDC9277A GODASCAN 1D CCD Bluetooth Barcode Scanner

Scanner(Data Collector) Specifications：

Model Name

iDC9277A

       DC9277A

Description

BT GODASCAN

    Wired GODASCAN

Engine

Ultra-long range CCD engine

Performance Characteristics

Light Source

610nm~640nm Red LED

Depth of Field

 UPCA (13mil): 50mm~620mm
EAN13 (13mil): 50mm~610mm

Scan Speed

300 scan/sec

Best Resolution

4 mil

Print Contrast

≧30%

Scan Angle

     Pitch ±60° @ 0° Roll and 0° Skew
     Roll ±30° @ Pitch and  0° Skew
Skew ±60° @ Roll and  0° Pitch

Indicators

beeper

Charge

Micro USB port

Symbologies

                 EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar,
                       Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5,
                       Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39,
                                                          Code 11, MSI

Interface

through BT

               USB OTG

Electrical Characteristics

Input voltage

5 V/DC ± 5%

Current - operating

170 mA

Radio Range

BT Class 1 (100m, in open area)

-

RF Frequency

2.4GHz

-

Communication

HID profile, SPP profile

-

Battery Type

3.7V 900mAh Li-Ion battery

Scans per charge

more than 25,000 scans when fully charged

Charge Time

4 ~ 5 hours

Current Charging

500 mA Max.

Power cable

Micro USB cable

Physical Characteristics

Dimension

125 X 52.5 X 35 mm  (L * W * H)

Weight

88 g +/- 5 g

User Environment

Temperature-operation

   '0°C to 50°C

Temperature-storage

-10°C to 60°C

Humidity-operation

20% to 95% relative humidity, non-condensing
