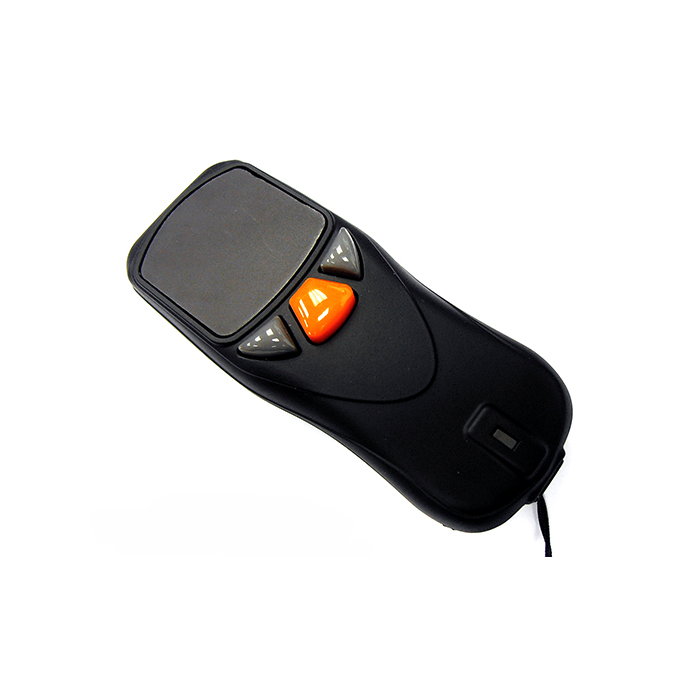

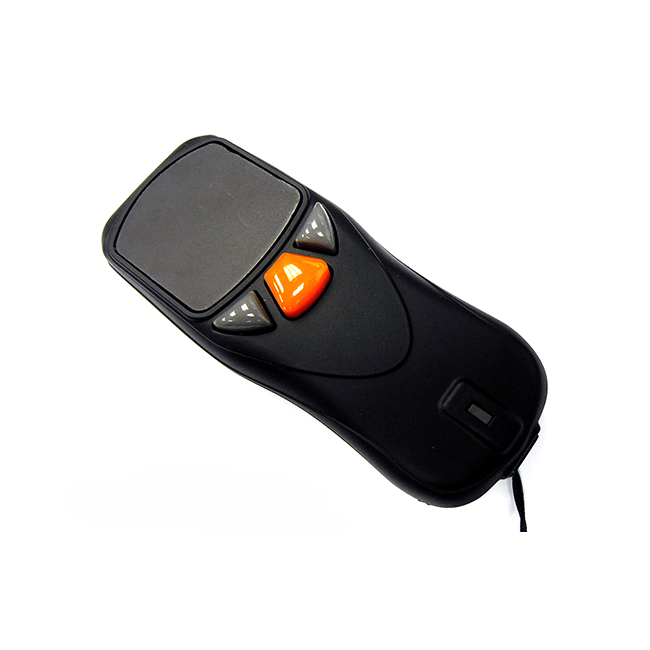

Riotec iDC9502A 1D laser (Motorola) Bluetooth barcode scanner

Pocket Barcode scanner

Features

˙ iDC9502A & DC9502A use Motorola SE955 laser engine
˙ iDC9502A supports Apple iOS, Android, and Windows devices through Wireless.
˙ DC9502A with USB cable: plug and scan, become wired barcode scanner
˙ DC9502A without USB cable: save the barcode data into memory
  and release to PC through USB cable
˙ Equipped with 1M memory which can save more than 65,000 EAN13 barcodes
˙ The ergonomic & lightweight design
˙ Charging: via USB cable

Scanner Specifications：

Model Name

iDC9502A

Description

Pocket Barcode Scanner

Engine

Motorola SE955

Performance Characteristics

Light Source

650 nm Laser Diode

Depth of Field

1430 mm
 (dependent on width of barcode)

Scan Speed

104(±)12 scans/sec (bi-directional)

Best Resolution

0.1 mm (4 mils) - Code 39

Print Contrast

Minimum 20% absolute dark/light reflectance measured at 650 nm

Scan Angle

47°±3° (typical)/ 35°±3°(narrow)

Indicators

green/red LED & beeper

charge

Mini USB port

Symbologies

UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN,
Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39,
Code 32 (Italian Pharma Code), Code 93, Code 11, Interleaved 2 of 5,
Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, GS1 DataBar

Interface

-

Electrical Characteristics

Input voltage

5 VDC ± 0.5 V

Current - operating

90 mA

Battery Type

3.7V 800mAh Li-Ion battery

Scans per charge

more than 10,000 scans when fully charged

Charge Time

4 ~ 5 hours

Current Charging

500 mA Max.

Power cable

5V DC Mini USB cable

Memory capacity

1MB (can save 65,000 sets more EAN 13 barcode)

Physical Characteristics

Dimension (L * W * H)

100 X 43 X 24.5 mm

Weight

66 g +/- 5 g

User Environment

Temperature-operation

    0°C to 50°C

Temperature-storage

-10°C to 60°C

Humidity-operation

5% to 95% relative humidity, non-condensing

Decode Zone

  4 mils Code 39

25 ~ 140 mm

  5 mils Code 39

32 ~ 203 mm

13 mils Code 39

38 ~ 610 mm

20 mils Code 39

44 ~ 838 mm

40 mils Code 39

* ~ 914 mm(*dependent on width of barcode)
