˙ Pocket-size "100 x 43 x 24.5mm", Easy carry; Easy use.
˙ Wide working area: Wireless Class 1 (iDC9507A)
˙ Supports Apple iOS, Android, and Windows devices
˙ Equipped with 1M memory which can store more than 65,000 EAN13
barcodes
˙ Two operation modes: "data transmission" or "batch mode"
˙ When iDC950X series connect to iPhone/ iPad/ iPod Touch,
its left button can raise & lower on-screen keyboard
˙ Charging: via USB cable
˙ Pocket-size "100 x 43 x 24.5mm", Easy carry; Easy use.
˙ Wide working area: Wireless Class 1 (iDC9507A)
˙ Supports Apple iOS, Android, and Windows devices
˙ Equipped with 1M memory which can store more than 65,000 EAN13
barcodes
˙ Two operation modes: "data transmission" or "batch mode"
˙ When iDC950X series connect to iPhone/ iPad/ iPod Touch,
its left button can raise & lower on-screen keyboard
˙ Charging: via USB cable
|
Pocket 1D barcode scanner |
|||
Features |
||||
|
˙ Pocket-size "100 x 43 x 24.5mm", Easy carry; Easy use. |
|||
Scanner(Data Collector) Specifications: |
||||
|
Model Name |
|
iDC9507A |
|
|
Description |
|
Wireless pokcet barcode scanner |
Pocket barcode scanner |
|
Engine |
|
Ultra-long range CCD engine |
|
Performance Characteristics |
||||
˙ |
Light Source |
|
610nm~640nm Red LED |
|
˙ |
Depth of Field |
|
UPCA (13mil): 50mm~620mm |
|
˙ |
Scan Speed |
|
300 scan/sec |
|
˙ |
Best Resolution |
|
3 mil |
|
˙ |
Print Contrast |
|
≧30% |
|
˙ |
Scan Angle |
|
Pitch ±60° @ 0° Roll and 0° Skew |
|
|
Indicators |
|
green/red LED & beeper |
|
˙ |
Charge |
|
Mini USB port |
|
˙ |
Symbologies |
|
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6,ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
|
˙ |
Interface |
|
through Wireless BT |
|
Electrical Characteristics |
||||
˙ |
Input voltage |
|
5 VDC ± 0.5 V |
|
˙ |
Current - operating |
|
170 mA |
|
˙ |
Radio Range |
|
Wireless Class 1 |
- |
˙ |
RF Frequency |
|
2.4GHz |
- |
˙ |
Communication |
|
HID profile, SPP profile |
- |
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
|
˙ |
Scans per charge |
|
more than 20,000 scans when fully charged |
|
˙ |
Charge Time |
|
4 ~ 5 hours |
|
˙ |
Current Charging |
|
500 mA Max. |
|
˙ |
Power cable |
|
5V DC Mini USB cable |
|
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
|
Physical Characteristics |
||||
˙ |
Dimension |
|
100 X 43 X 24.5 mm (L * W * H) |
|
˙ |
Weight |
|
66 g +/- 5 g |
|
User Environment |
||||
˙ |
Temperature-operation |
|
0°C to 50°C |
|
˙ |
Temperature-storage |
|
-10°C to 60°C |
|
˙ |
Humidity-operation |
|
20% to 95% relative humidity, non-condensing |

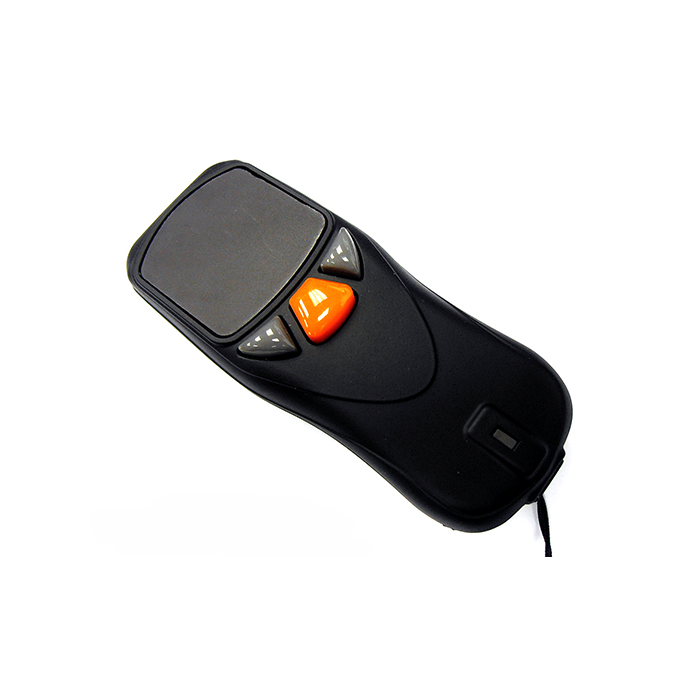

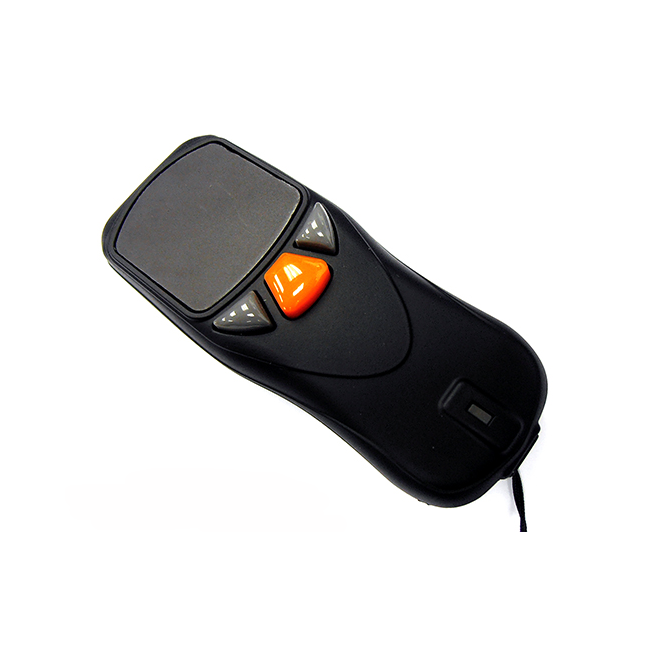

Products Model | Riotec iDC9507A 1D CCD laser Bluetooth barcode scanner |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Riotec |
