˙ Pocket-size design: 100 x 43 x 27mm
LCD panel size: 32 x 25mm (viewing area)
˙ 2.4GHz wireless: BT Class 1
˙ Supports Apple iOS, Android, and Windows devices through BT
˙ Equipped with 1MB memory which can store more than
65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
When iDC960X series connect to iPhone/ iPad/ iPod Touch,
its left button can raise & lower on-screen keyboard
(press for 4 seconds)
˙ Charging: via mini USB cable
Specification:
Pocket 1D barcode scanner |
|||
Features |
|||
|
˙ Pocket-size design: 100 x 43 x 27mm |
||
Scanner(Data Collector) Specifications: |
|||
|
Model Name |
|
iDC9602A |
|
Description |
|
2.4 GHz Wireless Barcode Scanner |
|
Engine |
|
Motorola SE955 |
Performance Characteristics |
|||
˙ |
Light Source |
|
650nm Laser Diode |
˙ |
LCD Panel |
|
Dots: 128 x 64 |
˙ |
Depth of Field |
|
1430 mm, (dependent on width of barcode) |
˙ |
Scan Speed |
|
104(±)12 scans/sec (bi-directional) |
˙ |
Best Resolution |
|
0.1 mm (4 mil) - Code 39 |
˙ |
Print Contrast |
|
Minimum 20% absolute dark/light reflectance measured at 650 nm |
˙ |
Scan Angle |
|
47°±3° (typical)/ 35°±3°(narrow) |
|
Indicators |
|
green/red LED & beeper |
˙ |
Charge |
|
Mini USB port |
˙ |
Symbologies |
|
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, MSI, GS1 DataBar |
˙ |
Interface |
|
through BT |
Electrical Characteristics |
|||
˙ |
Input voltage |
|
5 V/DC ± 5% |
˙ |
Current - operating |
|
90 mA |
˙ |
Radio Range |
|
BT Class 1 (100m, in open area) |
˙ |
RF Frequency |
|
2.4GHz |
˙ |
Communication |
|
HID profile, SPP profile |
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
˙ |
Scans per charge |
|
more than 25,000 scans when fully charged |
˙ |
Charge Time |
|
4 ~ 5 hours |
˙ |
Current Charging |
|
500 mA Max. |
˙ |
Power cable |
|
5 V/DC Mini USB cable |
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
Physical Characteristics |
|||
˙ |
Dimension |
|
100 X 43 X 27 mm (L * W * H) |
˙ |
Weight |
|
72 g +/- 5 g |
User Environment |
|||
˙ |
Temperature-operation |
|
0°C to 50°C |
˙ |
Temperature-storage |
|
-10°C to 60°C |
˙ |
Humidity-operation |
|
20% to 95% relative humidity, non-condensing |
Decode Zone |
|||
˙ |
4 mil Code 39 |
|
25 ~ 140 mm |
˙ |
5 mil Code 39 |
|
32 ~ 203 mm |
˙ |
13 mil Code 39 |
|
38 ~ 610 mm |
˙ |
20 mil Code 39 |
|
44 ~ 838 mm |
˙ |
40 mil Code 39 |
|
* ~ 914 mm (*dependent on width of barcode) |

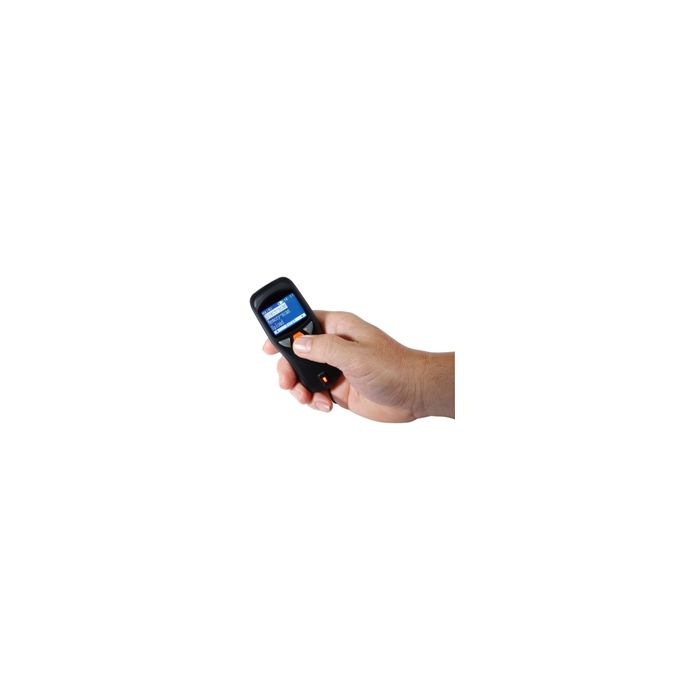

Products Model | Riotec iDC9602A 1D Bluetooth Scanner (Moto SE955, w/ Display) |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Riotec |
