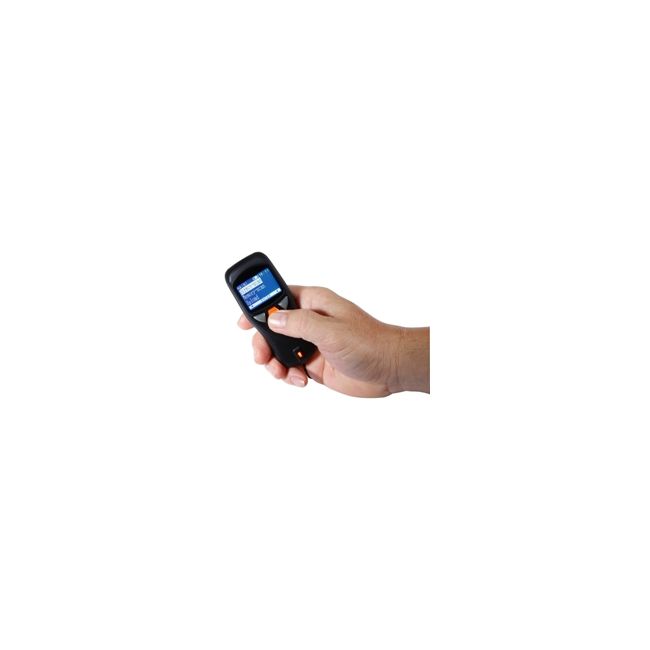

Riotec iDC9600 1D Bluetooth Scanner (w/ Display)
Riotec iDC9600 1D Mobil Pocket Memory Barcode laser scanner (with Display)
Smart Mobile POS is working with Riotec to launch the new range of iDC9600 series of Bluetooth Mobile Pocket Memory Barcode Scanners with built in LCD display and 1MB memory for mobile barcode scanning applications. The barcode scanners connect to any Bluetooth enabled Apple iOS, Android and Windows tablet PCs and smartphones to provide wireless barcode finctionality in both retail and warehouse applications. The built LCD screen on the unit offers and easy paring and set up of the barcode scanner with your tablet PC or smartphone and view barcode data as it is scanned in.
Product Description
Riotec iDC9600 1D Mobil Pocket Memory Barcode laser scanner (with Display)
Smart Mobile POS is working with Riotec to launch the new range of iDC9600 series of Bluetooth Mobile Pocket Memory Barcode Scanners with built in LCD display and 1MB memory for mobile barcode scanning applications. The barcode scanners connect to any Bluetooth enabled Apple iOS, Android and Windows tablet PCs and smartphones to provide wireless barcode finctionality in both retail and warehouse applications. The built LCD screen on the unit offers and easy paring and set up of the barcode scanner with your tablet PC or smartphone and view barcode data as it is scanned in.
Product Description
˙ Pocket-size design: 100 x 43 x 27mm
LCD panel size: 32 x 25mm (viewing area)
˙ 2.4GHz wireless: BT Class 1
˙ Supports Apple iOS, Android, and Windows devices through BT
˙ Equipped with 1MB memory which can store more than
65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
When iDC960X series connect to iPhone/ iPad/ iPod Touch,
its left button can raise & lower on-screen keyboard
(press for 4 seconds)
˙ Charging: via mini USB cable
Specification:
Pocket 1D barcode scanner |
|||
Features |
|||
|
˙ Pocket-size design: 100 x 43 x 27mm |
||
Scanner(Data Collector) Specifications: |
|||
|
Model Name |
|
iDC9600 |
|
Description |
|
2.4 GHz Wireless Barcode Scanner |
|
Engine |
|
1D scanning engine |
Performance Characteristics |
|||
˙ |
Light Source |
|
650nm Laser Diode |
˙ |
LCD Panel |
|
Dots: 128 x 64 |
˙ |
Depth of Field |
|
1430 mm, (dependent on width of barcode) |
˙ |
Scan Speed |
|
104(±)12 scans/sec (bi-directional) |
˙ |
Best Resolution |
|
0.1 mm (4 mil) - Code 39 |
˙ |
Print Contrast |
|
Minimum 20% absolute dark/light reflectance measured at 650 nm |
˙ |
Scan Angle |
|
47°±3° (typical)/ 35°±3°(narrow) |
|
Indicators |
|
green/red LED & beeper |
˙ |
Charge |
|
Mini USB port |
˙ |
Symbologies |
|
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, Code 128, UCC/EAN-128, ISBT 128, Code 39, Trioptic Code 39, MSI, GS1 DataBar |
˙ |
Interface |
|
through BT |
Electrical Characteristics |
|||
˙ |
Input voltage |
|
5 V/DC ± 5% |
˙ |
Current - operating |
|
90 mA |
˙ |
Radio Range |
|
BT Class 1 (100m, in open area) |
˙ |
RF Frequency |
|
2.4GHz |
˙ |
Communication |
|
HID profile, SPP profile |
˙ |
Battery Type |
|
3.7V 900mAh Li-Ion battery |
˙ |
Scans per charge |
|
more than 25,000 scans when fully charged |
˙ |
Charge Time |
|
4 ~ 5 hours |
˙ |
Current Charging |
|
500 mA Max. |
˙ |
Power cable |
|
5 V/DC Mini USB cable |
˙ |
Memory capacity |
|
1MB (can save 65,000 sets more EAN 13 barcode) |
Physical Characteristics |
|||
˙ |
Dimension |
|
100 X 43 X 27 mm (L * W * H) |
˙ |
Weight |
|
72 g +/- 5 g |
User Environment |
|||
˙ |
Temperature-operation |
|
0°C to 50°C |
˙ |
Temperature-storage |
|
-10°C to 60°C |
˙ |
Humidity-operation |
|
20% to 95% relative humidity, non-condensing |
Decode Zone |
|||
˙ |
4 mil Code 39 |
|
25 ~ 140 mm |
˙ |
5 mil Code 39 |
|
32 ~ 203 mm |
˙ |
13 mil Code 39 |
|
38 ~ 610 mm |
˙ |
20 mil Code 39 |
|
44 ~ 838 mm |
˙ |
40 mil Code 39 |
|
* ~ 914 mm (*dependent on width of barcode) |
Products Model | Riotec iDC9600 1D Bluetooth Scanner (w/ Display) |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Riotec |
