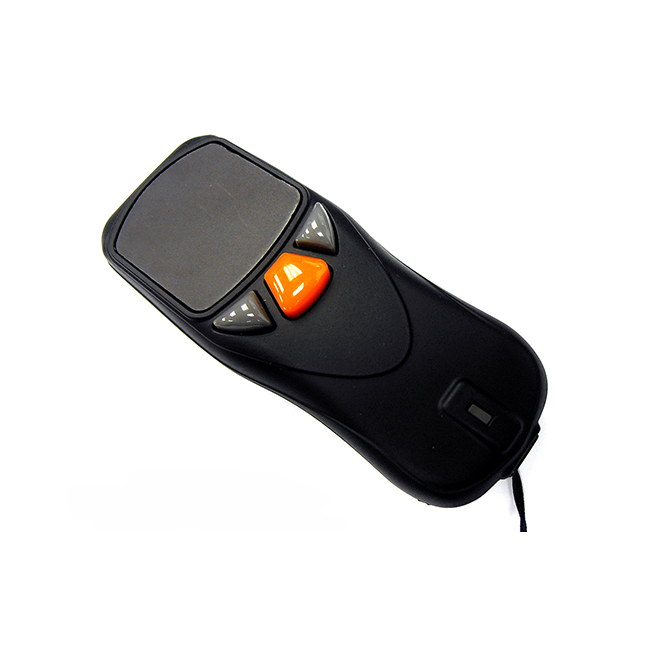

Riotec iDC9507K series 2D (Motorola) Bluetooth barcode scanner
Product Description
˙ Equipped with Motorola SE4500 2D engine.
˙ iDC9502K can connect to Apple iOS, Android, and Windows devices
through Wireless Class 1 communication.
˙ DC9502K with USB cable: plug and scan, becomes a wired scanner
˙ DC9502K without USB cable: saves the barcode data into memory
and releases to PC through USB cable
˙ Scan rate: 60 frames / sec.
˙ Equipped with 1M memory which can store more than 65,000
EAN13 barcodes
˙ Provides two operation modes: "data transmission" or
"batch mode"
˙ With 1 scan key + 2 function keys
˙ Charging: via USB cable
Product Description
˙ Equipped with Motorola SE4500 2D engine.
˙ iDC9502K can connect to Apple iOS, Android, and Windows devices
through Wireless Class 1 communication.
˙ DC9502K with USB cable: plug and scan, becomes a wired scanner
˙ DC9502K without USB cable: saves the barcode data into memory
and releases to PC through USB cable
˙ Scan rate: 60 frames / sec.
˙ Equipped with 1M memory which can store more than 65,000
EAN13 barcodes
˙ Provides two operation modes: "data transmission" or
"batch mode"
˙ With 1 scan key + 2 function keys
˙ Charging: via USB cable
Pocket 2D barcode scanner |
|||
Features |
|||
˙ Pocket-size design: 100 x 43 x 24.5mm |
|||
Scanner Specifications: |
|||
Model Name |
iDC9502K |
|
|
Description |
2.4 GHz Wireless Barcode Scanner |
|
|
Engine |
Motorola SE 4500 |
||
Performance Characteristics |
|||
Light Source |
Aiming LED: 650 nm Laser Diode |
||
Depth of Field |
1D (100% UPC/EAN):430 mm |
||
Scan Speed |
60 frame /sec |
||
Best Resolution |
1D (4 mils) - Code 39 |
||
Print Contrast |
≧25% |
||
Scan Angle |
Tilt: 360° / Pitch ±60° / Skew ±60° |
||
Indicators |
green/red LED & beeper |
||
charge |
Mini USB port |
||
Symbologies |
UPC-A, UPC-E, UPC-E1, EAN-8, EAN-13, Bookland EAN, |
||
Interface |
- |
|
|
Electrical Characteristics |
|||
Input voltage |
5 VDC ± 0.5 V |
||
Current - operating |
450 mA |
||
Radio Range |
Bluetooth Wireless Class 1 |
- |
|
RF Frequency |
2.4GHz |
- |
|
Communication |
HID profile, SPP profile |
- |
|
Battery Type |
3.7V 800mAh Li-Ion battery |
||
Scans per charge |
more than 6,000 scans when fully charged |
||
Charge Time |
4 ~ 5 hours |
||
Current Charging |
500 mA Max. |
||
Power cable |
5V DC Mini USB cable |
||
Memory capacity |
1MB (can save 65,000 sets more EAN 13 barcode) |
||
Physical Characteristics |
|||
Dimension (L*W*H) |
100 X 43 X 24.5 mm |
||
Weight |
66 g +/- 4 g |
||
User Environment |
|||
Temperature-operation |
0°C to 50°C |
||
Temperature-storage |
-10°C to 60°C |
||
Humidity-operation |
95% relative humidity, non-condensing |
||
Decode Zone |
|||
4 mils Code 39 |
70 ~ 180 mm |
||
5 mils Code 39 |
44 ~ 200 mm |
||
10 mils PDF 417 |
60 ~ 290 mm |
||
15 mils PDF 417 |
68 ~ 395 mm |
||
10 mils QR code |
55 ~ 190 mm |
||
15 mils QR code |
85 ~ 280 mm |
||
10 mils Data Matrix |
56 ~ 215 mm |
||
15 mils Data Matrix |
66 ~ 330 mm |
Products Model | Riotec iDC9507K series 2D (Motorola) Bluetooth barcode scanner |
---|---|
Barcode scanner | 1D scanner |
Manufacturer | Riotec |
