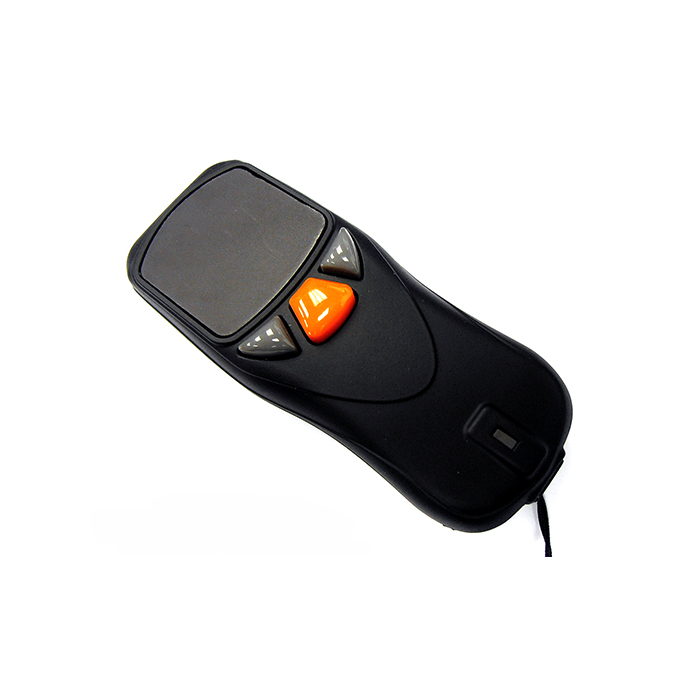

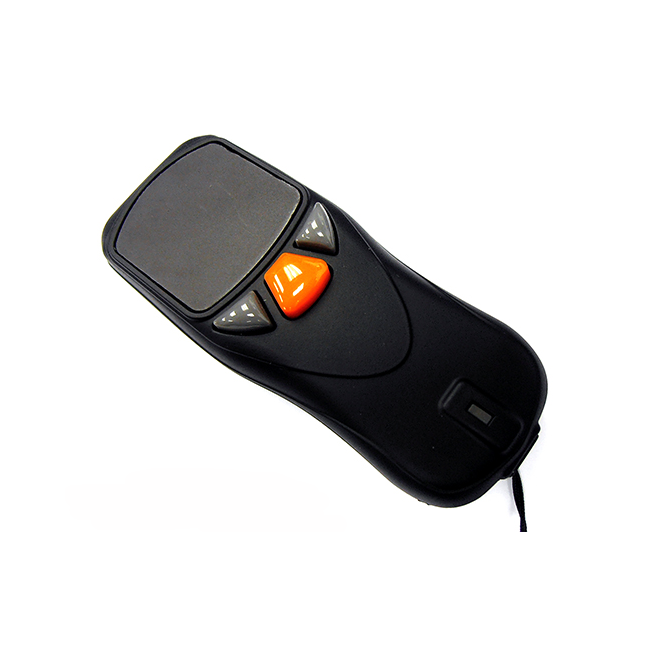

Riotec iDC9507J 2D Bluetooth barcode scanner

Riotec iDC9507J 2D Bluetooth barcode scanner


Product Name : iDC9507J series (2D)
Product Description

˙ Pocket-size design: 100 x 43 x 24.5mm
˙ iDC9507J can connect to Apple iOS, Android, and Windows devices
  through Wireless Class 1 communication.
˙ DC9507J with USB cable: plug and scan, becomes a wired scanner
˙ DC9507J without USB cable: saves the barcode data into memory
˙ Equipped with 1MB memory which can store more than 65,000 EAN13
  barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ With 1 scan key + 2 function keys
˙ Charging: via USB cable

Download datasheet : DM-_iDC9507J_DC9507J-2.pdf

Product Character

Pocket 2D barcode scanner

Features

˙ Pocket-size design: 100 x 43 x 24.5mm
˙ 2.4GHz wireless: Wireless Class 1 (iDC9507J)
˙ Supports Apple iOS, Android, and Windows devices
˙ Equipped with 1M memory  which can store more than 65,000 EAN13 barcodes
˙ Provides two operation modes: "data transmission" or "batch mode"
˙ When iDC950X series connect to iPhone/ iPad/ iPod Touch,
  its left button can raise & lower on-screen keyboard
˙ Charging: via USB cable

Scanner Specifications ：

Model Name



iDC9507J



Description



2.4 GHz Wireless Barcode Scanner



Engine



2D ENGINE

Performance Characteristics

Light Source



625±10 nm LED

Depth of Field



2D (15mils PDF417): 265 mm

Scan Speed



60 frame /sec

Best Resolution



1D (5mils) ： Code 39

Print Contrast



≧ 25%

Scan Angle



 Tilt: 360° / Pitch: ±55° / Skew ±55°

Indicators



LED & beeper

charge



Mini USB port

Symbologies



PDF417, Data Matrix, QR Code, Code 128, EAN-13, EAN-8,
Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN,
Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,
Industrial 2 of 5, Plessey, MSI-Plessey

Interface



-



Electrical Characteristics

Input voltage



5 VDC ± 0.5 V

Current - operating



400 mA

Radio Range

　

Wireless Class 1

-

RF Frequency

　

2.4GHz

-

Communication

　

HID profile, SPP profile

-

Battery Type

　

3.7V 800mAh Li-Ion battery

Scans per charge

　

more than 6,000 scans when fully charged

Charge Time

　

4 ~ 5 hours

Current Charging

　

500 mA Max.

Power cable



5V DC Mini USB cable

Memory capacity

　

1MB (can save 65,000 sets more EAN 13 barcode)

Physical Characteristics

Dimension (L*W*H)



100 X 43 X 24.5 mm

Weight



66 g +/- 4 g

User Environment

Temperature-operation



   0°C to 50°C

Temperature-storage



-10°C to 60°C

Humidity-operation



5% to 95% relative humidity, non-condensing

Decode Zone

10 mils Code 39



35mm ~ 205mm

13 mils EAN-13



50mm ~ 260mm

10 mils PDF417



50mm ~ 215mm

15 mils PDF417



60mm ~ 285mm

10 mils QR Code



55mm ~140mm

15 mils QR Code



50mm ~ 210mm

10 mils Data Matrix



50mm ~160mm

15 mils Data Matrix



50mm ~ 225mm
