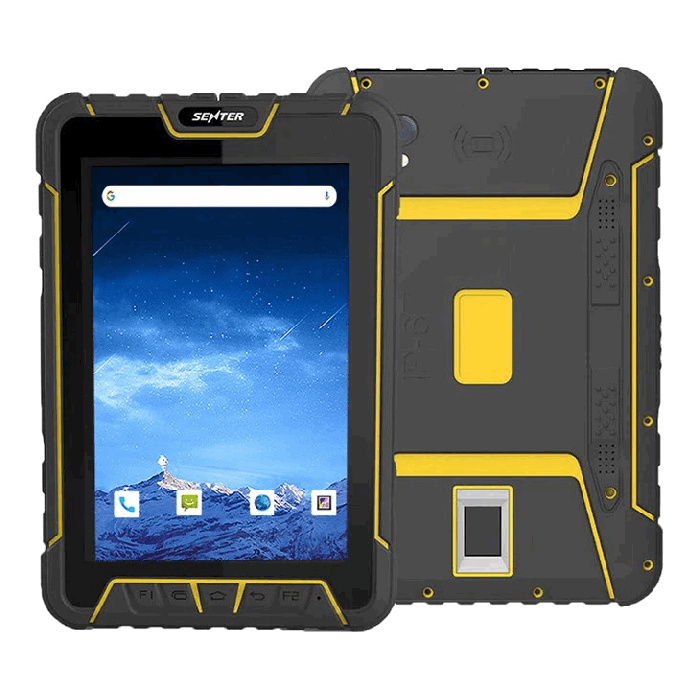

S917V12 7" Rugged Android 12 4G Industrial Tablet PC
S917V12 7" Rugged Android 12 4G Industrial Tablet PC
Looking for a reliable and durable tablet for industrial use? Check out the S917V12, a rugged 7" Android 12 tablet PC with 4G connectivity. It's built to withstand tough conditions and provide you with the performance you need to get the job done.
S917V12 7 inch Rugged Android Industrial Tablet Pc
Key features:
Android 12.0 system
Qualcomm QCM6125 Octa core CPU, 2.0GHz
RAM+ROM 4GB + 64GB Optional 6GB+128GB
Barcode scanning, RFID reader
IP67 1.2m Drop Resistance
Product Introduction
|
General Specification
|
||||
|
Display Screen
|
7 inch LCD screen,1280*800IPS screen,capacitive,touch screen
|
|||
|
Operating System
|
Android 12.0
|
|||
|
CPU
|
Qualcomm Octa core CPU, 2.0GHz,RAG 4G ROM 64G
Optional: RAM 6GB ROM 128GB
Micro SD maximum 256GB |
|||
|
USB port and OTG
|
Type C;support OTG(U-disk/Mouse/Keyboard/USB Etherent cable)Through OTG can meet 100M network port,network card setup,PPPoE
dial-up,web browsing.Support OTG extend RS232 serial port |
|||
|
External port
|
Charge port,headphone port, bottom pogopin
|
|||
|
Protection Grade
|
||||
|
Industrial Protection Grade
|
IP67
|
|||
|
Drop Grade
|
Drop resistance from 1.2m
|
|||
|
BT
|
5.0
|
|||
|
GPS
|
Support GPS,DBS,GLONASS and professional GPS,Ublox;GPS and Beidou(alternative)
|
|||
|
WIFI
|
IEEE 802.11b/g/n,2.4G and 5G
|
|||
|
2G/3G/4G
|
Band Version 1(North America version)
LTE-FDD:B2/B4/B5/B7/B12/B13/B14/B25/B26
LTE-TDD:B41
WCDMA:B1/B2/B5/B8
GSM:850/1900MHz
Band Version 2
(Europe,Middle East,Africa/South Korea/Thailand)
LTE-FDD:B2/B4/B5/B7/B8/B20/B28A
LTE-TDD:B38/B40/B41
WCDMA:B1/B2/B5/B8
GSM:850/900/1800/1900MHz
Band Version 3(China/India)
LTE-FDD:B1/B3/B5/B8
LTE-FDD:B34/B38/B39/B40/B41
WCDMA:B1/B8
TD-SCDMA:B34/B39
EVDO/CDMA:BC0
GSM:900/1800MHz
|
|||
|
Physical Parameters
|
||||
|
Camera
|
5MP front camera,13MP rear camera with automatic focus and lighting function,16MP is optional
|
|||
|
Keyboard
|
Android menu,Homepage,Return,Volume,Barcode,ON/OFF,Reset
|
|||
|
Headset
|
3.5mm audio Interface,has mike and telephone receiver
|
|||
|
LED indicator light
|
Support(ordinary filcker,Call fast flicker,missed call)three status bar
|
|||
|
Flashlight Function
|
Support,can be used for emergency lighting
|
|||
|
Gravity sensor
|
Support
|
|||
|
Vibrating motor
|
Support
|
|||
|
Compass
|
Support
|
|||
|
FM
|
Support
|
|||
|
Lithium Battery
|
3.7V,7200mAh
|
|||
|
Standby
|
Standby current less than 10mA
|
|||
|
Dimension
|
209*139*19mm
|
|||
|
Weight
|
590g
|
|||
|
Enviromental Characteristics
|
||||
|
Working Temperature
|
-0°C~+50°C
|
|||
|
Storage Temperature
|
-40°C~+60°C
|
|||
|
Humidity
|
5%-95%relative humidity;no condensation
|
|||
|
Optional function
|
||||
|
Barcode Scanning
|
Internal 1D Infrared Scanner: Zebra SE655
Scanning speed: 50 times/second
Scanning distance: 5.7cm-61.0cm
Scanning angle: 53.3° ±3
2D Barcode Scanner : Internal Honeywell N6603 2D laser
Identification ability: 1D, 2D, OCR
Scanning angle: rotate 360°, incline±50°, deflection ±50°
Field of View: Horizontal 36°, vertical 23°
Depth of field: 4cm-23.5cm
Environmental luminance: 0~100,000 LUX
|
|||
|
RFID
|
LF RFID: 134KHZ LF RFID or 125KHZ LF RFID
NFC (HF) RFID:
Working frequency: 13.56MHZ
Profile: Support ISO/IEC 15693, ISO/IEC 14443A profile
Support Cards: SR176, SRIX4K (TYPE-B), I- Code2, TI RFID label-it HF-I, EM4034, Mifare Classic ETC
Identification distance: not more than 5cm
|
|||
|
Fingerprint identification(Authentec)
|
Supports fingerprint entry, image collection, fingerprint recognition, fingerprint deletion etc.
Type: TCSIST
Sensor type: capacitive
Acquisition window size: 24.5*19mm
Effective image size:15.5*18.5mm
Image size: 256*360
Resolution: 500 DPI
contrast mode(1:1); search mode(1:N)
FIPS 201 compliant capability (TCS1)
|
|||
| Application |
Our industrial tablet can be used in mining, military and other fields:
|
● In the tasks of equipment maintenance, data collection, asset management in the mining industry, handheld terminals or tablets can work in this environment with good performance and other performances. Mining fieldworkers can use rugged handhelds to track equipment status using barcodes or RFID, or enter the device by quickly entering the device to improve work efficiency.
|
|
● The performance of the Senter industrial tablet has a drop-proof and low-temperature resistance and low-temperature resistance can be widely used in the military field. The scanning function of RFID and GPS can achieve the accuracy of personnel tracking in order to better formulate strategic formulation and provide a solid guarantee for combat operations. |
| Products Model | S917V12 7" Rugged Android 12 4G Industrial Tablet PC |
|---|---|
| Operating system | Android |
| Screen size | 7 inch |
| Manufacturer | Senter |
