RodinBell T-30 UHF RFID Sled Reader offers long-range 10m RFID scanning, Bluetooth 5.0 connectivity, IP64 protection, and a secure Android smartphone mount—perfect for inventory tracking, retail operations, logistics, and warehouse management.

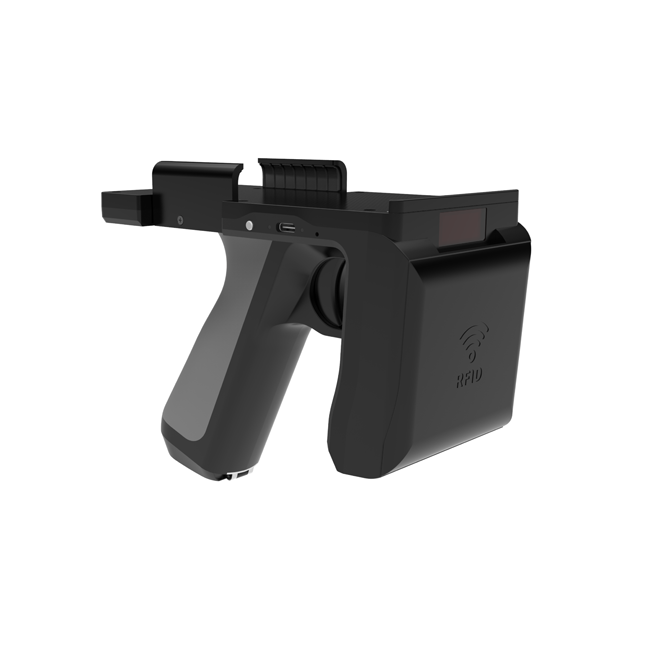

RodinBell T-30 UHF RFID Sled Reader – Bluetooth Handheld RFID Scanner for Android Devices
The RodinBell T-30 is a high-performance UHF RFID sled reader engineered for seamless integration with Android smartphones via Bluetooth 5.0. Powered by the Impinj RAIN RFID chip, it offers exceptional reading accuracy with a range of over 10 meters in open environments, making it ideal for retail, inventory management, warehousing, and logistics.
Its rugged body, made from CNC aluminum and PC+ABS (SABIC) materials, ensures excellent durability, heat dissipation, and electromagnetic shielding. The ergonomic handle with soft-grip material provides comfort during prolonged use, while the secure mechanical back clip ensures stable attachment to mobile devices.
Designed for tough environments, the T-30 is IP64-rated for dust and splash resistance and has a 1.2-meter drop tolerance, delivering reliable performance in challenging conditions. Its long-range connectivity and fast data transmission make it a versatile choice for mobile data capture in the field.
Specifications:
|
Mechanical parameters |
Materials Dimensions Weight |
Aviation Aluminum，PC+ABS 162*138*78mm 520g(battery included/standard version) |
|
System Characteristics |
Hotswapping Battery Buttons
Power USB Interface Buzzer Charge Indicator |
Pistol style hotswapping battery system Power:ALPS buttons/ Operating force 2.5N / Operating life 1 million cycles Scan Trigger:OMRON button/Operating force 1.27N/ Operating life 10 million cycles 6000mAh chargeable Ii-polymer battery USB2.0(Type-C)*1 Supported Bicolor LED （BT/Power） |
|
Wireless Communications |
Bluetooth 4.0 |
Bluetooth 4.2 |
|
Application Environment |
Operating Temp Storage Temp Humidity Protection Grade Safety Drop Height |
-20℃~+60℃ -30℃~+70℃ 5%RH~95%RH(non -condensing) IP64 1.2m / 5.25ft |
|
Data Collections |
Barcode Optional Engine 1D Barcode
2D Barcode
UHF RFID Engine Protocol Frequency Output Power Peak Inventory Speed UHF Antenna Read Distance Supported Regions
|
NLS EM3396 UPC/EA Symbol SE955N/Code128/Code39/Code93/Code11/ Interleaved 2 of 5/Discrete 2 of 5/Chinese 2 of 5/Codabar/ MSI/RSS.etc. Data Matrix/QR Code/Aztec Code/PDF417/US Planet/ UK Postal etc.
Rodinbell M-2670Air/ based on Impinj Indy R2000 EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/6B 902~928MHz, 865~868MHzOptional 0~33dbm ＞500pcs/s 4dBi air dielectric antenna ＞12m China, Korea, Malaysia, Japan US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 |
|
Accessories |
Battery, Charger, USB data cable， Hanging Lace Desktop charger(charge two batteries), Optional |
|
| Products Model | T-30 UHF RFID Sled Reader |
|---|---|
| RFID reader | UHF RFID |
| Device type | Pistol grip |
| Manufacturer | Rodinbell |
